Door System - Rear: Latch: Removal
- Close door glass.
- Remove door trim panel. (Refer to REMOVAL
)
- Remove rear glass channel.
- Disconnect lock button link from door latch.
- Disconnect outside door handle link from door latch.

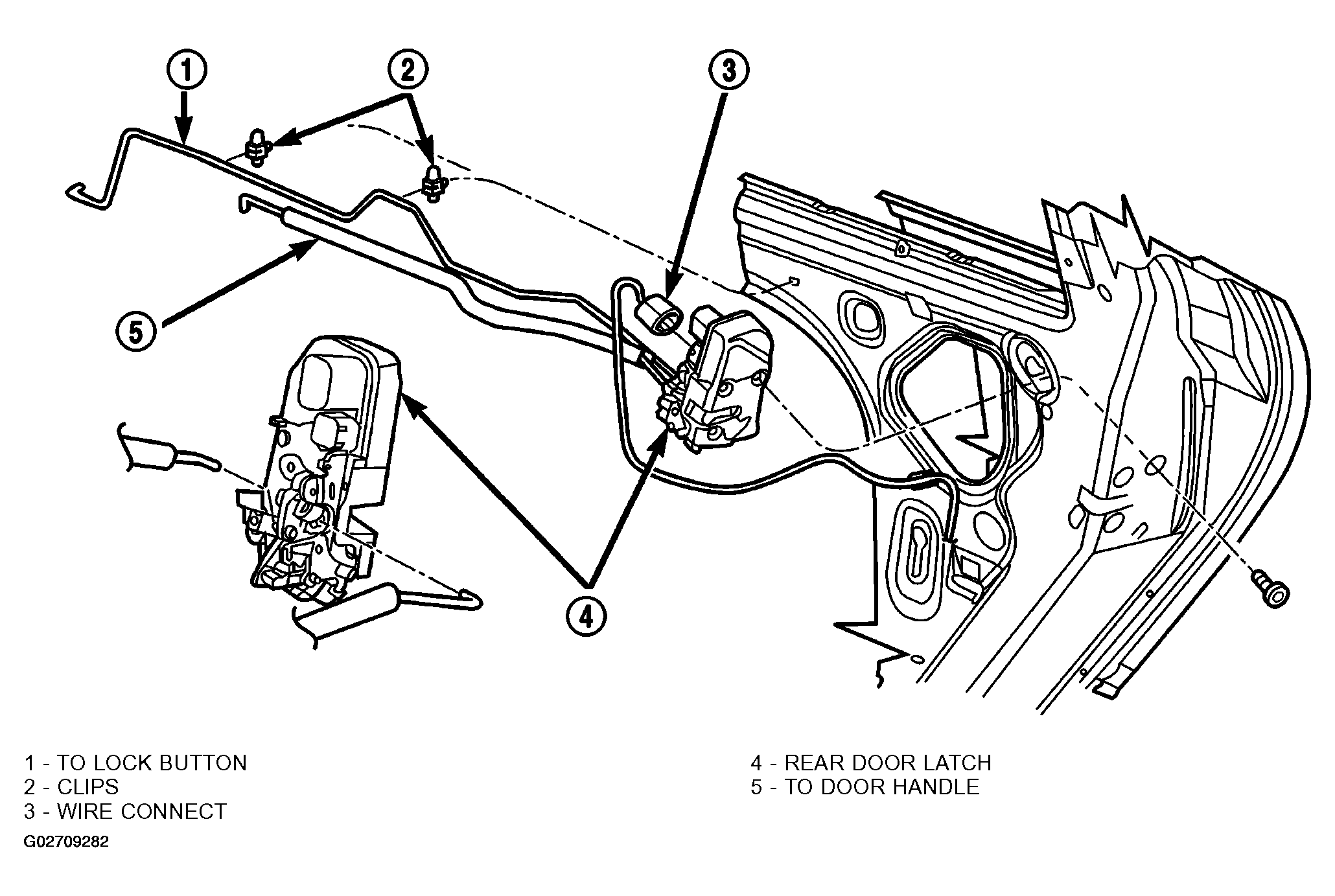

- Remove screws attaching door latch to door end frame (Fig 1
).
- Remove latch from door.
Courtesy of DAIMLERCHRYSLER CORP.
