Audio System - Premium 2 Infinity II: Notes

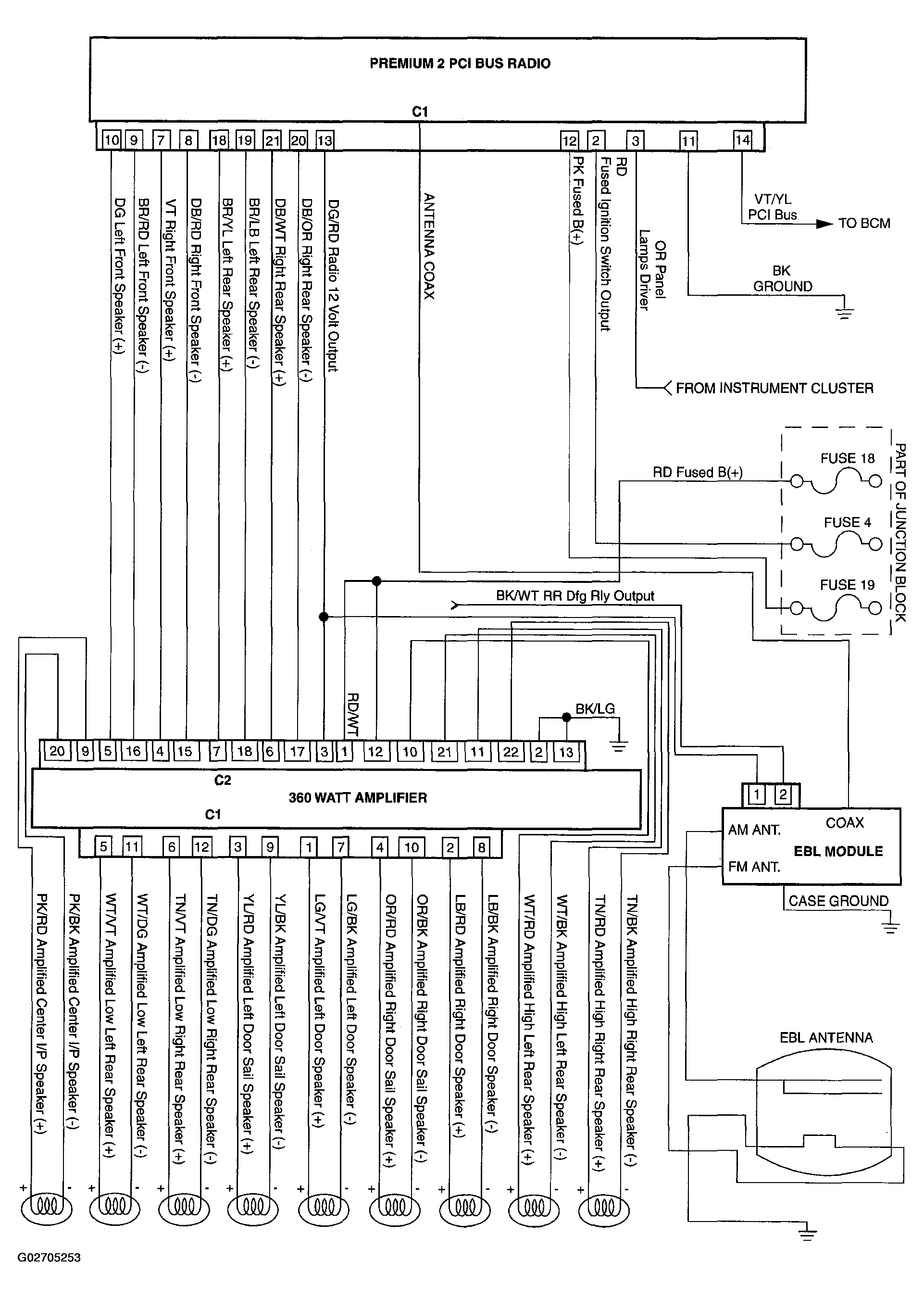

Fig 1: Schematic Diagrams - Audio System - Premium 2 Infinity II

G02705253

Courtesy of DAIMLERCHRYSLER CORP.
