Memory Set Switch Connector End View

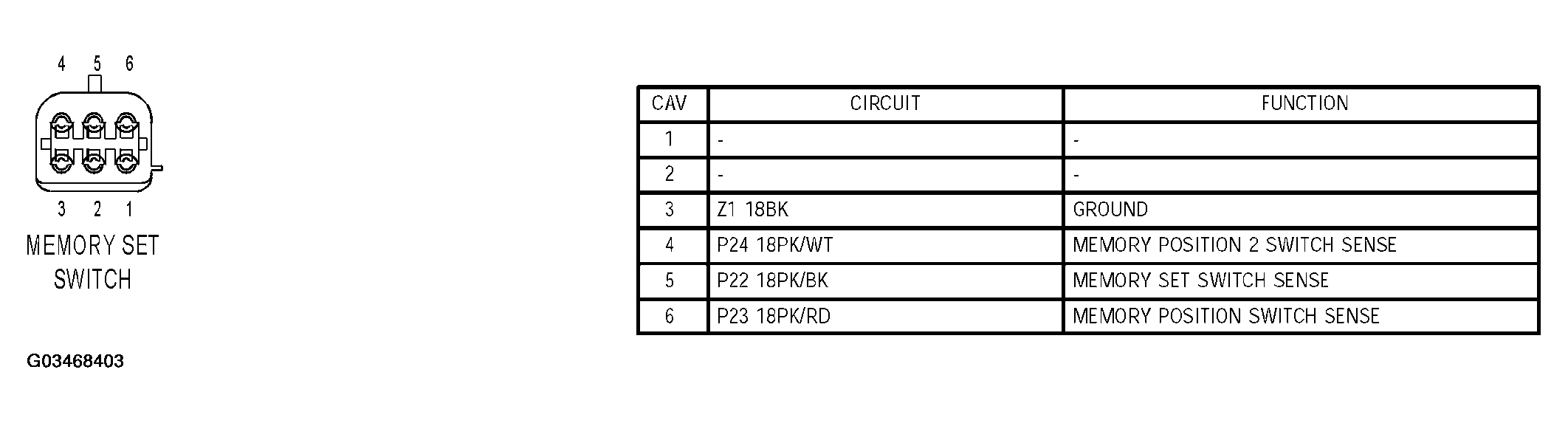

Fig 1: Memory Set Switch Connector End View

G03468403

Courtesy of DAIMLERCHRYSLER CORP.
