Blower Motor Power Module (Automatic Temperature Control) Connector End View

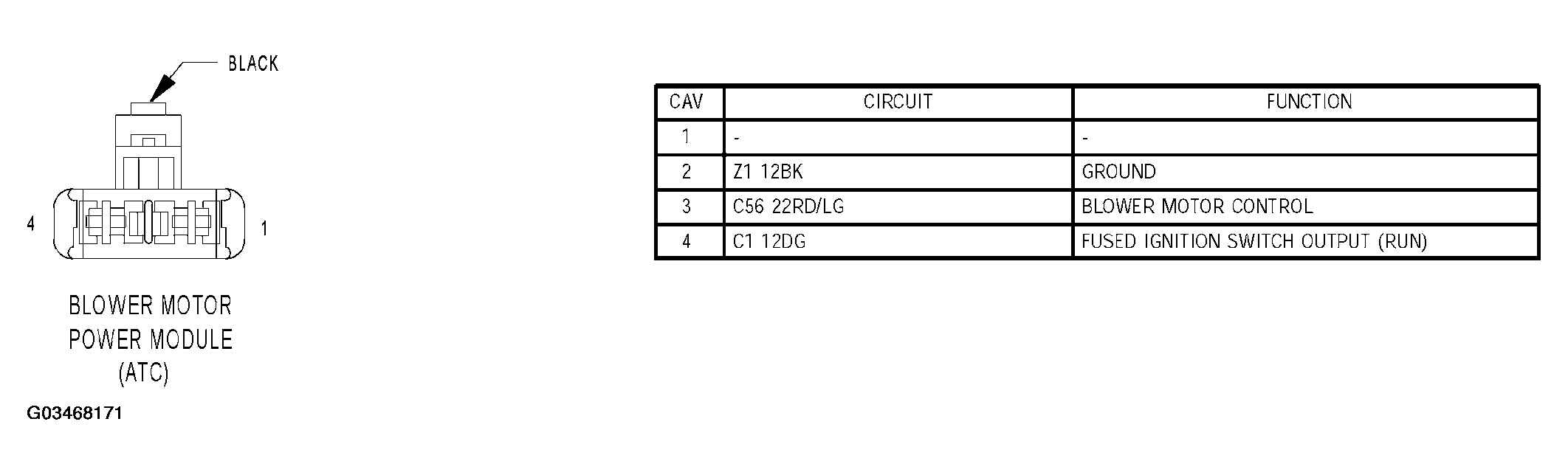

Fig 1: Blower Motor Power Module (Automatic Temperature Control) Connector End View

G03468171

Courtesy of DAIMLERCHRYSLER CORP.
