Sentry Key Immobilizer Module Harness Connector End View

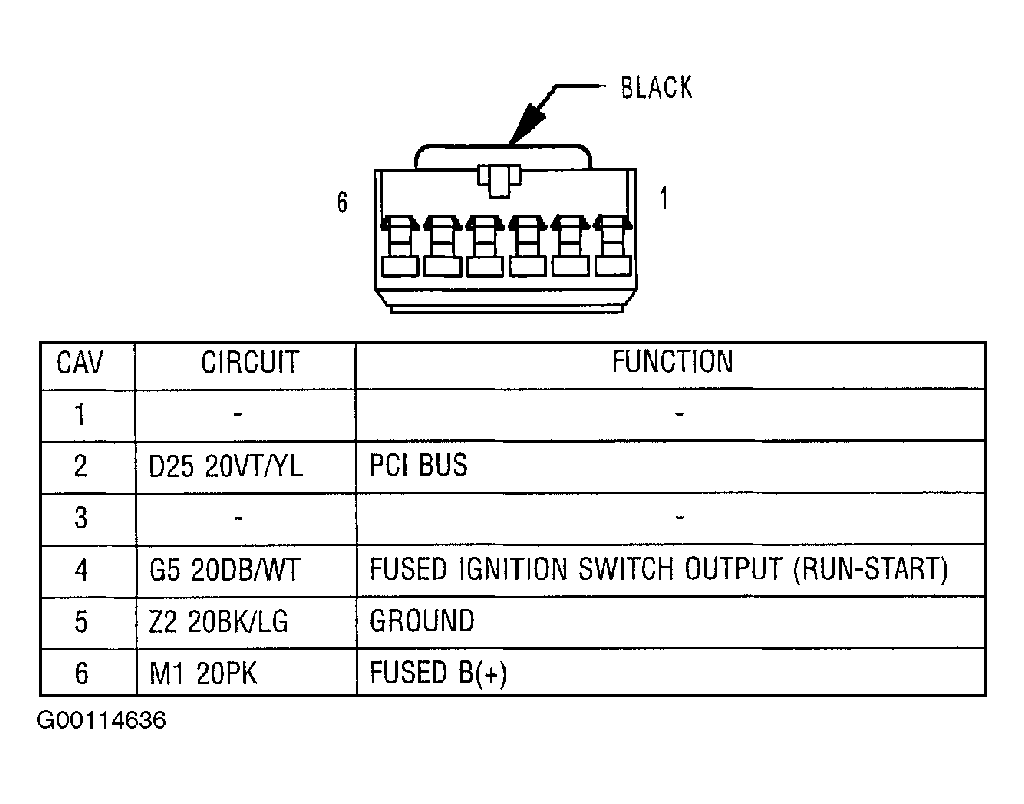

Fig 1: Identifying Sentry Key Immobilizer Module Harness Connector

G00114636

Courtesy of DAIMLERCHRYSLER CORPORATION
