Fuel Injector: Notes

The injectors are positioned in the cylinder heads with the nozzle ends directly above the intake valve port. See Fig 1.

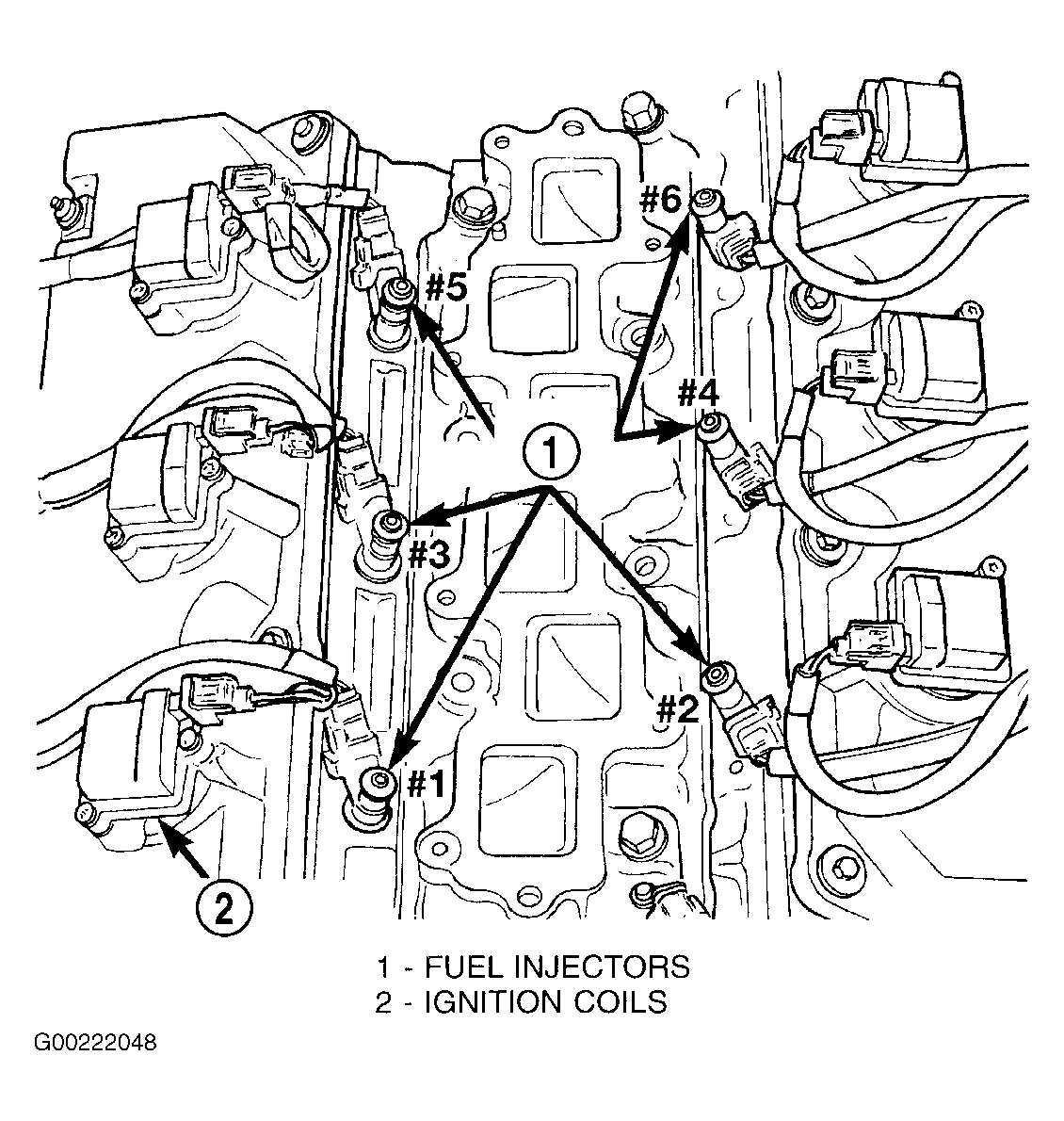

Fig 1: Locating Fuel Injectors
G00222048Courtesy of CHRYSLER CORP.
