Home >> Chrysler >> 2003 >> Intrepid ES, 3.5 M >> Repair and Diagnosis >> Steering >> Steering Control Systems >> Body Diagnostic Procedures >> Schematic Diagram >> OTIS

Schematic Diagram: OTIS

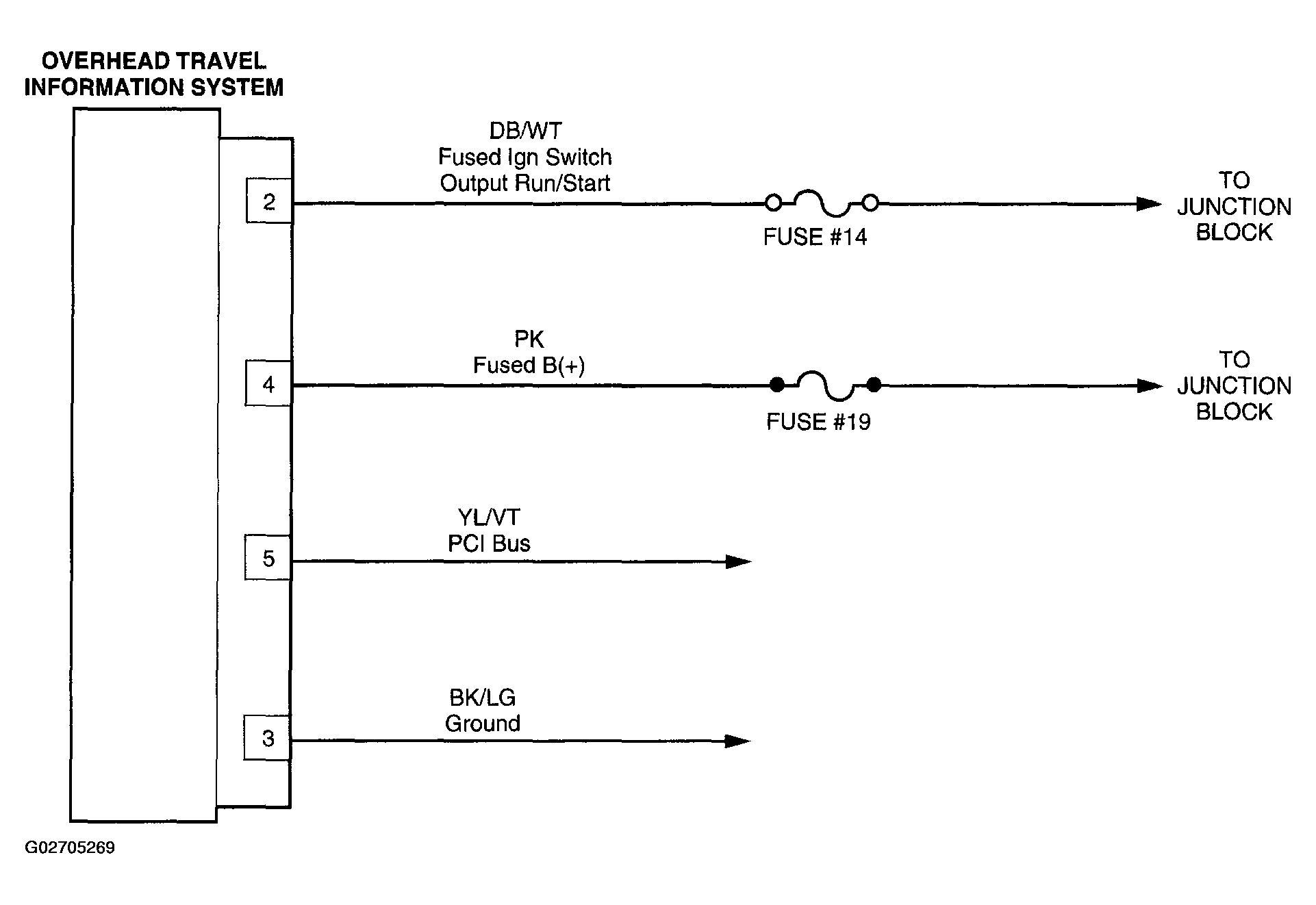

Fig 1: Schematic Diagrams - OTIS

G02705269

Courtesy of DAIMLERCHRYSLER CORP.
