Instrument Cluster

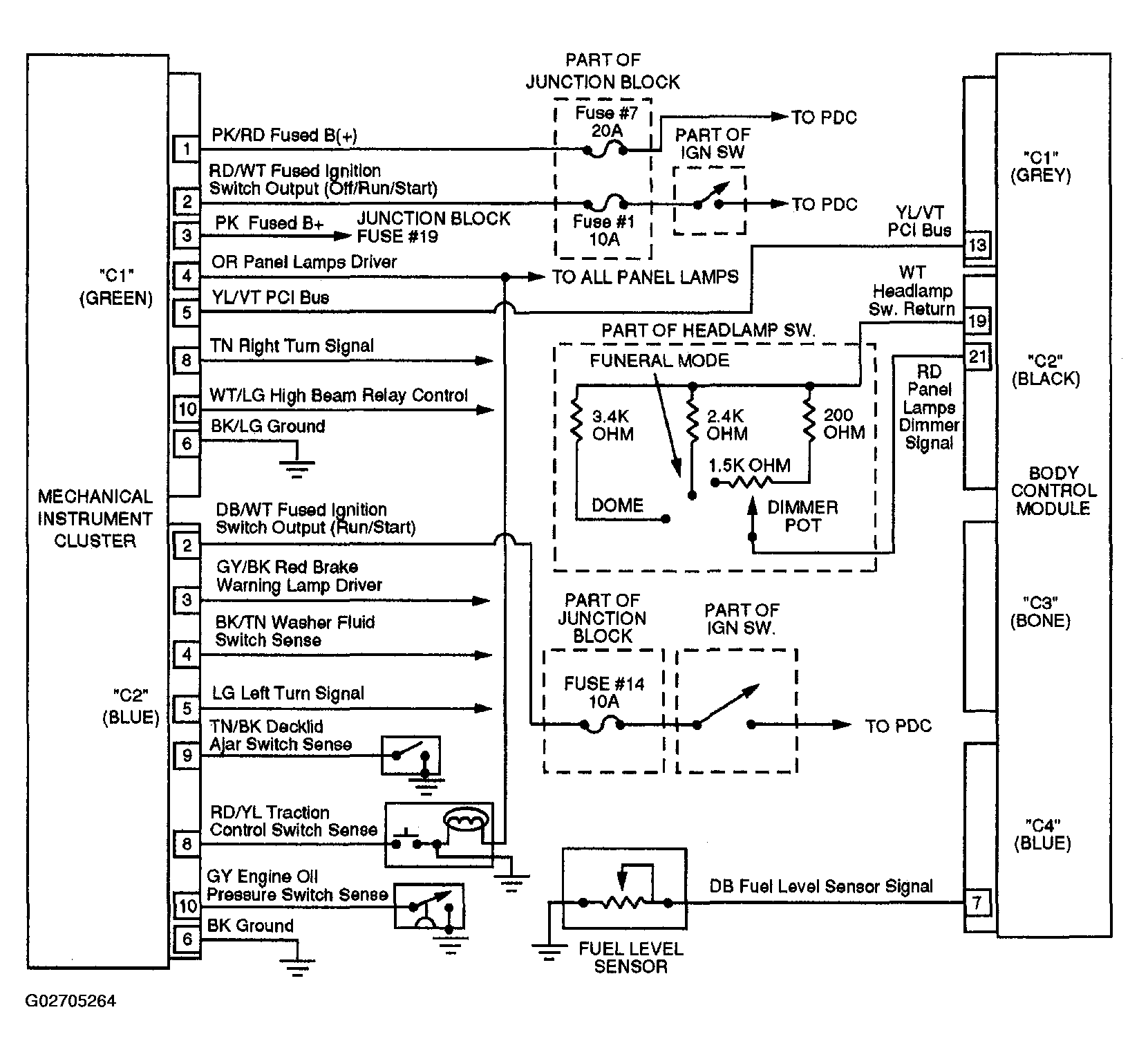

Fig 1: Schematic Diagrams - Instrument Cluster (1 Of 2)

G02705264

Courtesy of DAIMLERCHRYSLER CORP.

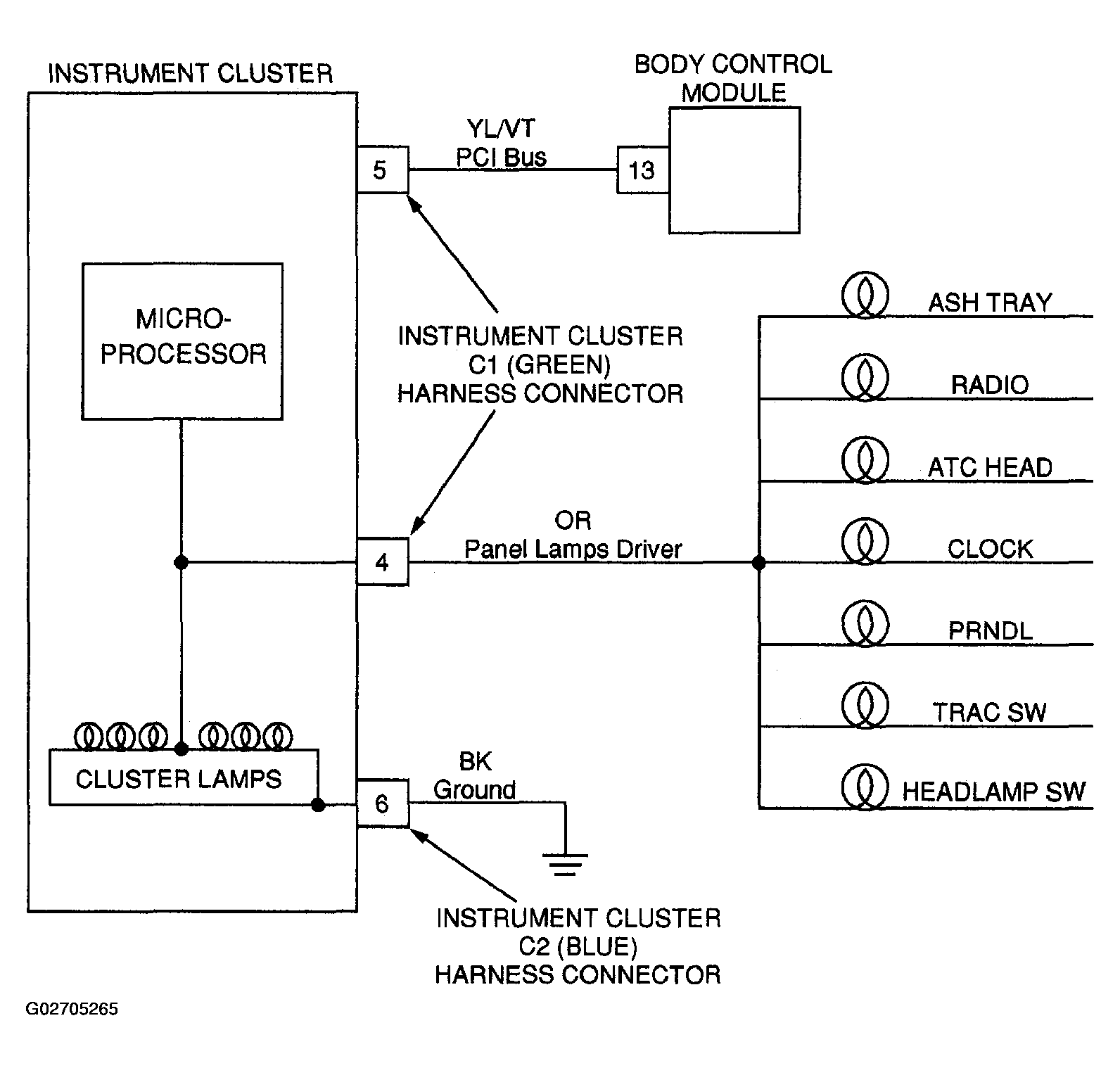

Fig 2: Schematic Diagrams - Instrument Cluster (2 Of 2)

G02705265

Courtesy of DAIMLERCHRYSLER CORP.
