Heating And A/C: Actuators

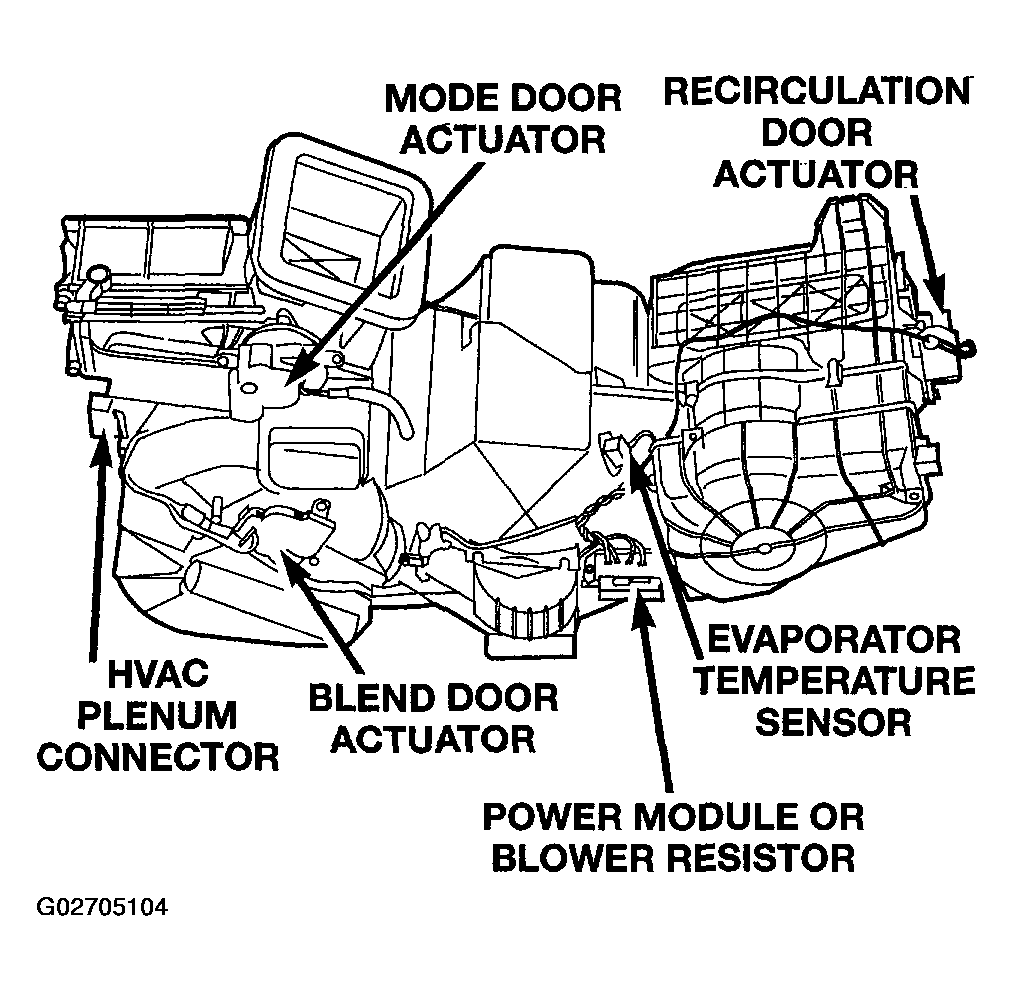

Fig 1: Identifying Heating And A/C Actuators

G02705104

Courtesy of DAIMLERCHRYSLER CORP.
