Body Side Inline Connector End View (C304)

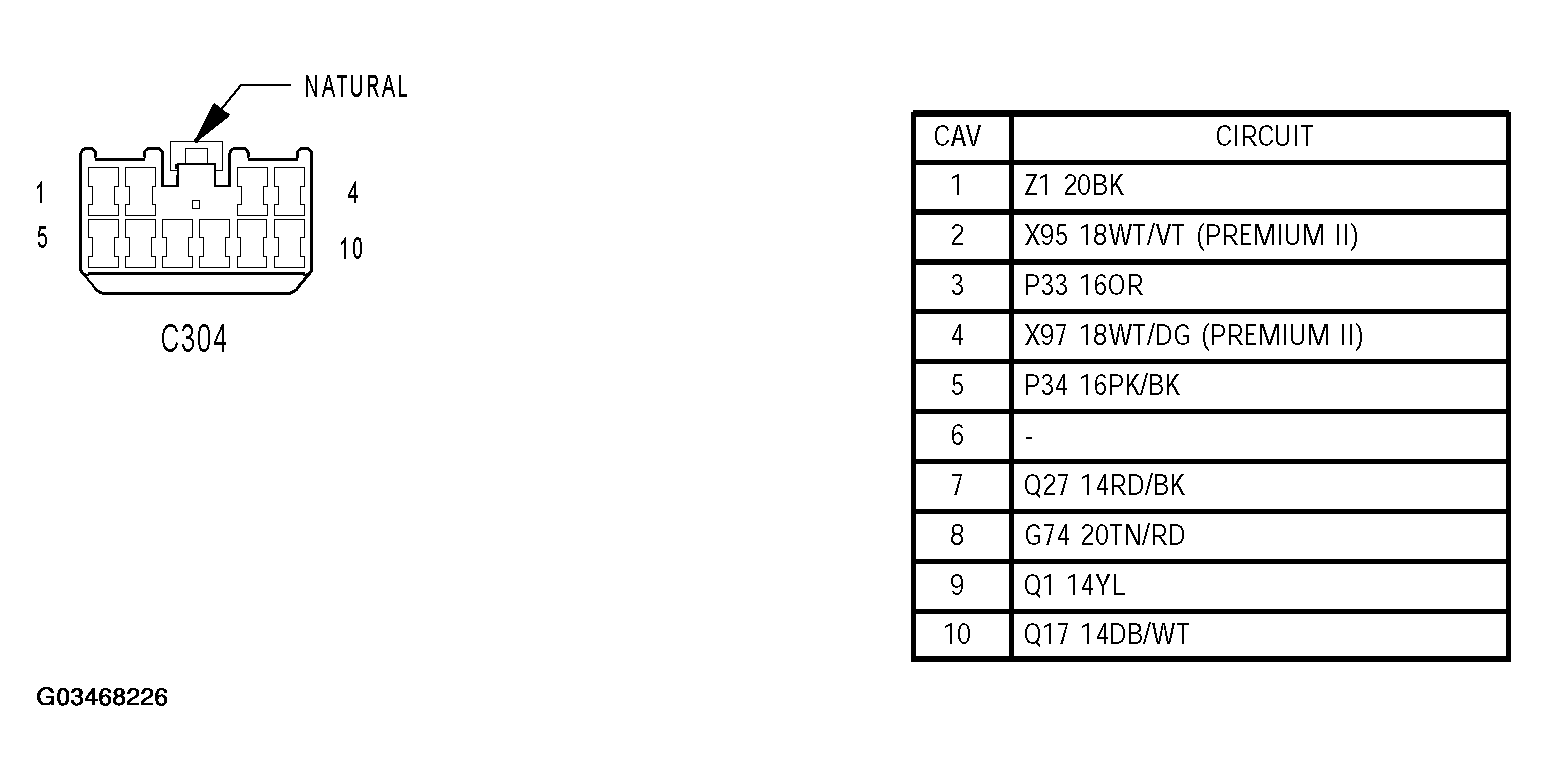

Fig 1: Body Side Inline Connector End View (C304)

G03468226

Courtesy of DAIMLERCHRYSLER CORP.
