Transmission Oil Cooler: Operation

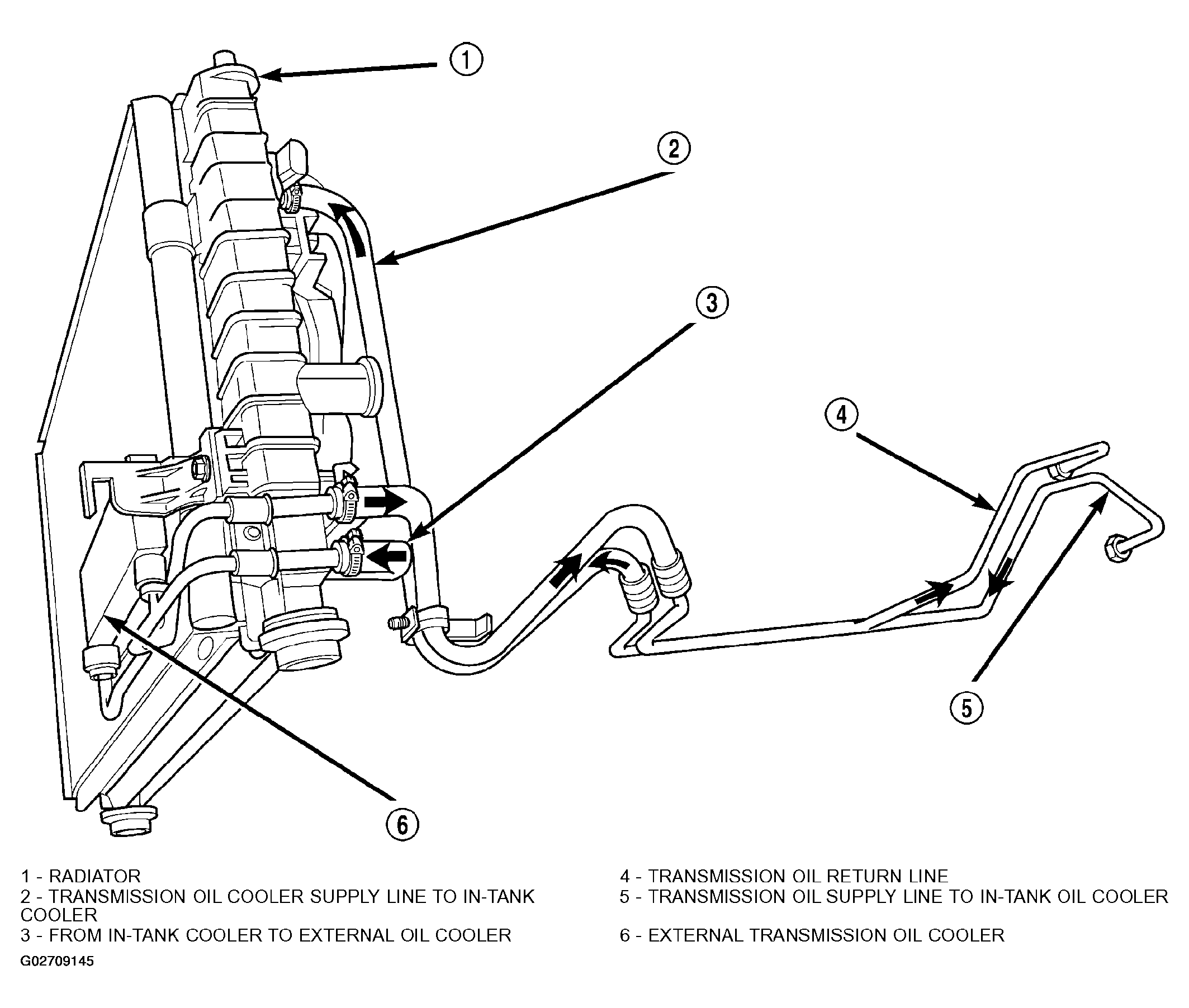

Transmission oil is supplied to the internal (intank) transmission cooler (Fig 1
). The oil is then routed to the external cooler mounted to the front side of the A/C condenser. Oil is then returned to the transmission from the external oil cooler (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
