Speed Control Switch (Left) Harness Connector End View

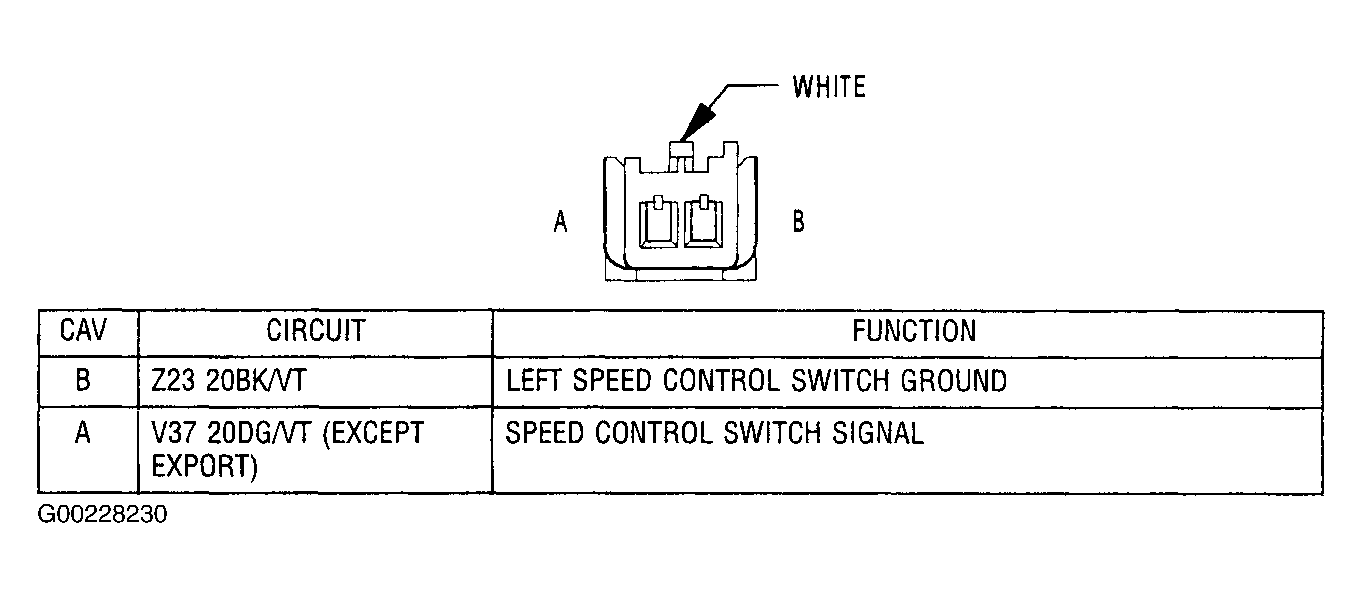

Fig 1: Speed Control Switch (Left) Harness Connector End View

G00228230

Courtesy of CHRYSLER GROUP, LLC
