Multi-Function Switch - Black 4 Way Connector End View
Multi-Function Switch - Black 4 Way Connector End View

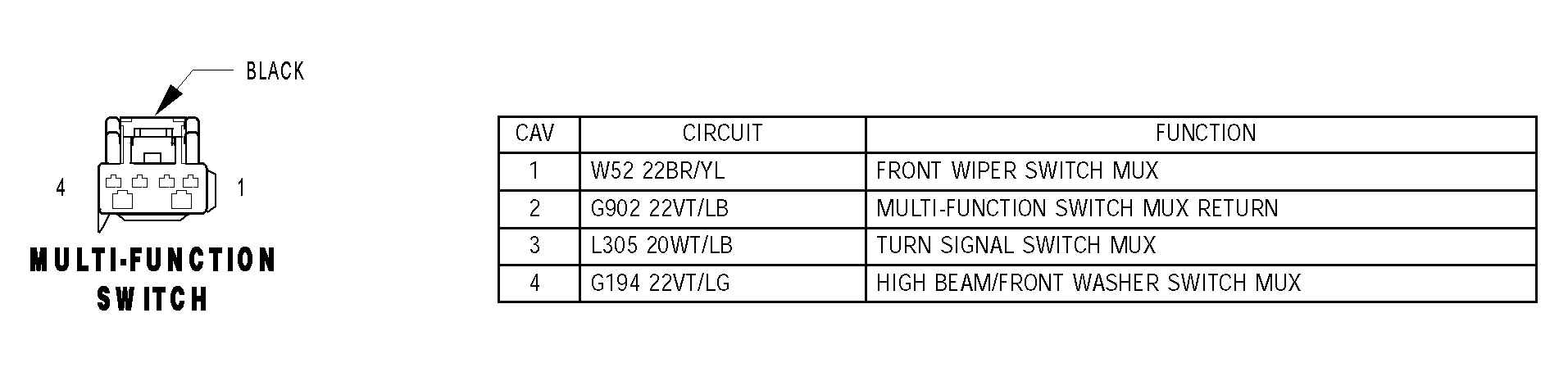

Fig 1: Multi-Function Switch - Black 4 Way Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
