Input Speed Sensor - Gray 2 Way Connector End View

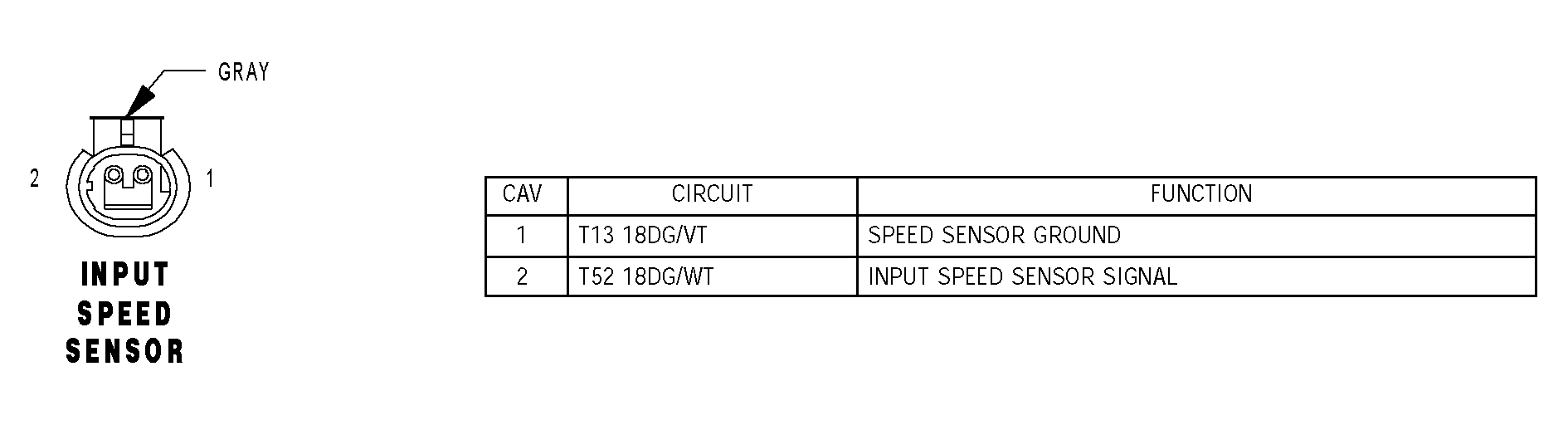

Fig 1: Input Speed Sensor - Gray 2 Way Connector End View

G04549644

Courtesy of CHRYSLER GROUP, LLC
