Rear Driveline Module: Installation
- Install rear driveline module assembly to transmission jack and secure.

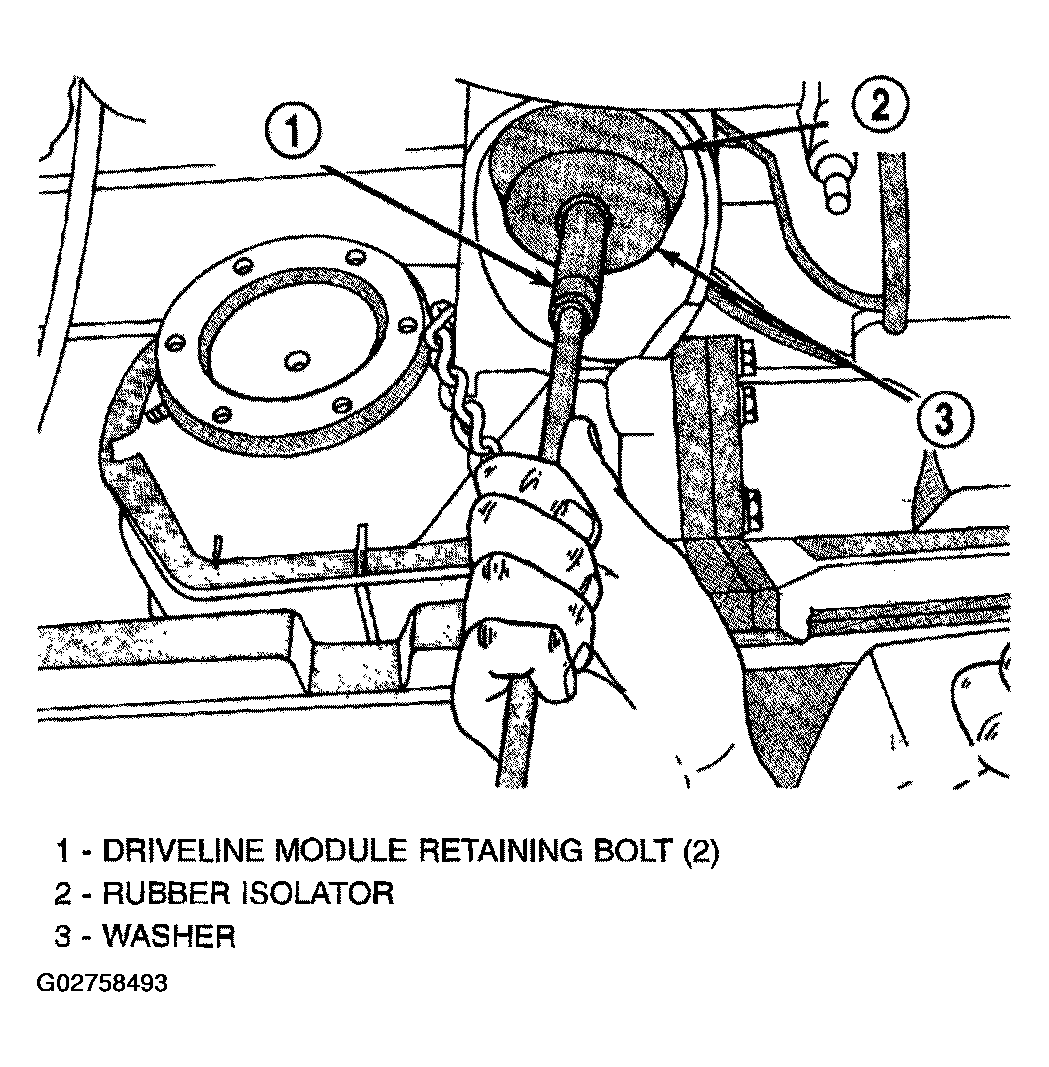

- Raise rear driveline module into position and install and torque mounting bolts (Fig 1
) to 54 N.m (40 ft. lbs.).
Courtesy of DAIMLERCHRYSLER CORP.
- Remove transmission jack.
- Install and torque arm mount-to-body bolts to 54 N.m (40 ft. lbs.).

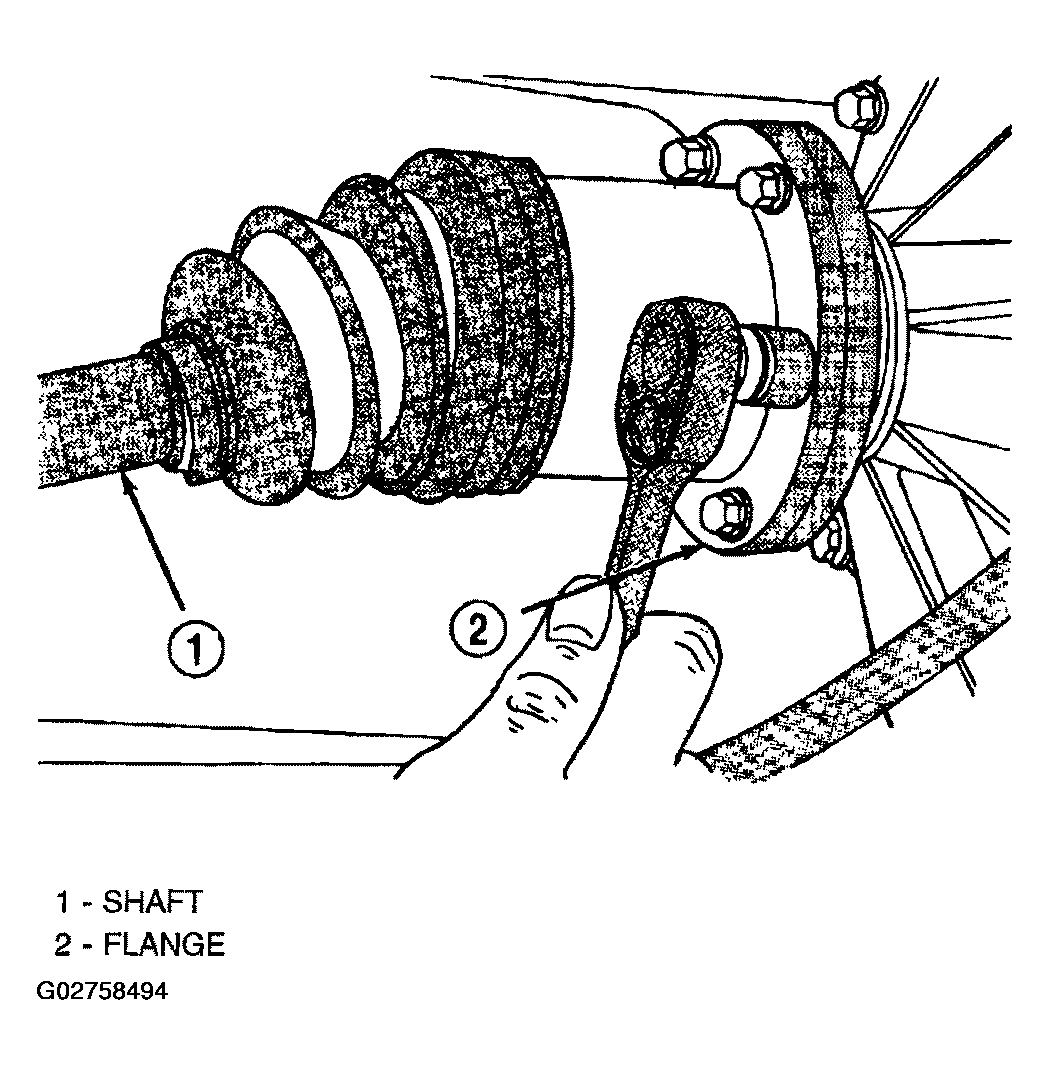

- Install halfshafts to differential output flanges and torque bolts (Fig 2
) to 61 N.m (45 ft. lbs.).
Courtesy of DAIMLERCHRYSLER CORP.
- Install propeller shaft. (Refer to
PROPELLER SHAFT - INSTALLATION
).
- Lower vehicle.
