COMPONENT LOCATION
| Component | Location |
|---|---|

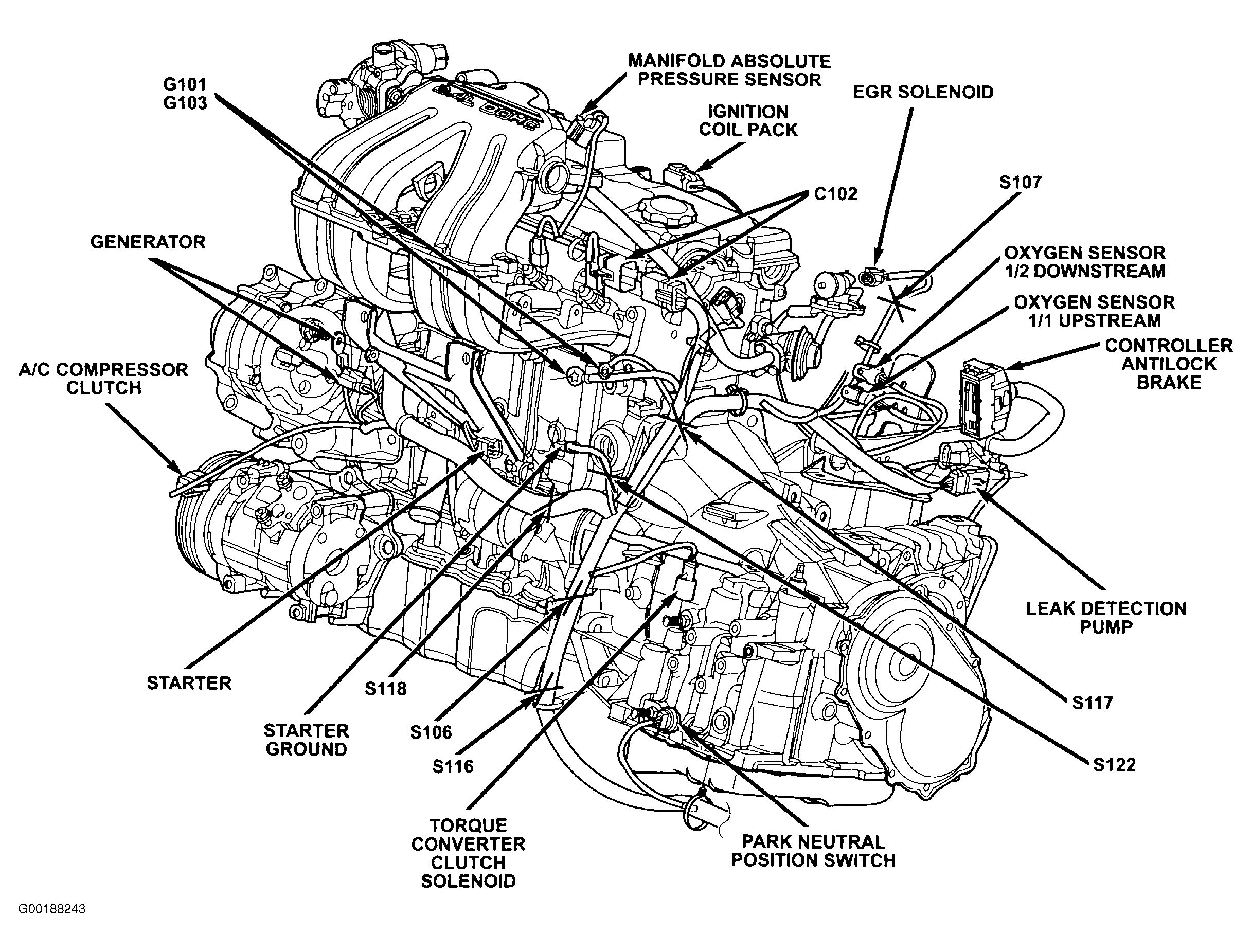

| A/C Compressor Clutch | Front Of Compressor |

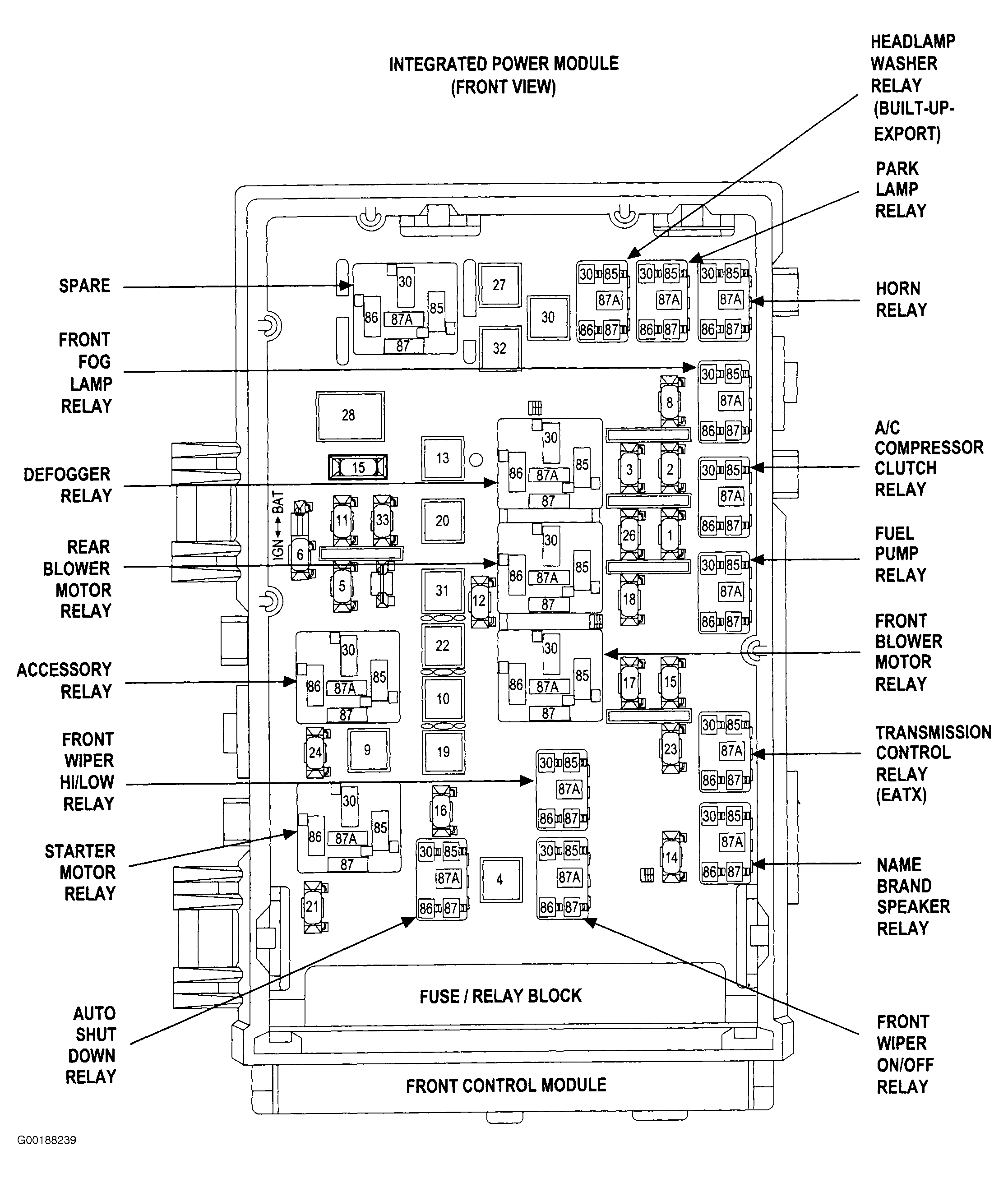

| A/C Compressor Clutch Relay | In Integrated Power Module |

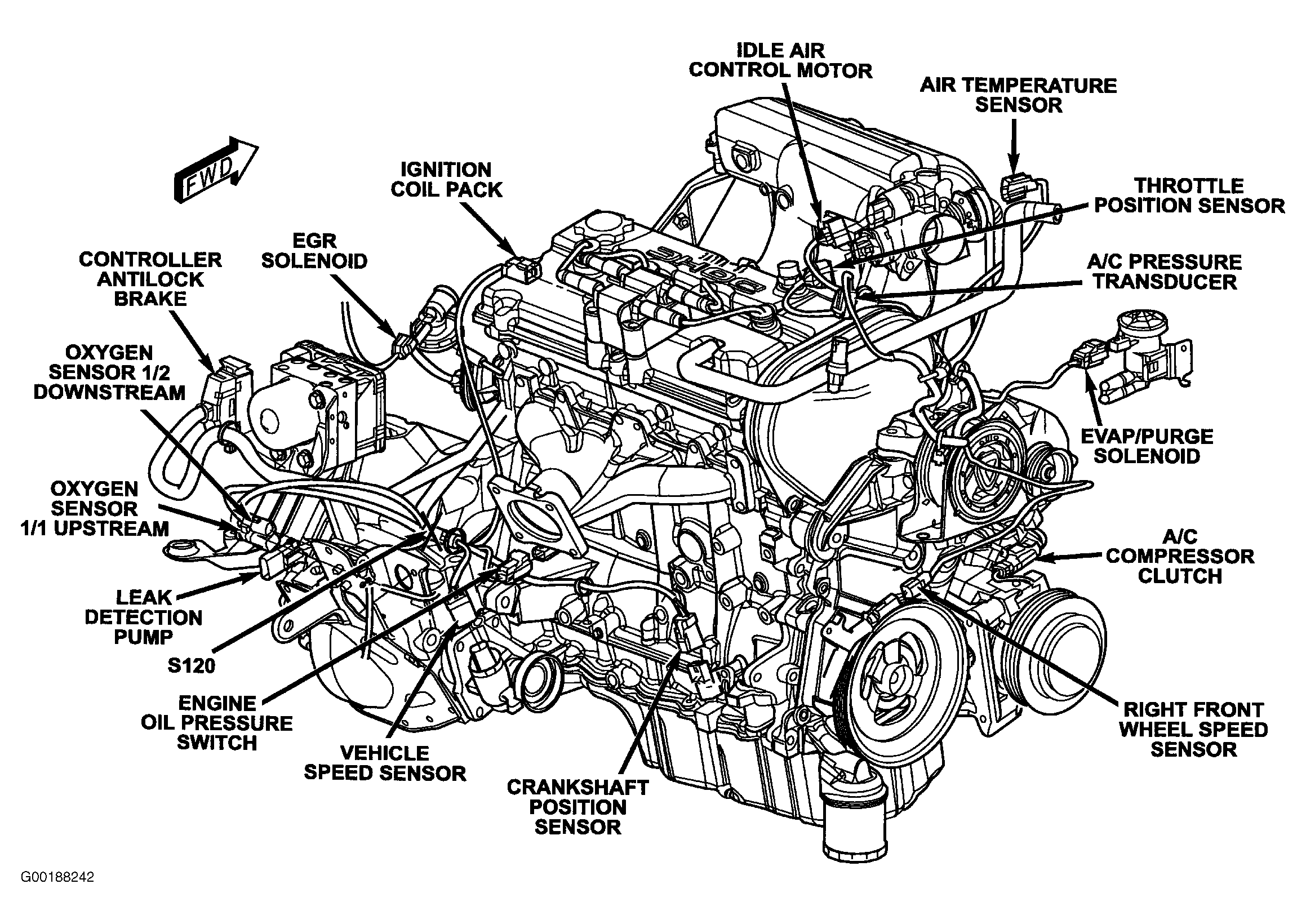

| A/C Pressure Transducer | On The Refrigerant Liquid Line Between The Filter/Drier & Expansion Valves |
| ATC Remote Sensor | Above ATC Control |
| Auto Temperature Control | Rear Of Control Panel |

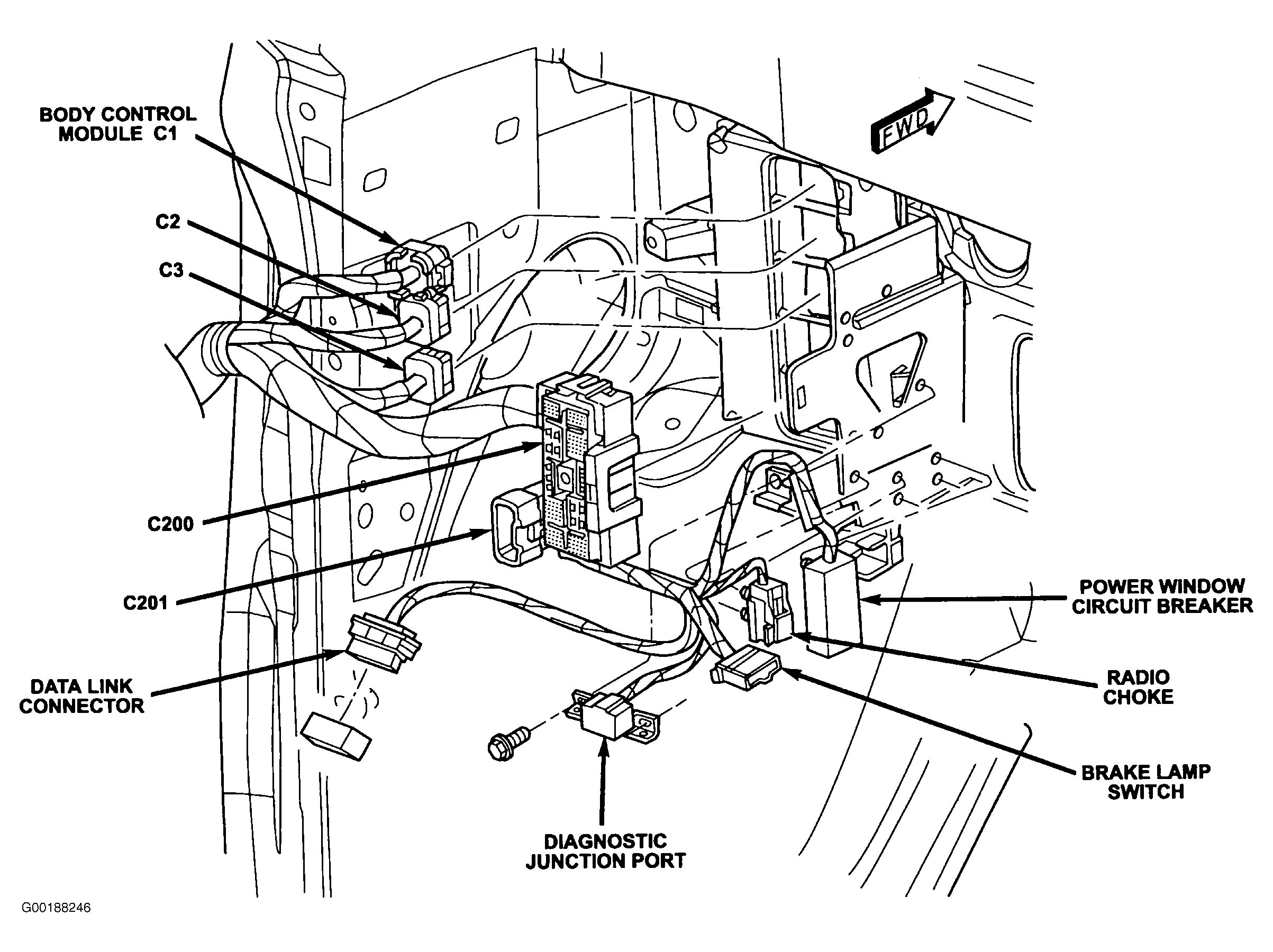

| Body Control Module | Under Left Instrument Panel |
| Diagnostic Junction Port | Lower Instrument Panel Near Steering |
| Driver Blend Door Actuator | On HVAC Module |
| Evaporator Temperature Sensor | Right Side Of HVAC Module |
| Front Blower Motor | Passenger Side Of HVAC Module |
| Front Blower Motor Relay | In Integrated Power Module |
| Front Blower Motor Resistor | Right Side Of HVAC Module |
| Fuse 10 | In Integrated Power Module |
| Fuse 12 | In Integrated Power Module |
| Fuse 14 | In Integrated Power Module |
| Fuse 16 | In Integrated Power Module |
| Fuse 18 | In Integrated Power Module |
| Fuse 27 | In Integrated Power Module |
| G102 | Left Head Lamp Area |
| G103 | Above Starter |

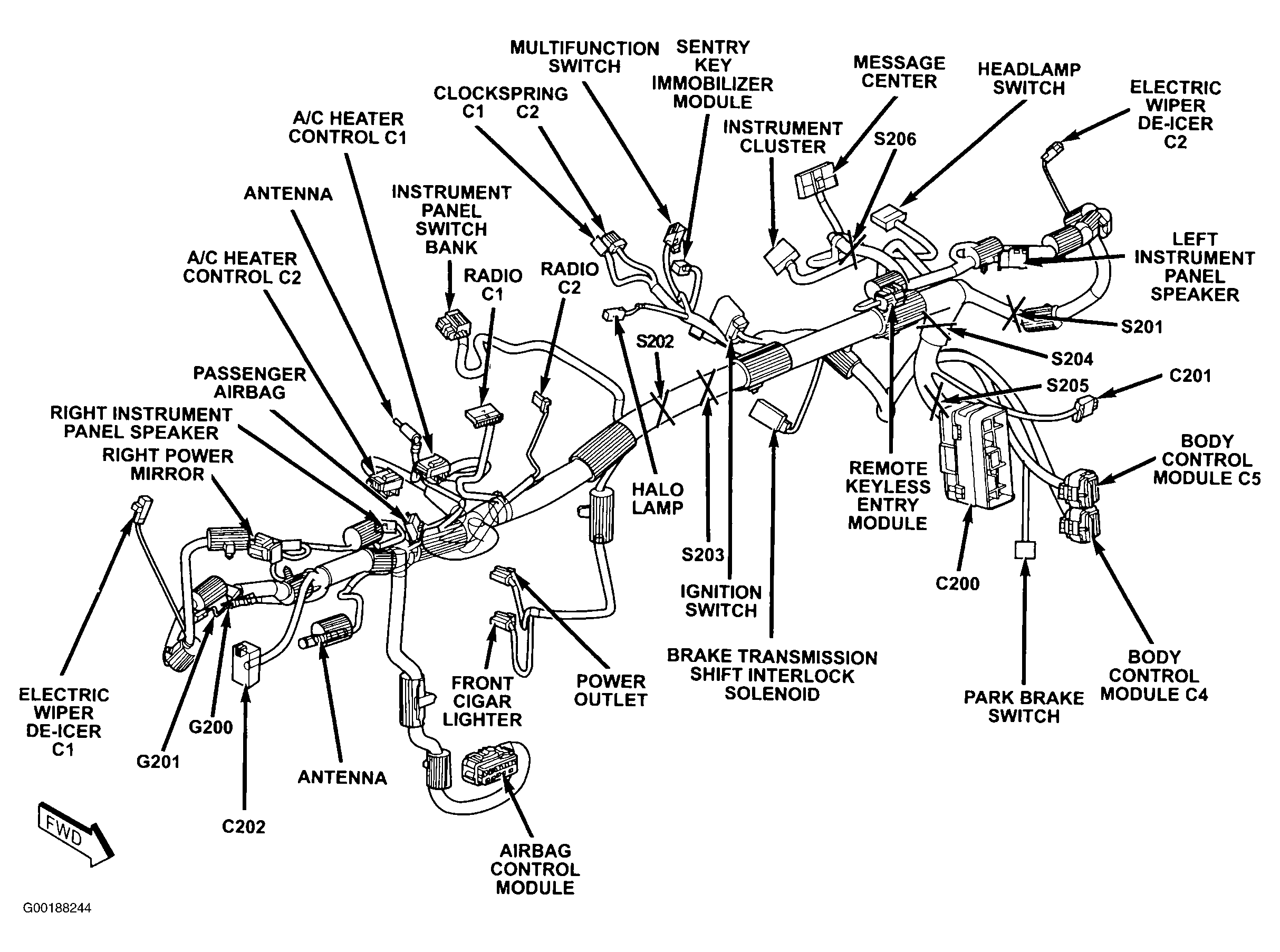

| G200 | Right Side Of Instrument Panel |

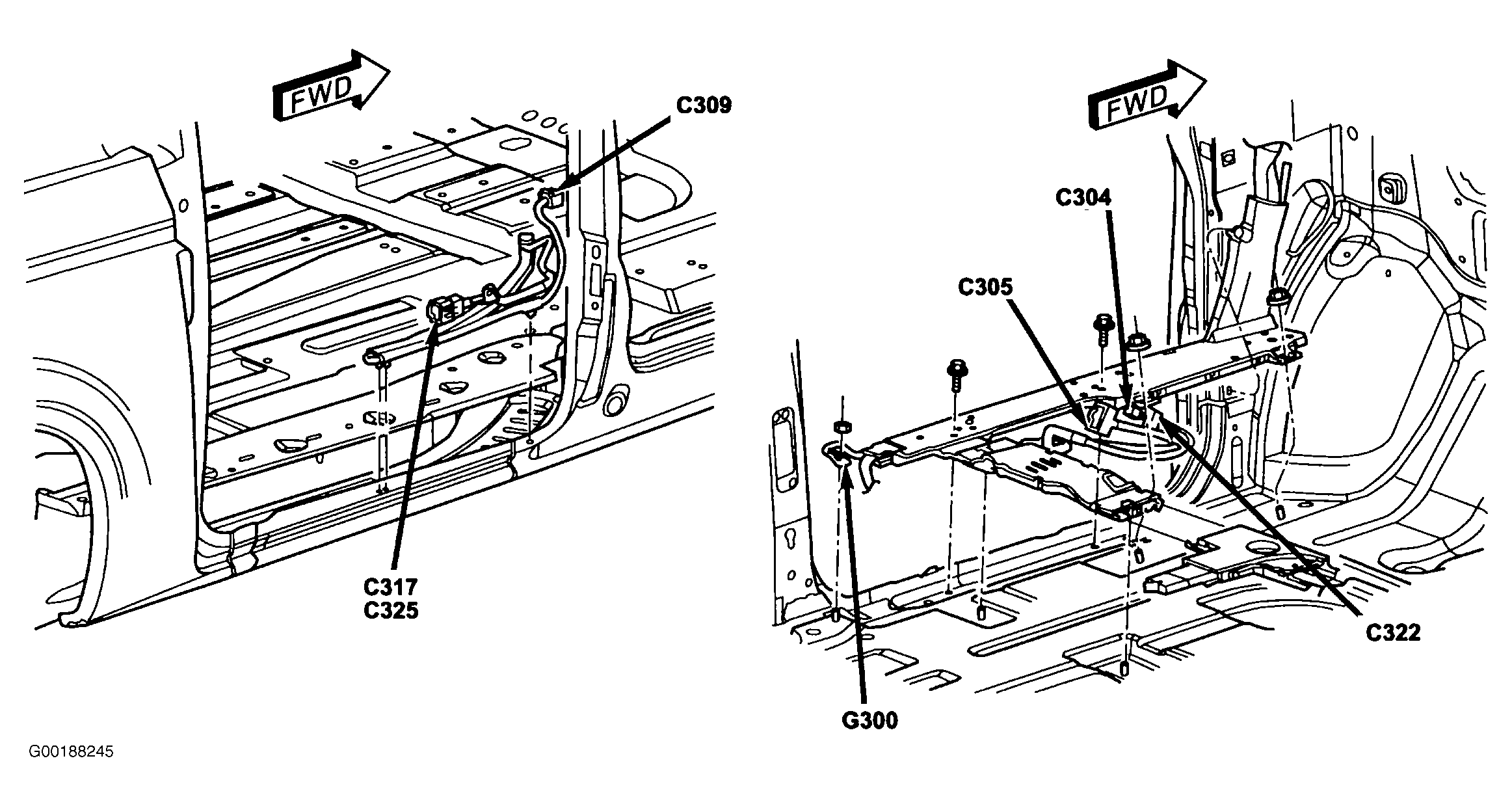

| G300 | Left B Pillar |
| G302 | Left Rear Quarter |

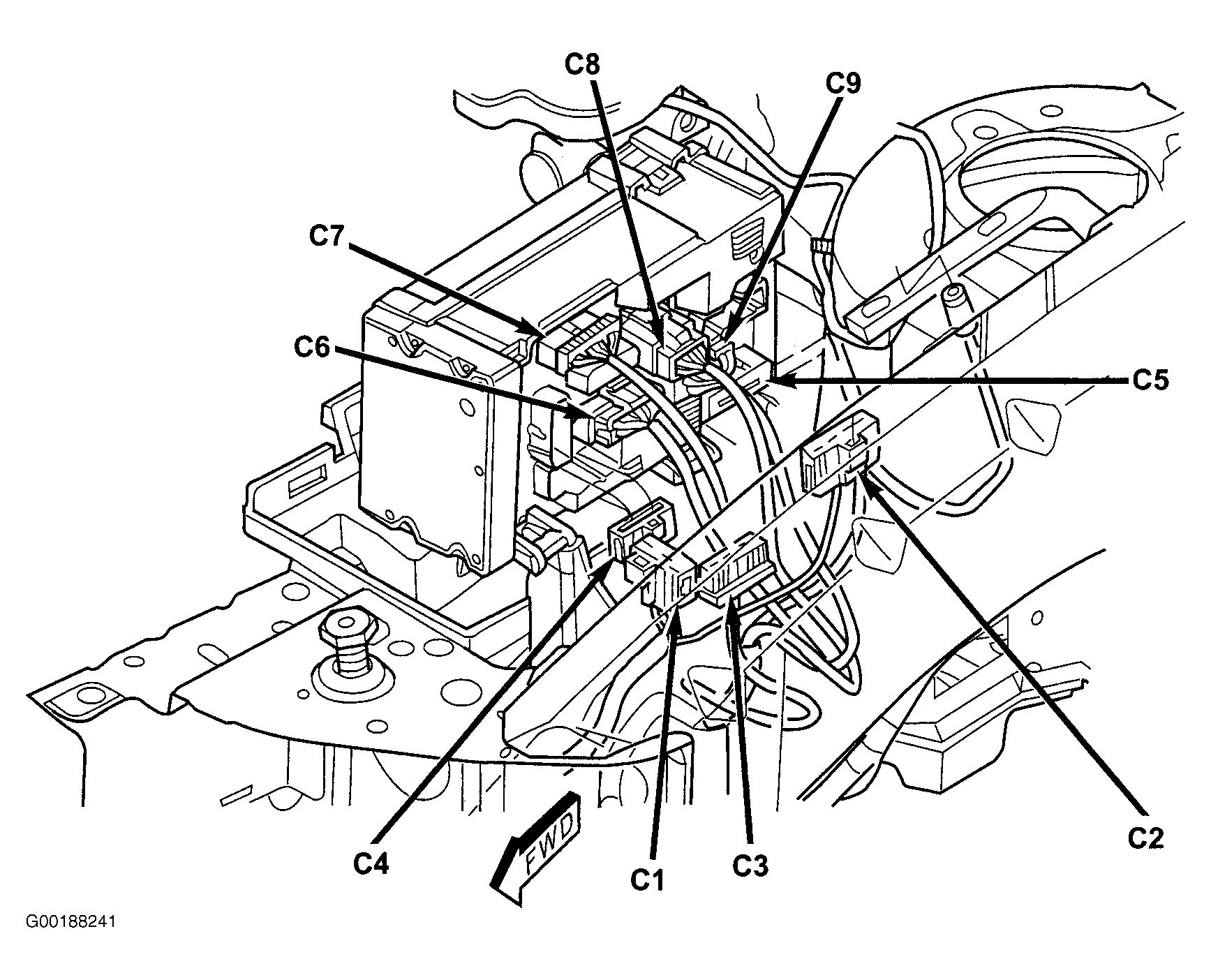

| Integrated Power Module | Left Fender Shield |
| Mode Door Actuator | Left Side Of HVAC Module |
| Passenger Blend Door Actuator | On HVAC Module |
| Powertrain Control Module | Left Fender Side Shield |

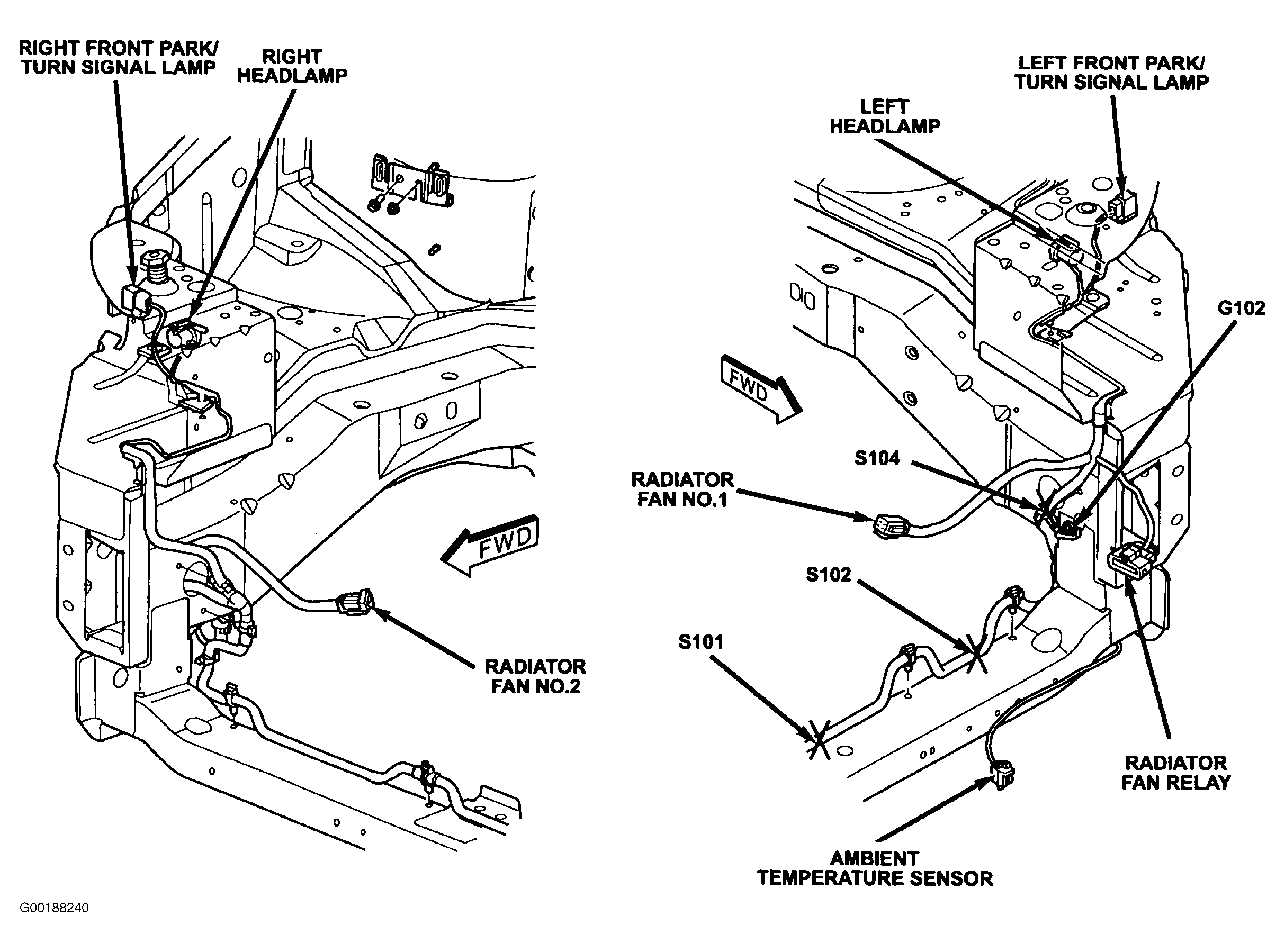

| Radiator Fan No. 1 | Left Side Of Engine |
| Radiator Fan No. 2 | Right Side Of Engine |
| Radiator Fan Relay | Top Of Left Front Frame Rail |
| Rear Auto Temperature Control Switch | Rear Of Switch |

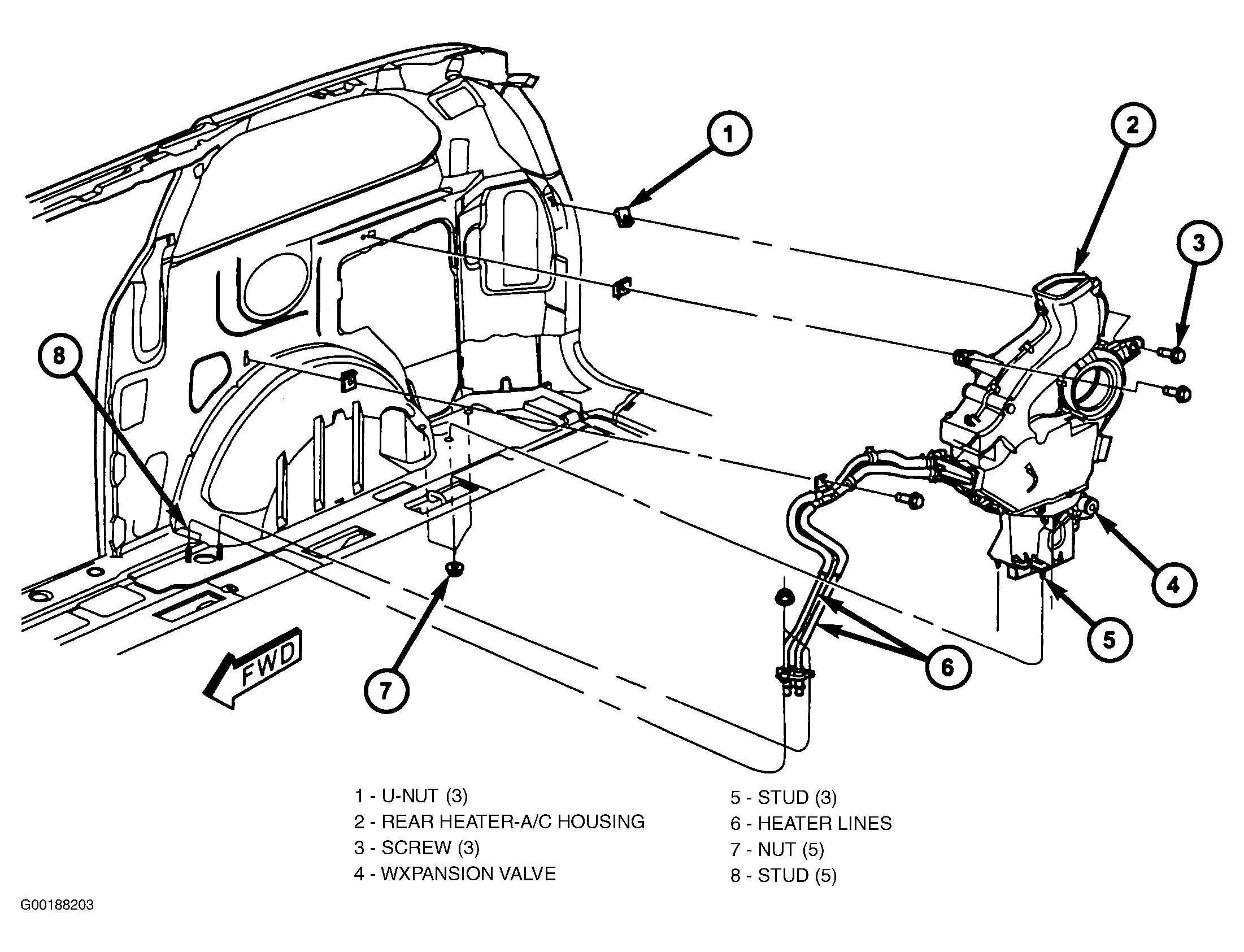

| Rear HVAC Unit | Right Quarter Panel |
| Rear Blower Motor | Near Top Of Rear HVAC Module |
| Rear Blower Motor Power Module | Right Quarter Panel |
| Rear Blower Motor Relay | In Integrated Power Module |
| Rear Blower Motor Resistor | Right Side Of HVAC Module |
| Rear Temperature Motor | Right Quarter Panel |

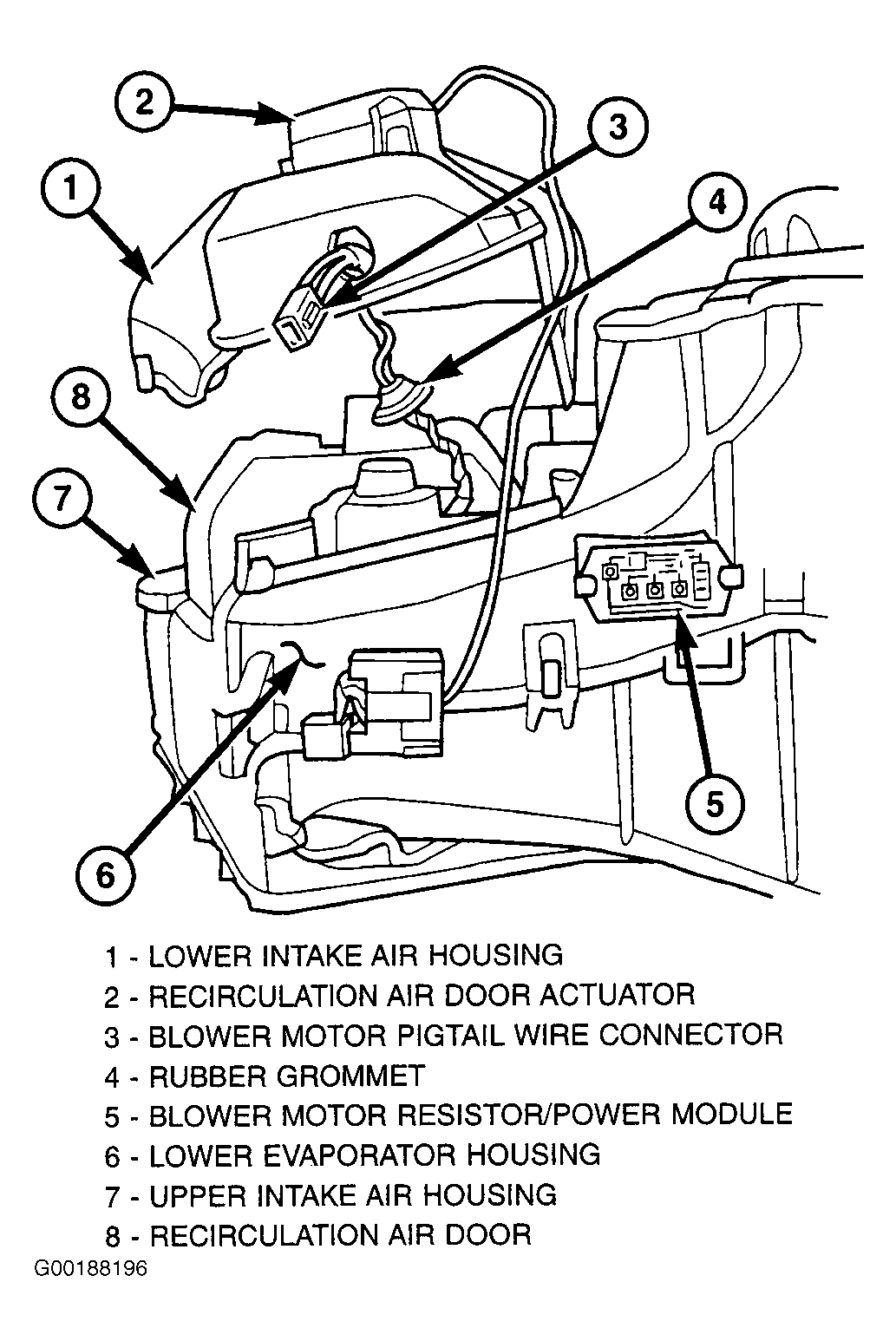

| Recirculation Door Actuator | Right Side Of HVAC Module |
