Lower Console: Installation
WARNING: This page is about a different car, the 2003 Dodge Grand Caravan, 2003 Dodge Caravan, 2003 Chrysler Voyager, and 2003 Chrysler Town & Country. However, it is still accessible from the selected car via links, so may be relevant.
- Connect the auxiliary power outlet wire connector (if equipped).

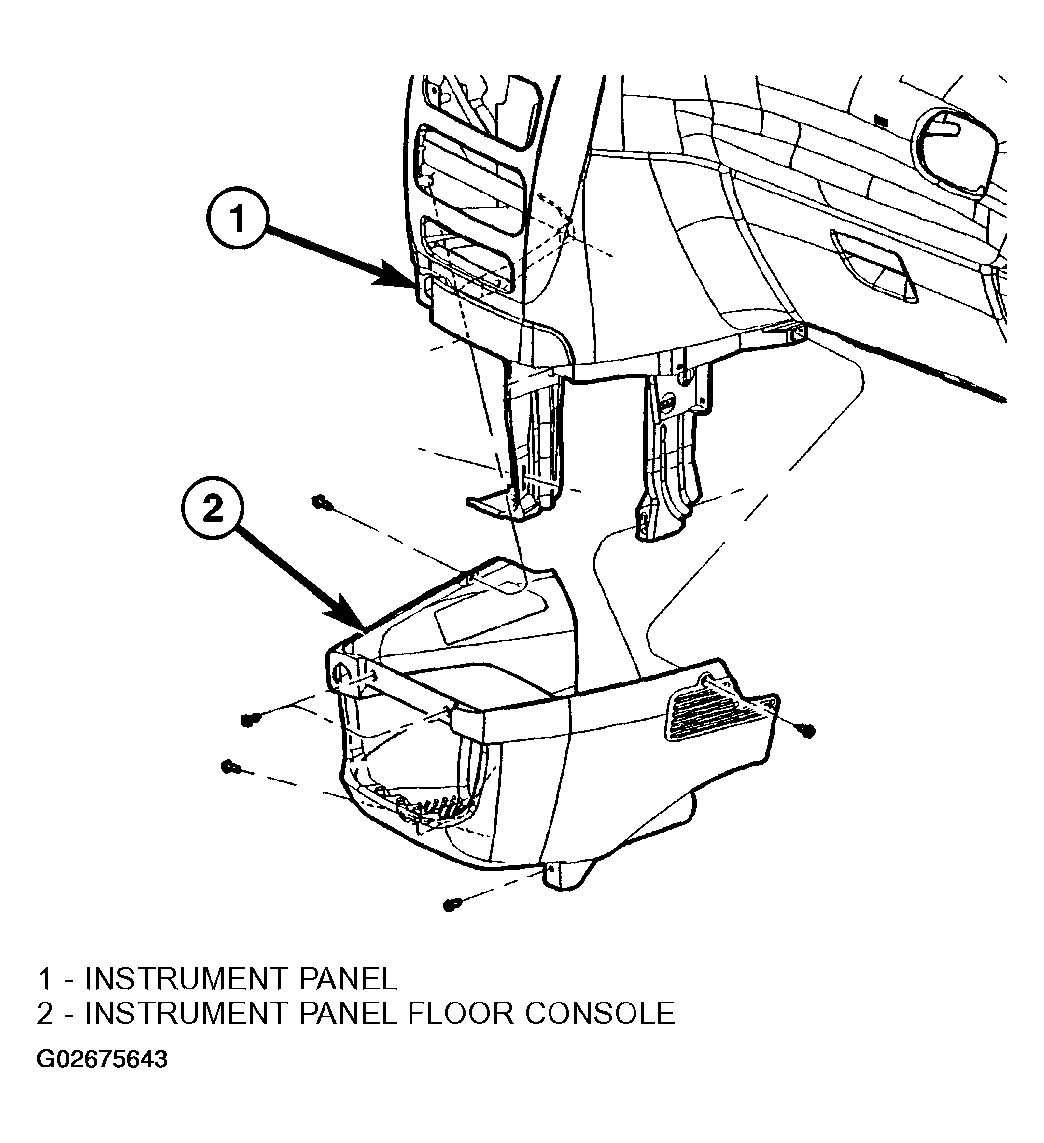

- Install the lower console into the vehicle (Figure ).
- Slide console forward around instrument panel supports.
- Install the screws attaching lower console to floor bracket and instrument panel.
