Radiator Fan Relay: Installation

CAUTION: The relay mounting location is designed to dissipate heat. Ensure the relay is securely attached to prevent relay "thermal" shutdown and relay damage, resulting in possible engine overheating.

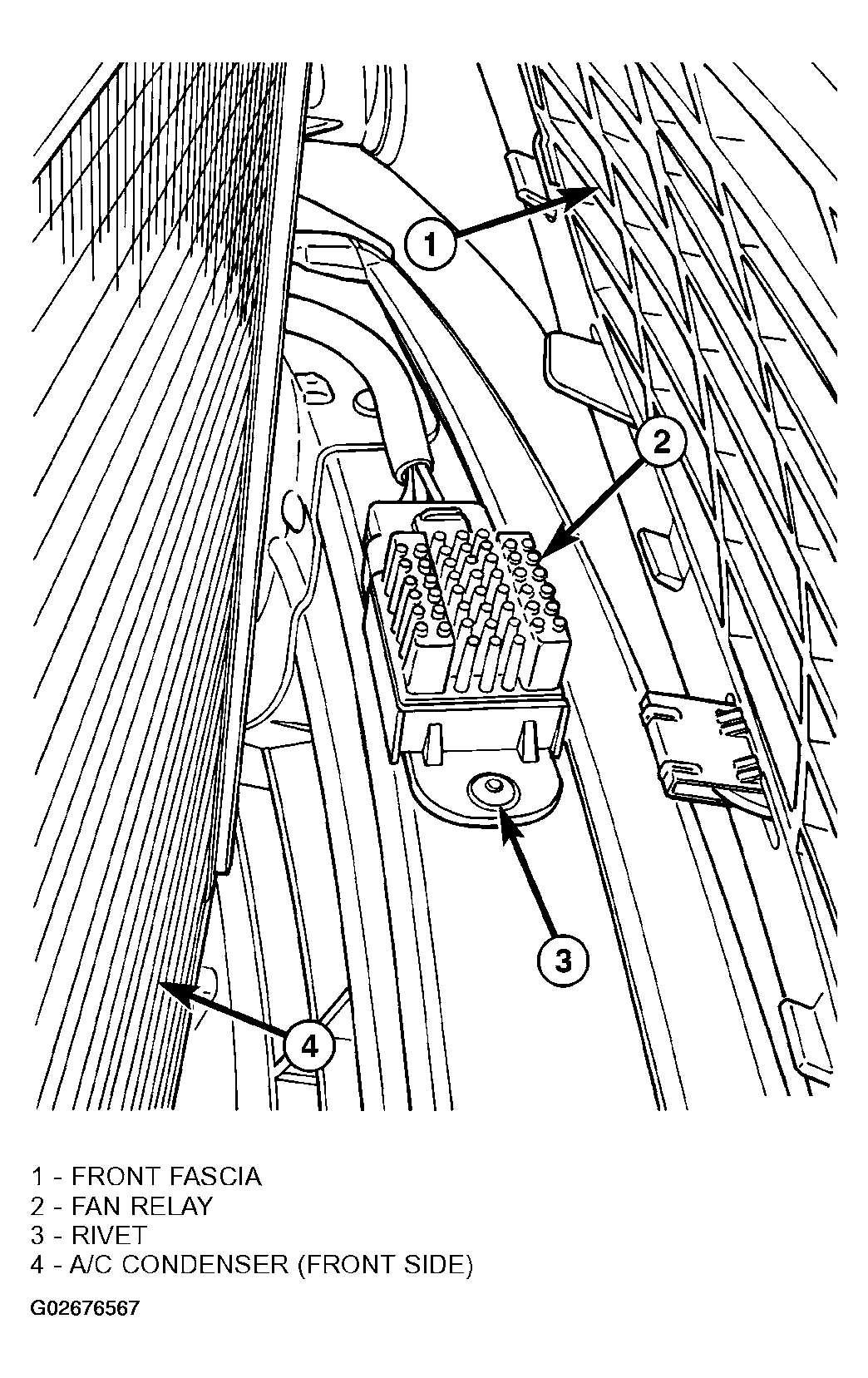

  1. Position relay and install a new rivet (Figure).
  2. Connect electrical connector to relay.
  3. Install closure panel and attaching screws.
  4. Connect negative cable to battery.
