Generator DECOUPLER Pulley: Removal
- Release hood latch and open hood.
- Disconnect battery negative cable.
- Raise vehicle and support.
- Remove the right front lower splash shield.

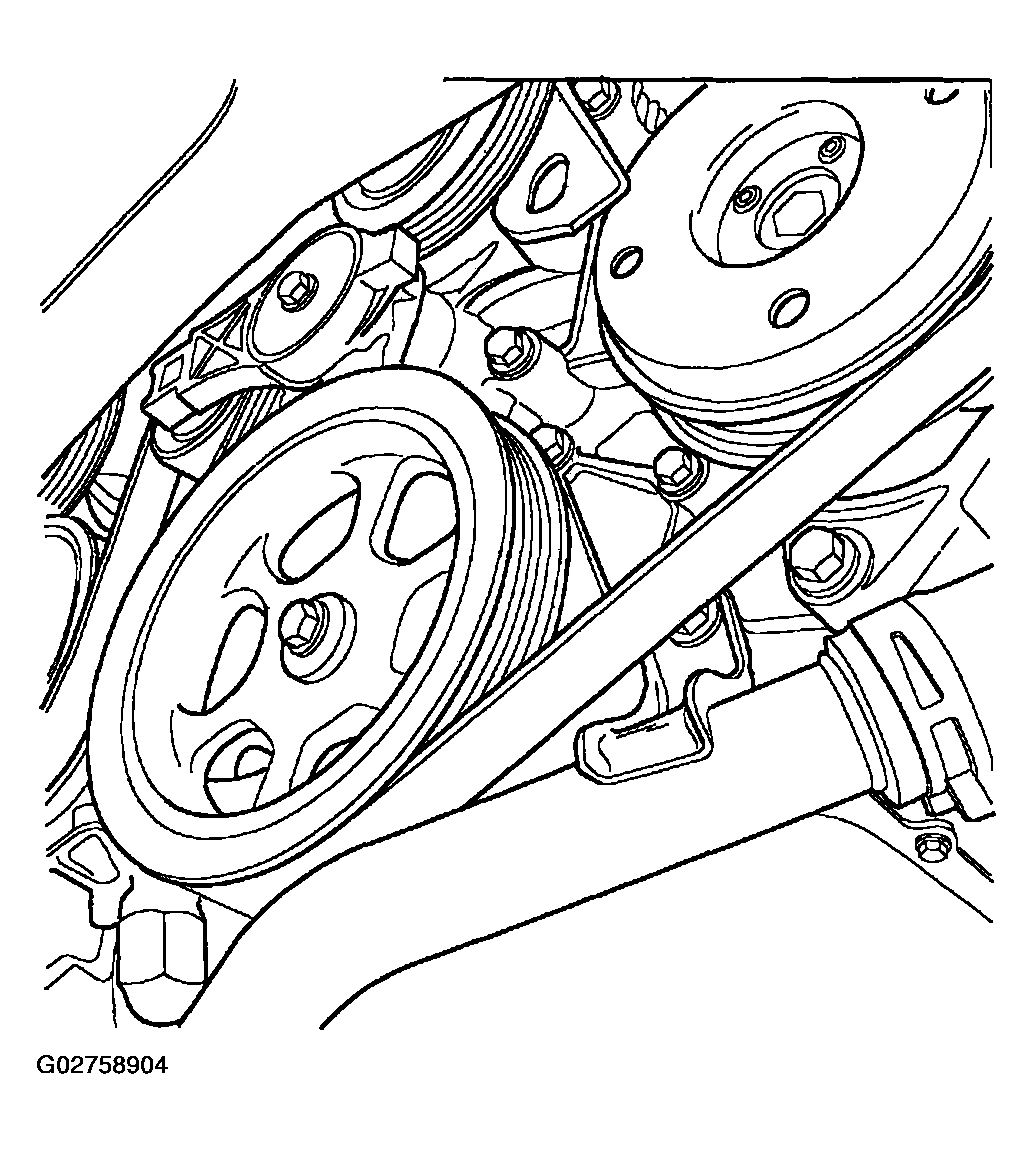

- Remove accessory drive belt, refer to the COOLING SYSTEM
section for proper procedures (Fig 1
).
Courtesy of DAIMLERCHRYSLER CORP.
- Lower vehicle.
- Remove the Air Box.

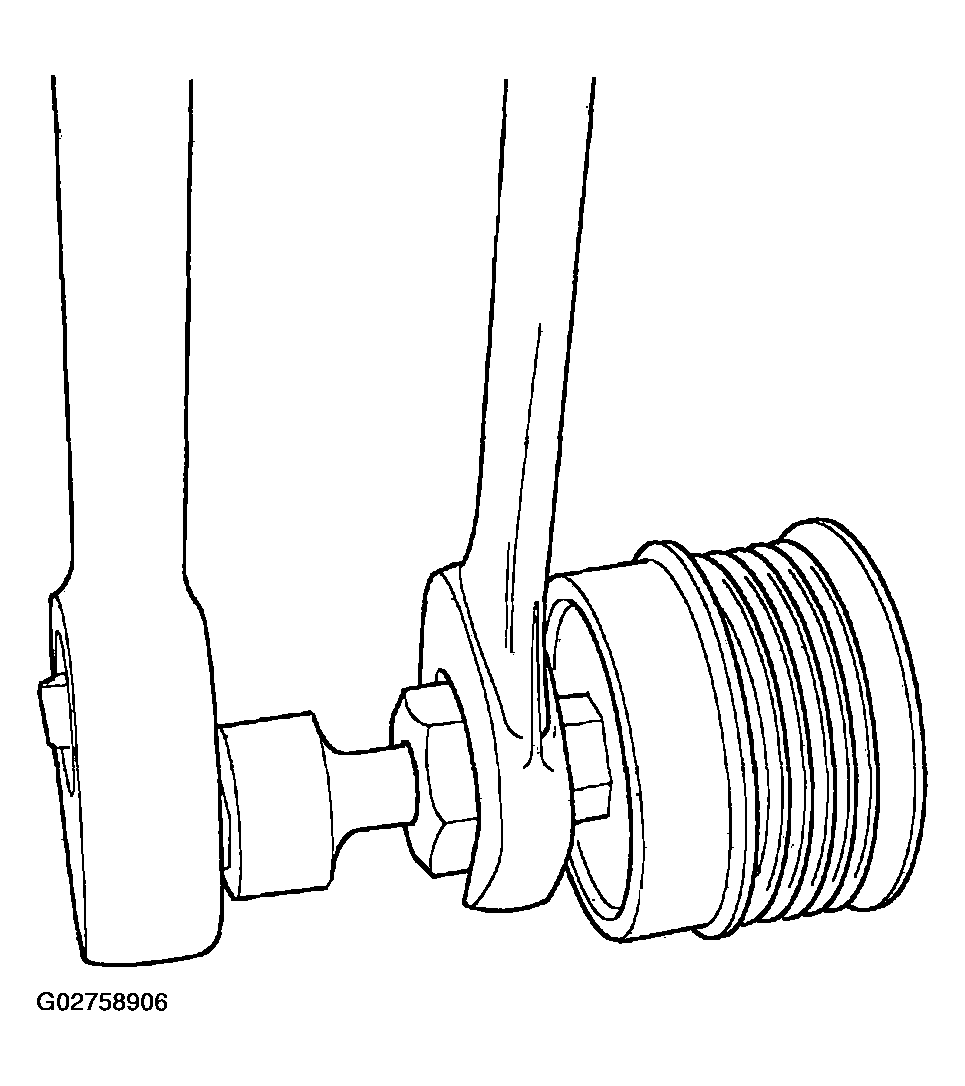

- Use Special Tool #843 (Fig 3

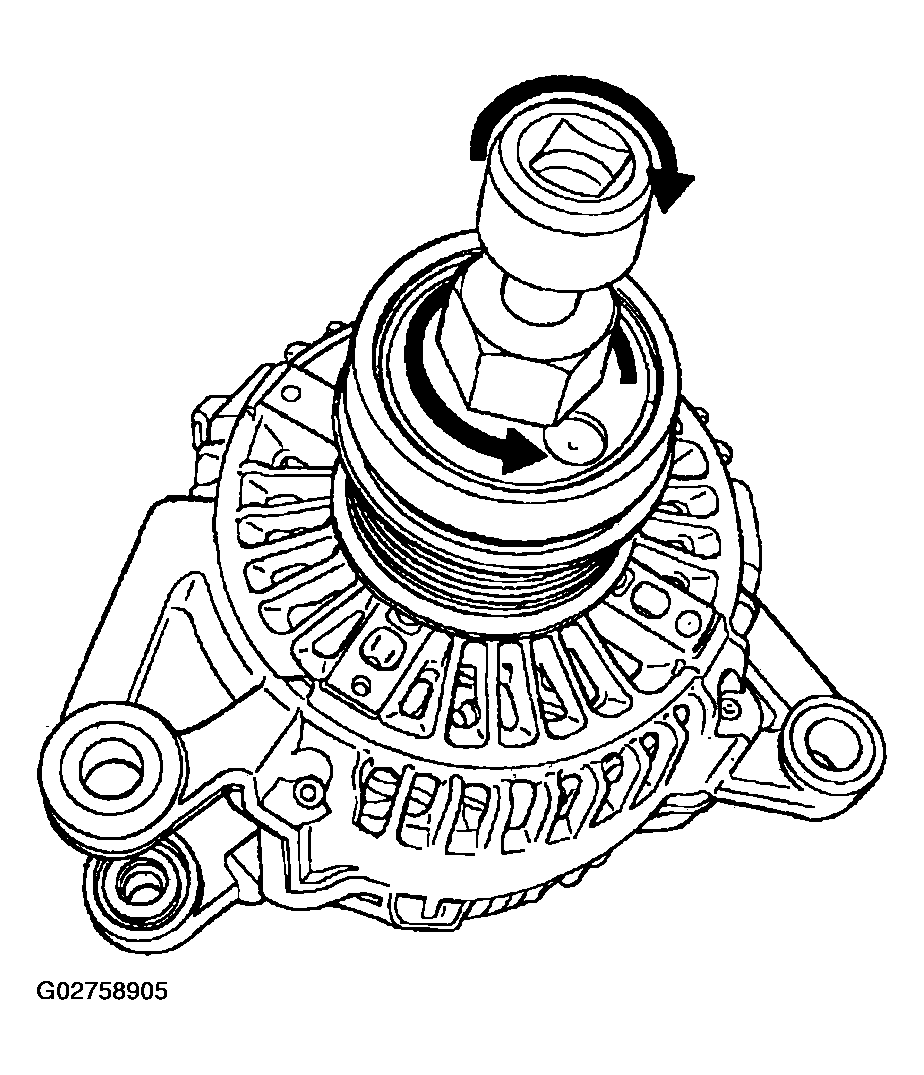

) to loosen the Generator Decoupler (Fig 2
).
Courtesy of DAIMLERCHRYSLER CORP.
Courtesy of DAIMLERCHRYSLER CORP.
- Remove the tool.
- Remove the Generator Decoupler.
