Transmission Control Relay Connector End View

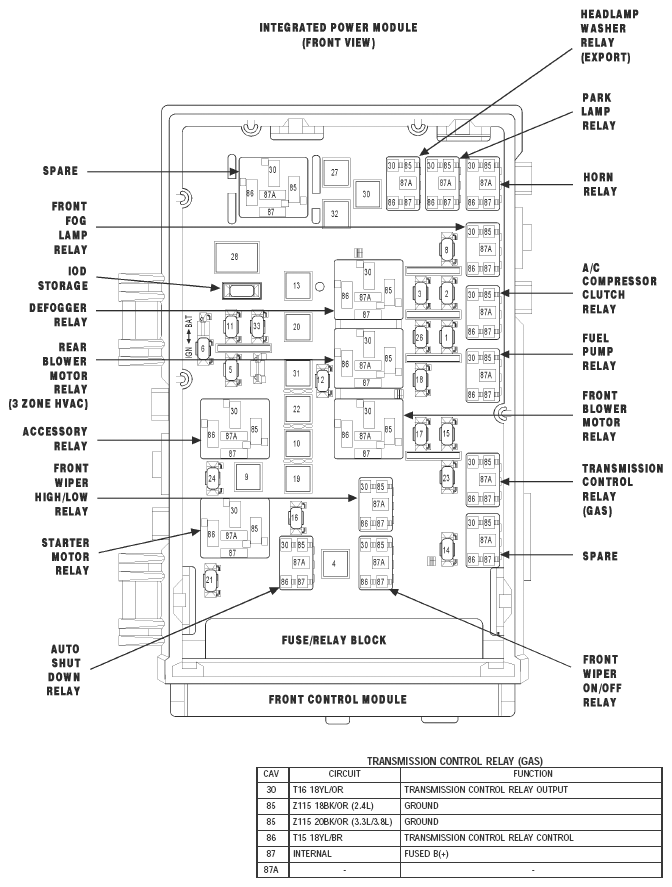

Fig 1: Transmission Control Relay Connector End View

G05552569

Courtesy of CHRYSLER GROUP, LLC
