Sunroof Module (Except Export) Connector End View

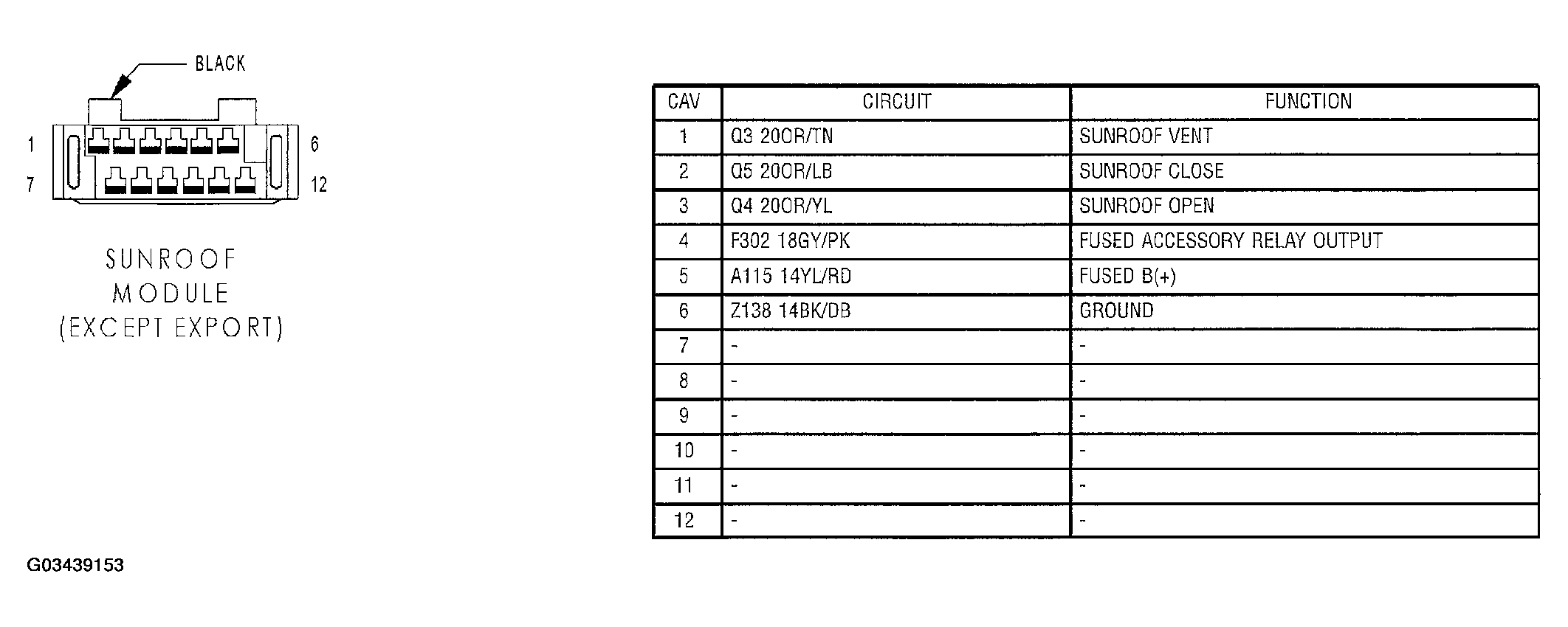

Fig 1: Sunroof Module (Except Export) Connector End View

G03439153

Courtesy of CHRYSLER GROUP, LLC
