Power Mirror Switch Connector End View

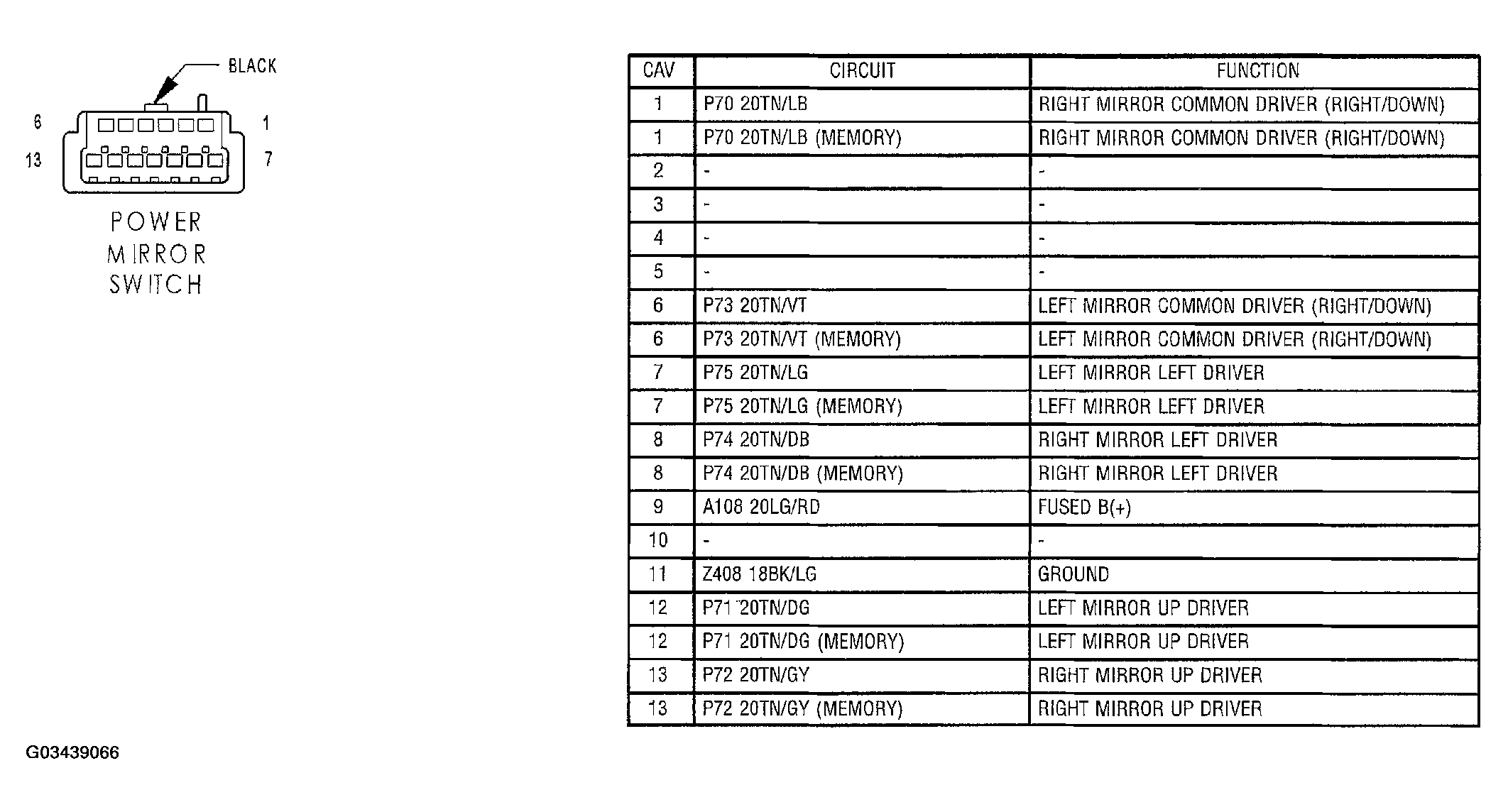

Fig 1: Power Mirror Switch Connector End View

G03439066

Courtesy of CHRYSLER GROUP, LLC
