Overhead Console (Except Base) Connector End View

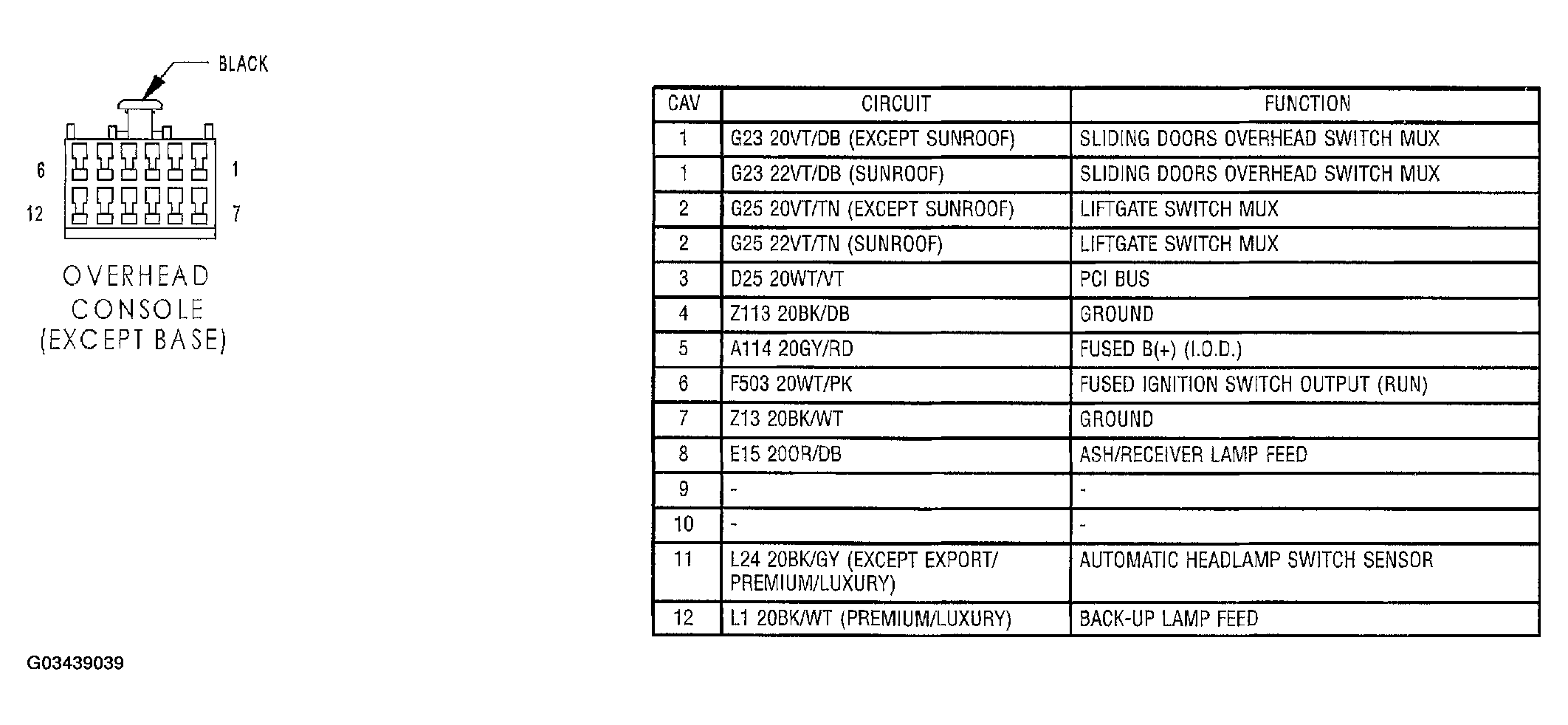

Fig 1: Overhead Console (Except Base) Connector End View

G03439039

Courtesy of CHRYSLER GROUP, LLC
