Left Speed Control Switch Connector End View

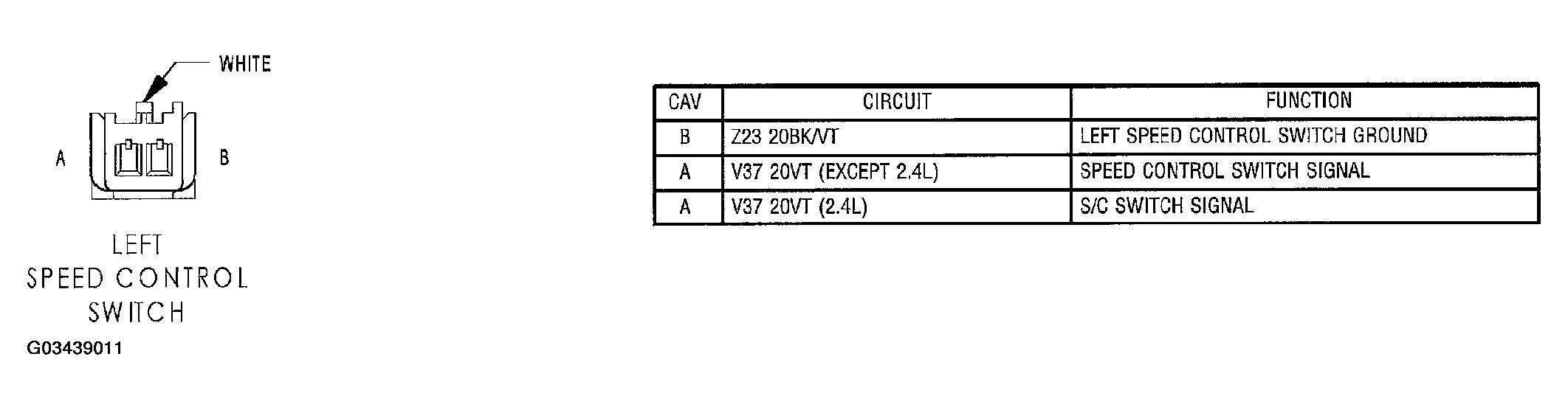

Fig 1: Left Speed Control Switch Connector End View

G03439011

Courtesy of CHRYSLER GROUP, LLC
