Integrated Power Module Connector End View (C9)

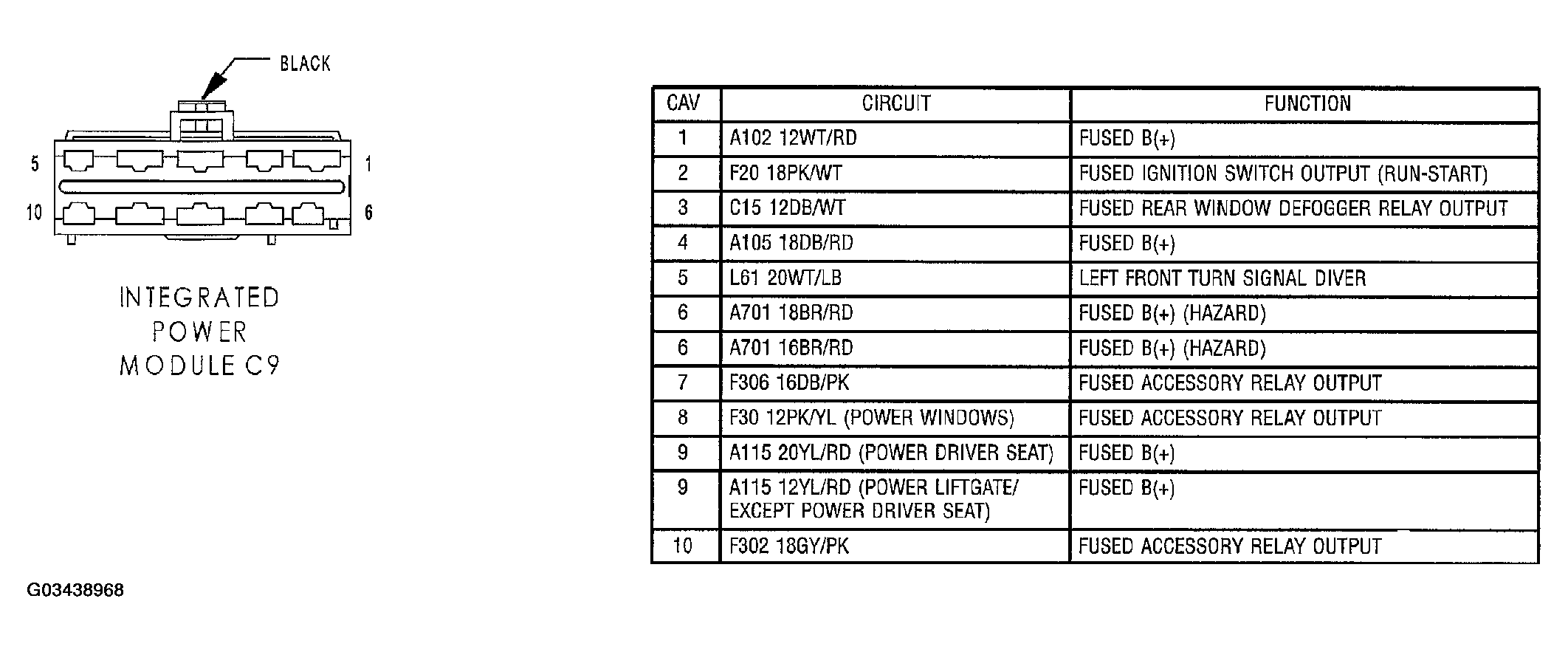

Fig 1: Integrated Power Module Connector End View (C9)

G03438968

Courtesy of CHRYSLER GROUP, LLC
