Integrated Power Module Connector End View (C4)

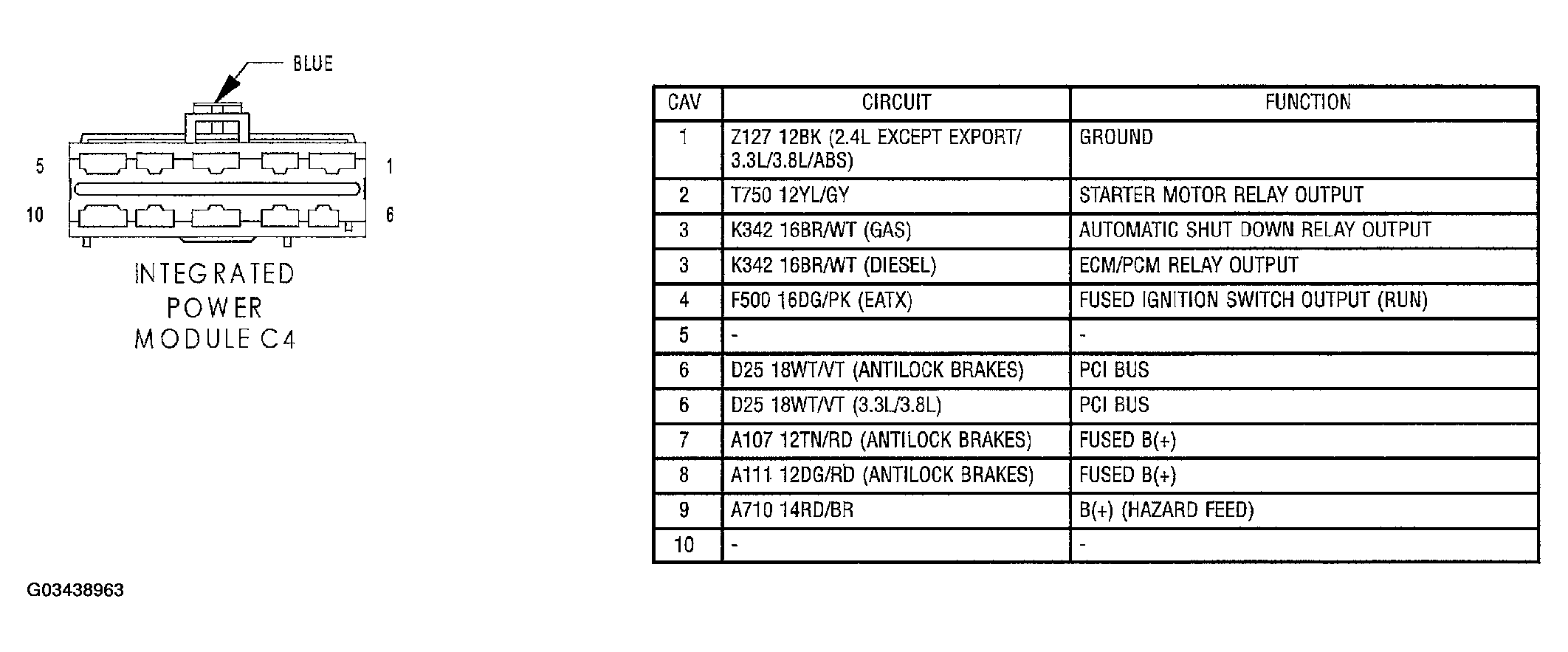

Fig 1: Integrated Power Module Connector End View (C4)

G03438963

Courtesy of CHRYSLER GROUP, LLC
