Integrated Power Module Connector End View (C1)

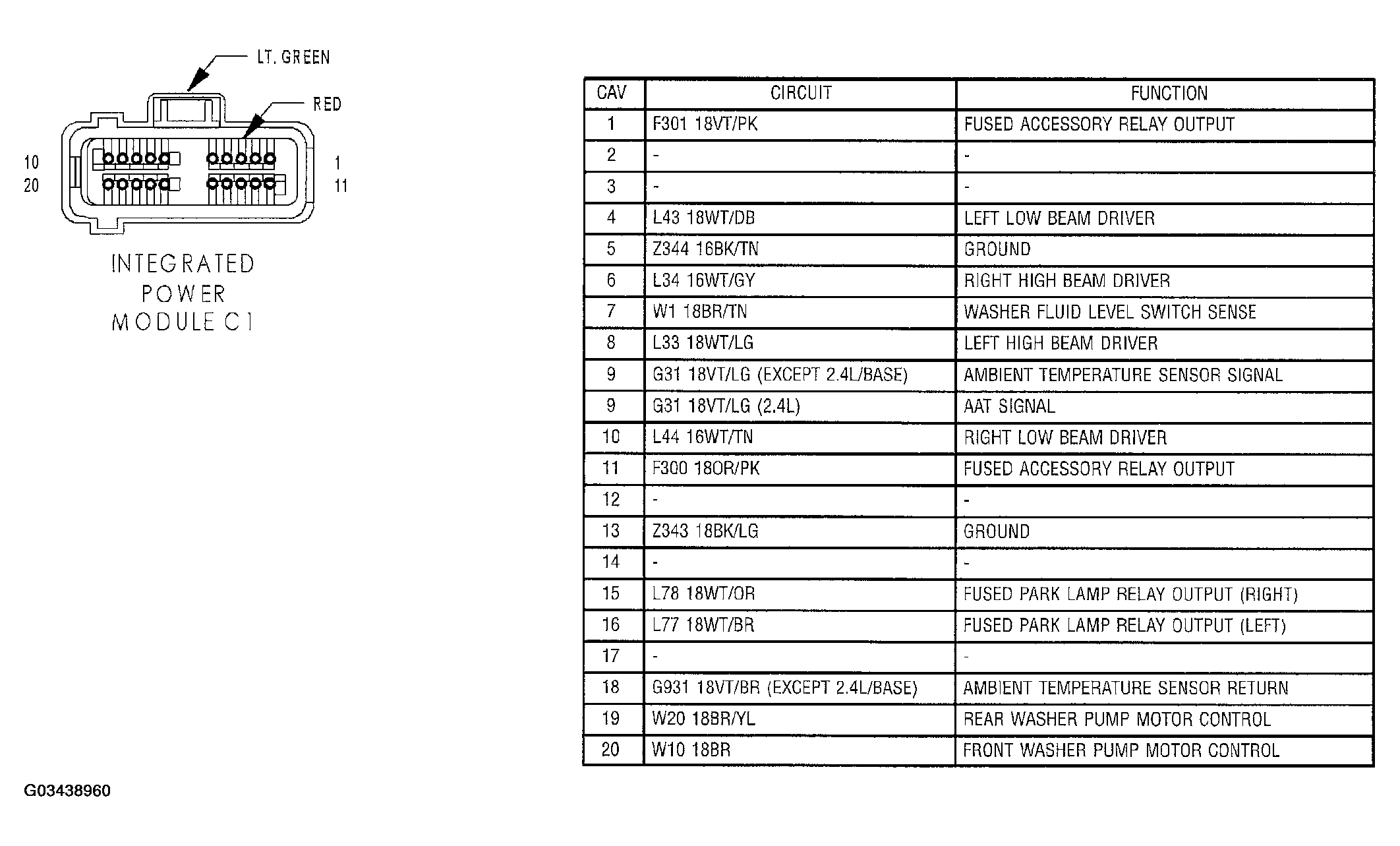

Fig 1: Integrated Power Module Connector End View (C1)

G03438960

Courtesy of CHRYSLER GROUP, LLC
