Hands Free Module C3 - 10 Way Connector End View

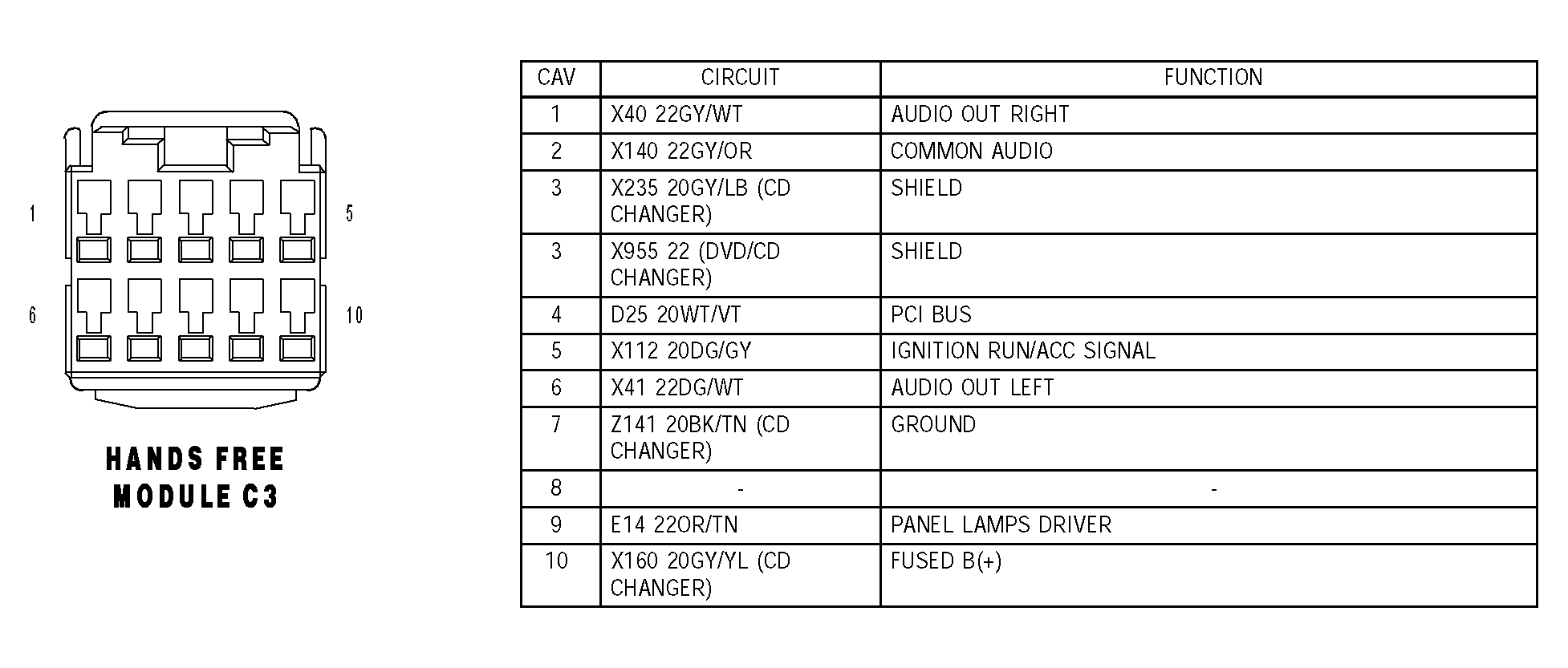

Fig 1: Hands Free Module C3 - 10 Way Connector End View

G04549430

Courtesy of CHRYSLER GROUP, LLC
