Front Control Module - Black 49 Way Connector End View

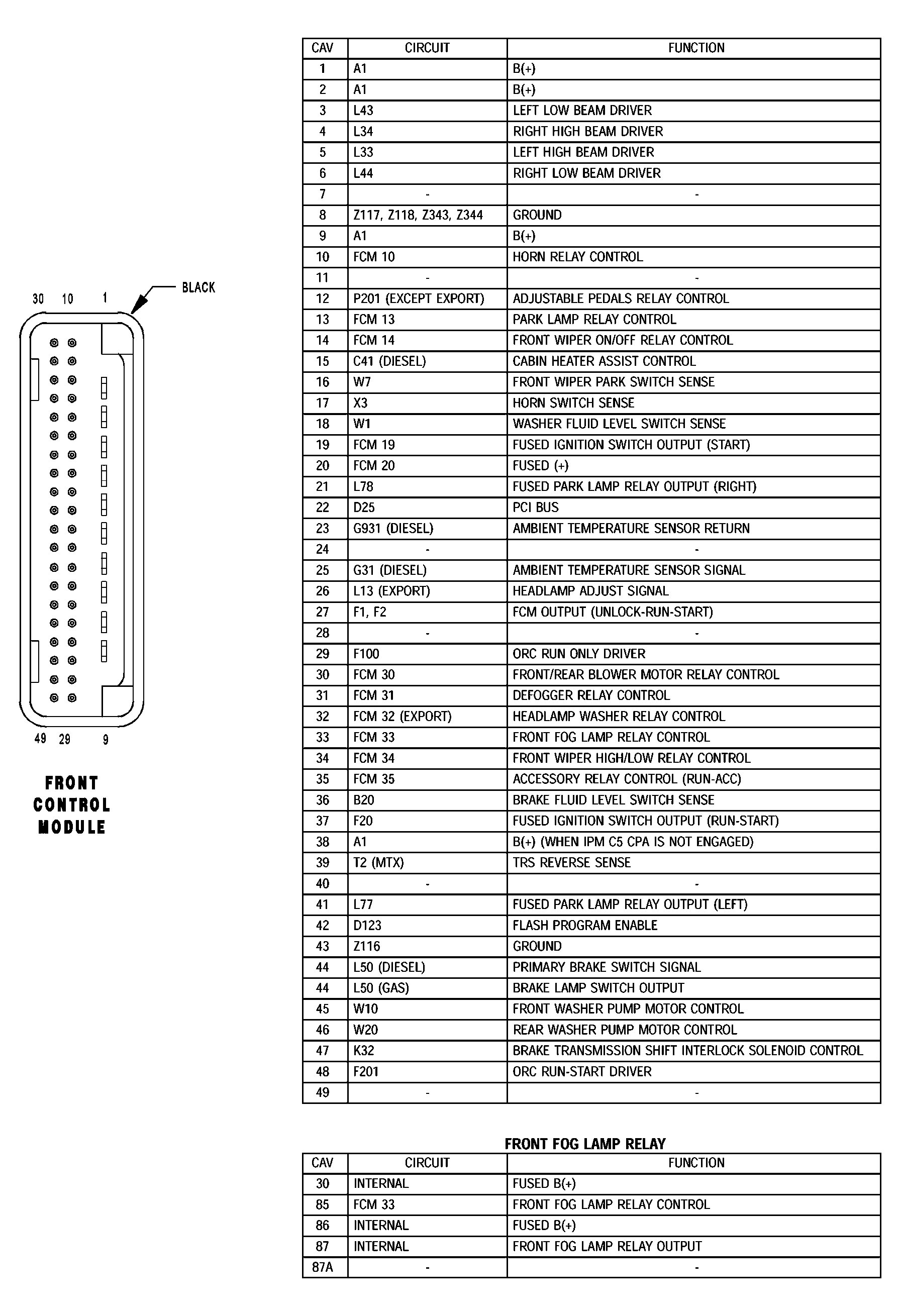

Fig 1: Front Control Module - Black 49 Way Connector End View

G04549425

Courtesy of CHRYSLER GROUP, LLC
