Driver Heated Seat Module Connector End View (C2)

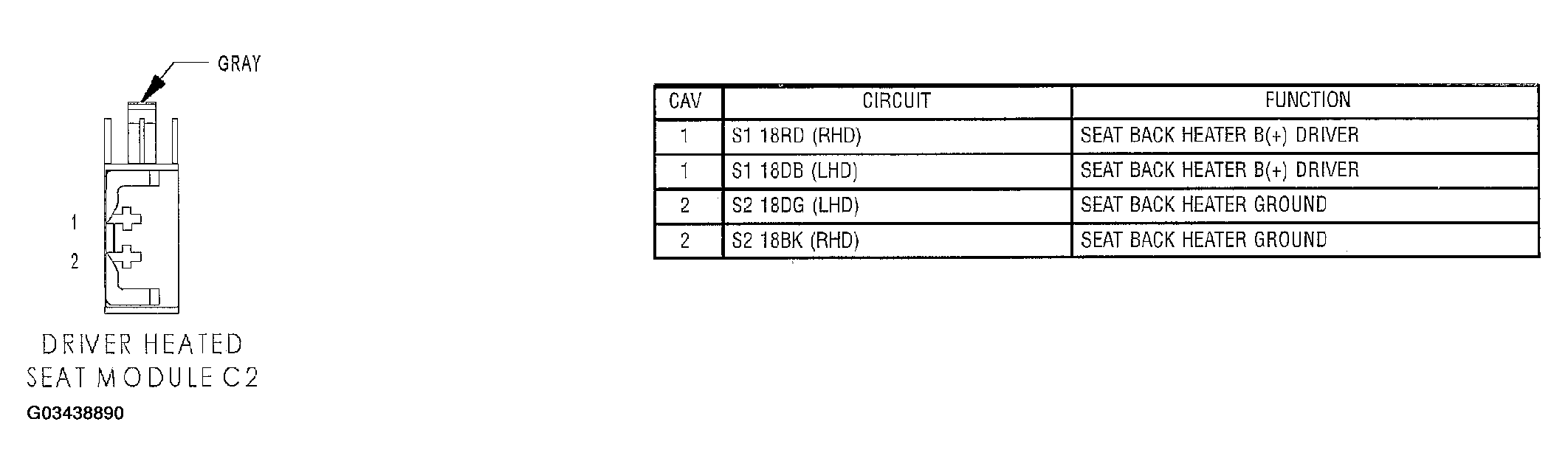

Fig 1: Driver Heated Seat Module Connector End View (C2)

G03438890

Courtesy of CHRYSLER GROUP, LLC
