Driver Door Lock Switch Connector End View

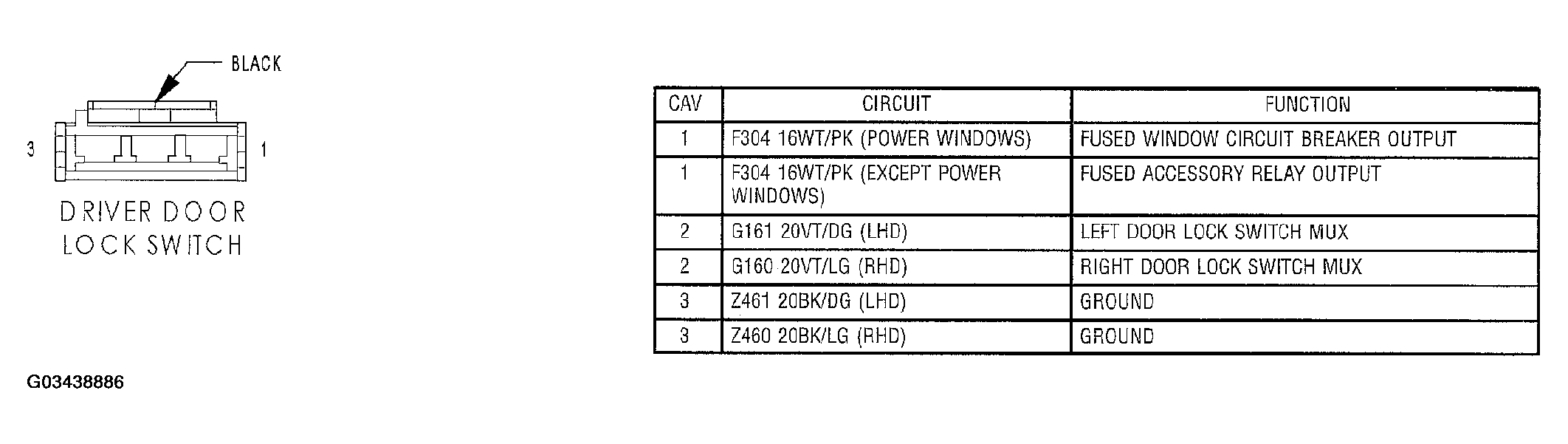

Fig 1: Driver Door Lock Switch Connector End View

G03438886

Courtesy of CHRYSLER GROUP, LLC
