A/C Pressure Sensor Connector End View

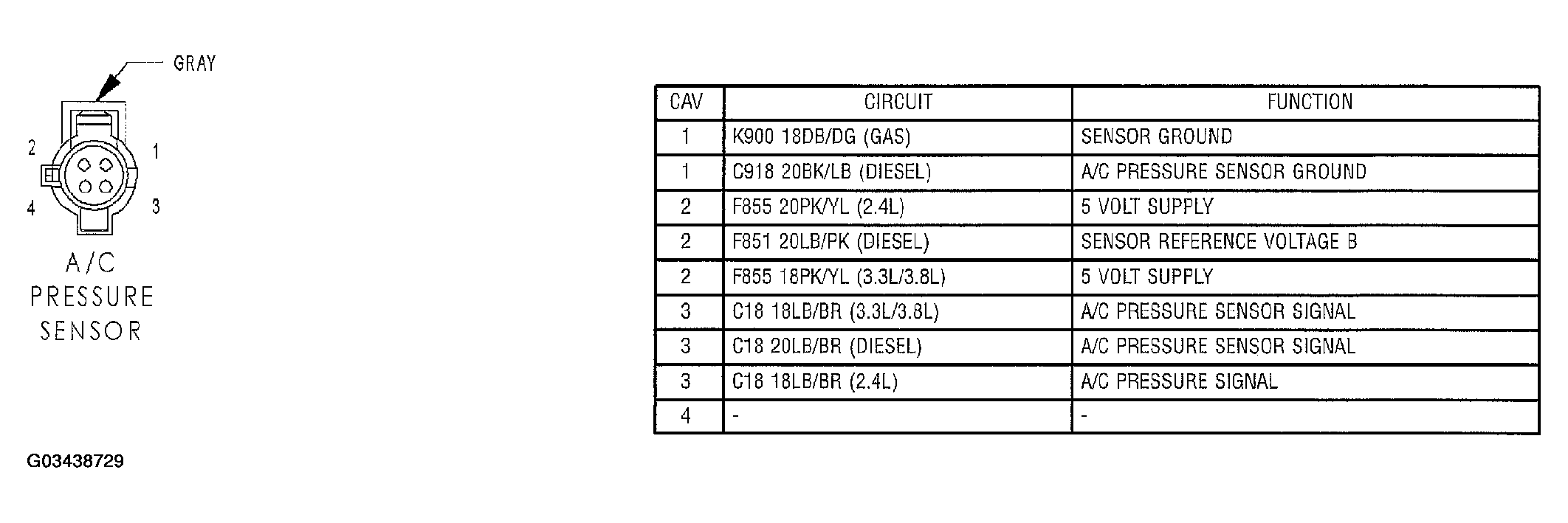

Fig 1: A/C Pressure Sensor Connector End View

G03438729

Courtesy of CHRYSLER GROUP, LLC
