Wiper Module Connector End View
Wiper Module Connector End View

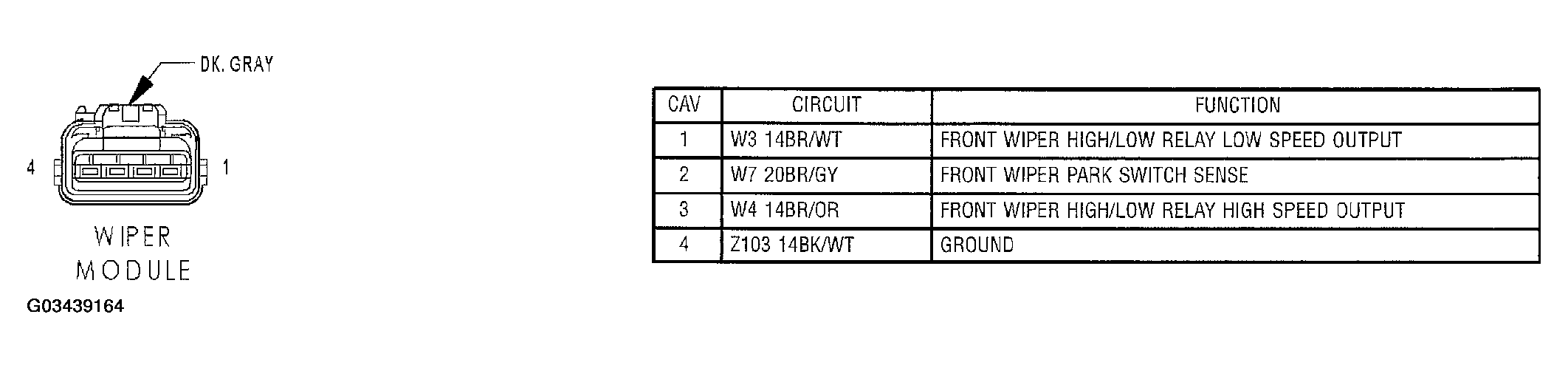

Fig 1: Wiper Module Connector End View
Courtesy of CHRYSLER GROUP, LLC
Courtesy of CHRYSLER GROUP, LLC
