Remote Keyless Entry Module Connector End View

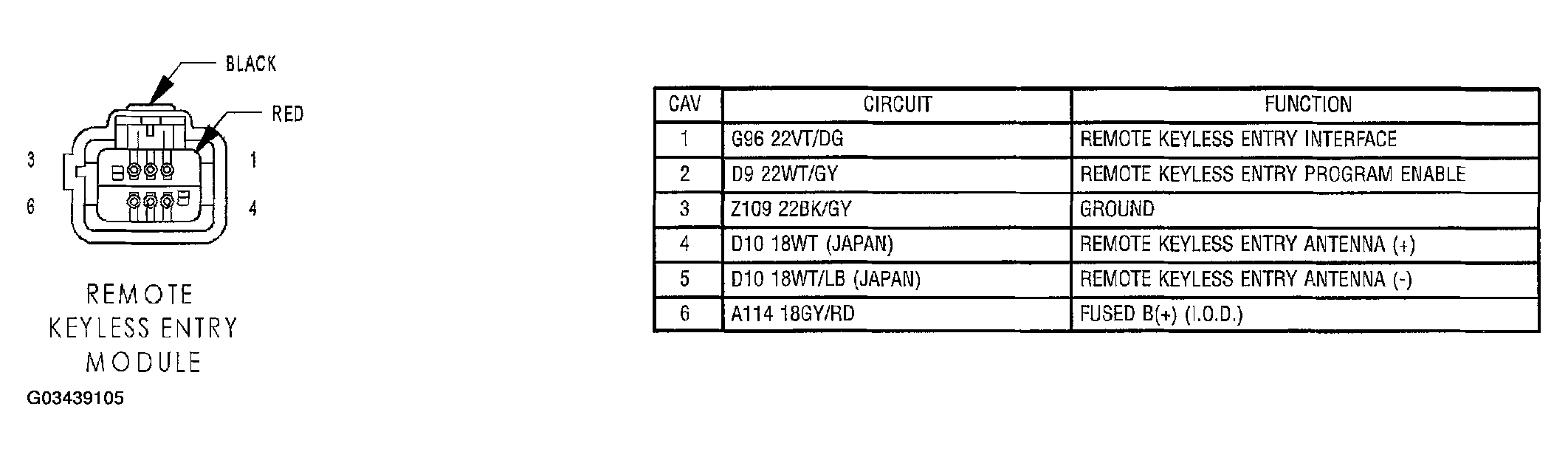

Fig 1: Remote Keyless Entry Module Connector End View

G03439105

Courtesy of CHRYSLER GROUP, LLC
