Home >> Chrysler >> 2002 >> Voyager EC >> Repair and Diagnosis (Single Page) >> Quick Lookups >> Wiring Diagrams >> OEM Connector End Views >> Occupant Classification Module Connector End View

Occupant Classification Module Connector End View

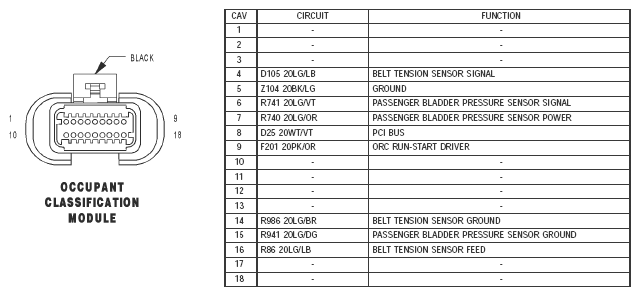

Fig 1: Occupant Classification Module Connector End View

G05552389

Courtesy of CHRYSLER GROUP, LLC
