Body Control Module Connector End View (C3)

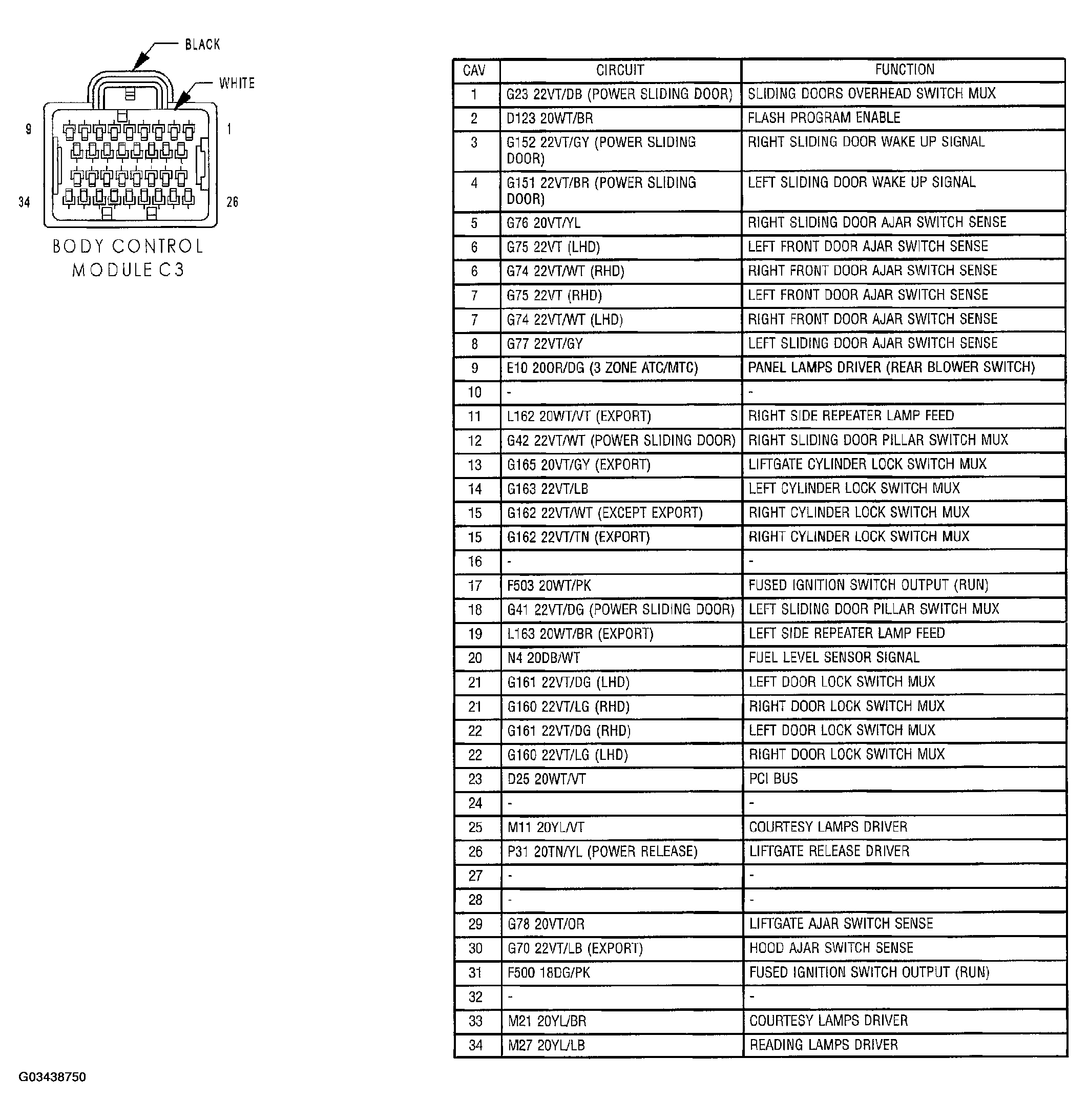

Fig 1: Body Control Module Connector End View (C3)

G03438750

Courtesy of CHRYSLER GROUP, LLC
