Body Control Module Connector End View (C2)

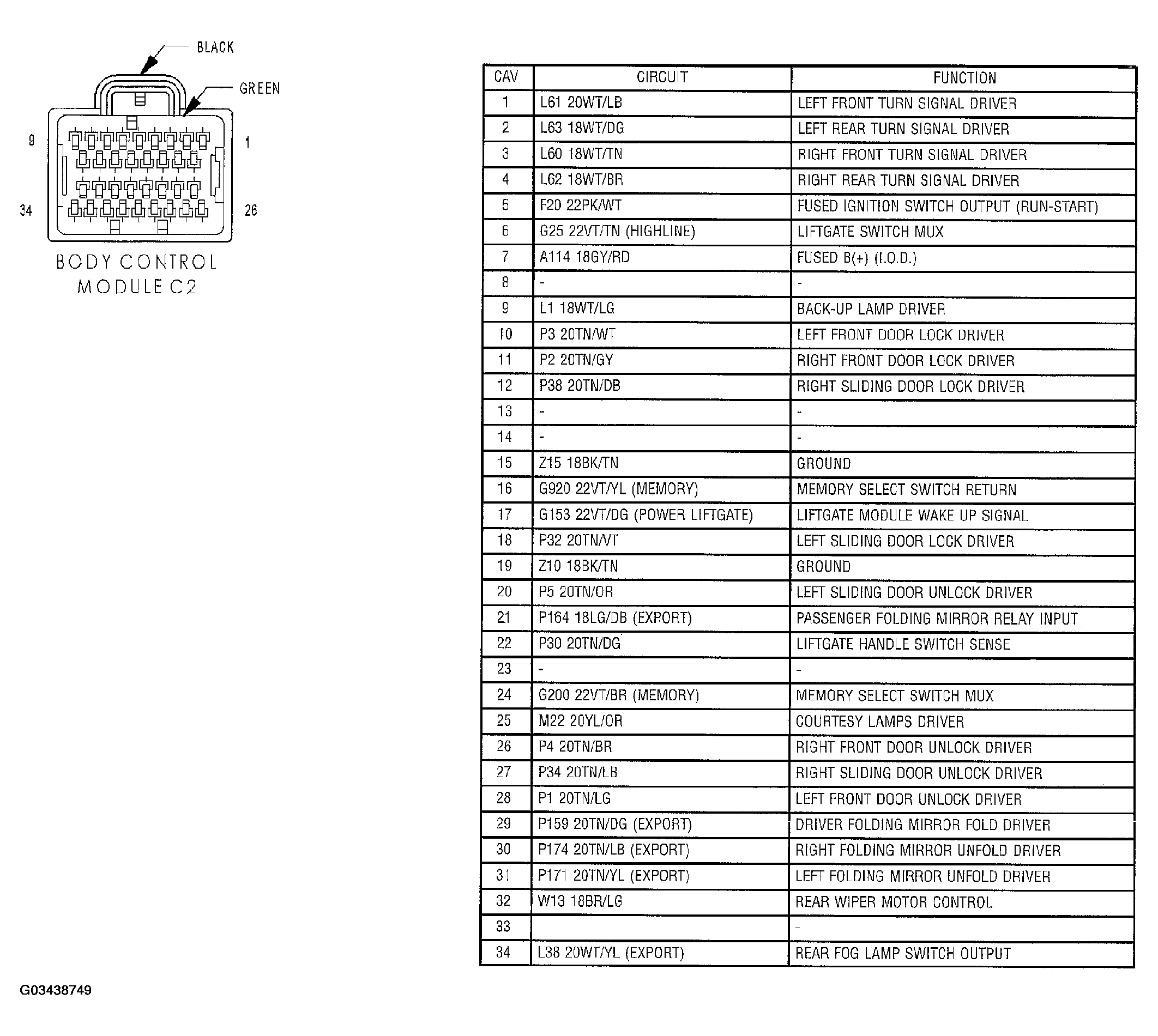

Fig 1: Body Control Module Connector End View (C2)

G03438749

Courtesy of CHRYSLER GROUP, LLC
