Automatic Temperature Control Remote Sensor Connector End View

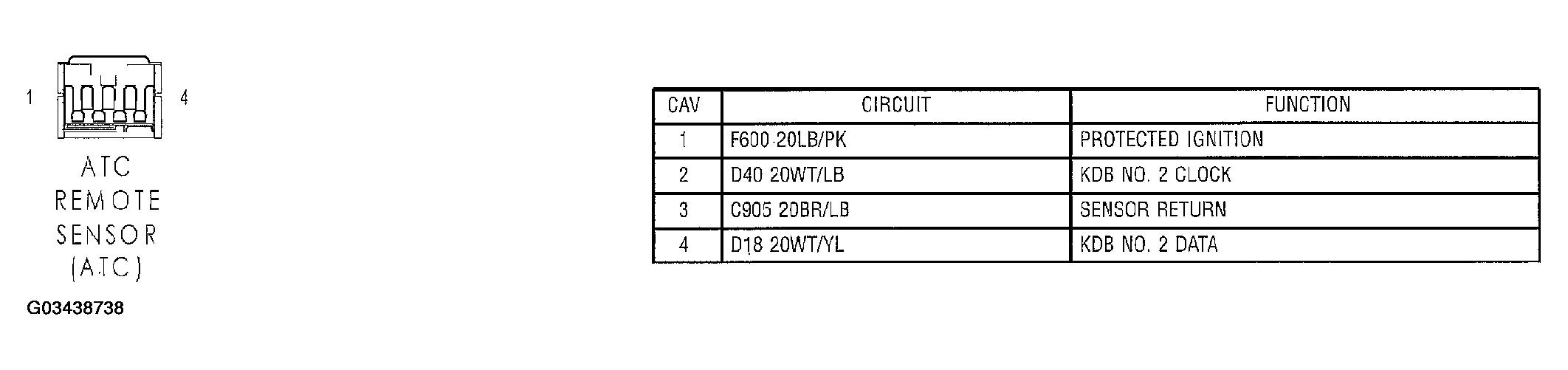

Fig 1: Automatic Temperature Control Remote Sensor Connector End View

G03438738

Courtesy of CHRYSLER GROUP, LLC
