Decklid Switch Disarm Failure

For testing procedures, see Fig 1 and Fig 2 .

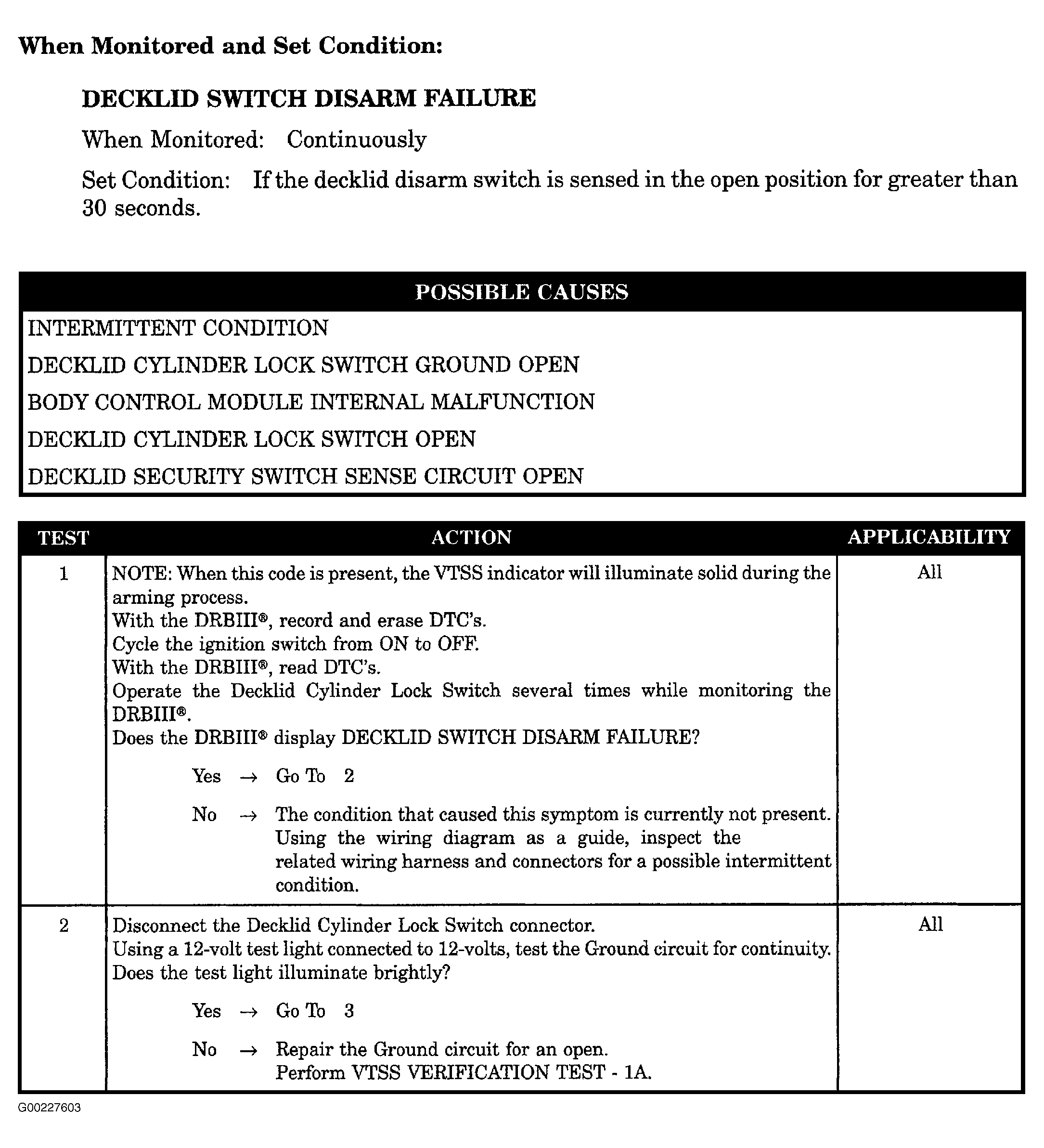

Fig 1: Decklid Switch Disarm Failure - Steps 1 & 2 (1 Of 2)
G00227603Courtesy of CHRYSLER CORP.

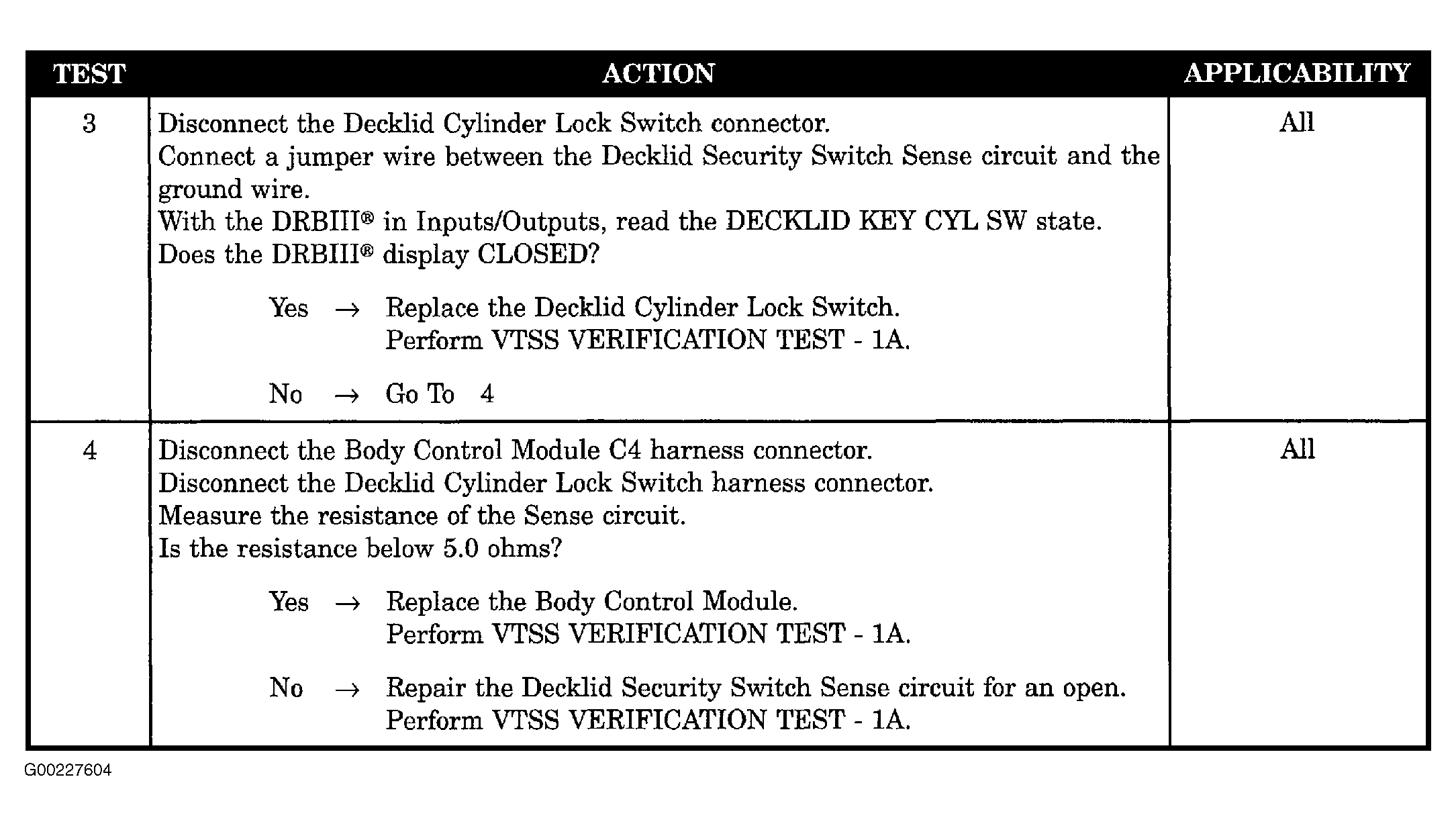

Fig 2: Decklid Switch Disarm Failure - Steps 3 & 4 (2 Of 2)
G00227604Courtesy of CHRYSLER CORP.
