Power Top System
>>
Power Top Switch Shorted To Ground
Power Top Switch Shorted To Ground
For testing procedures, see
Fig 1
.

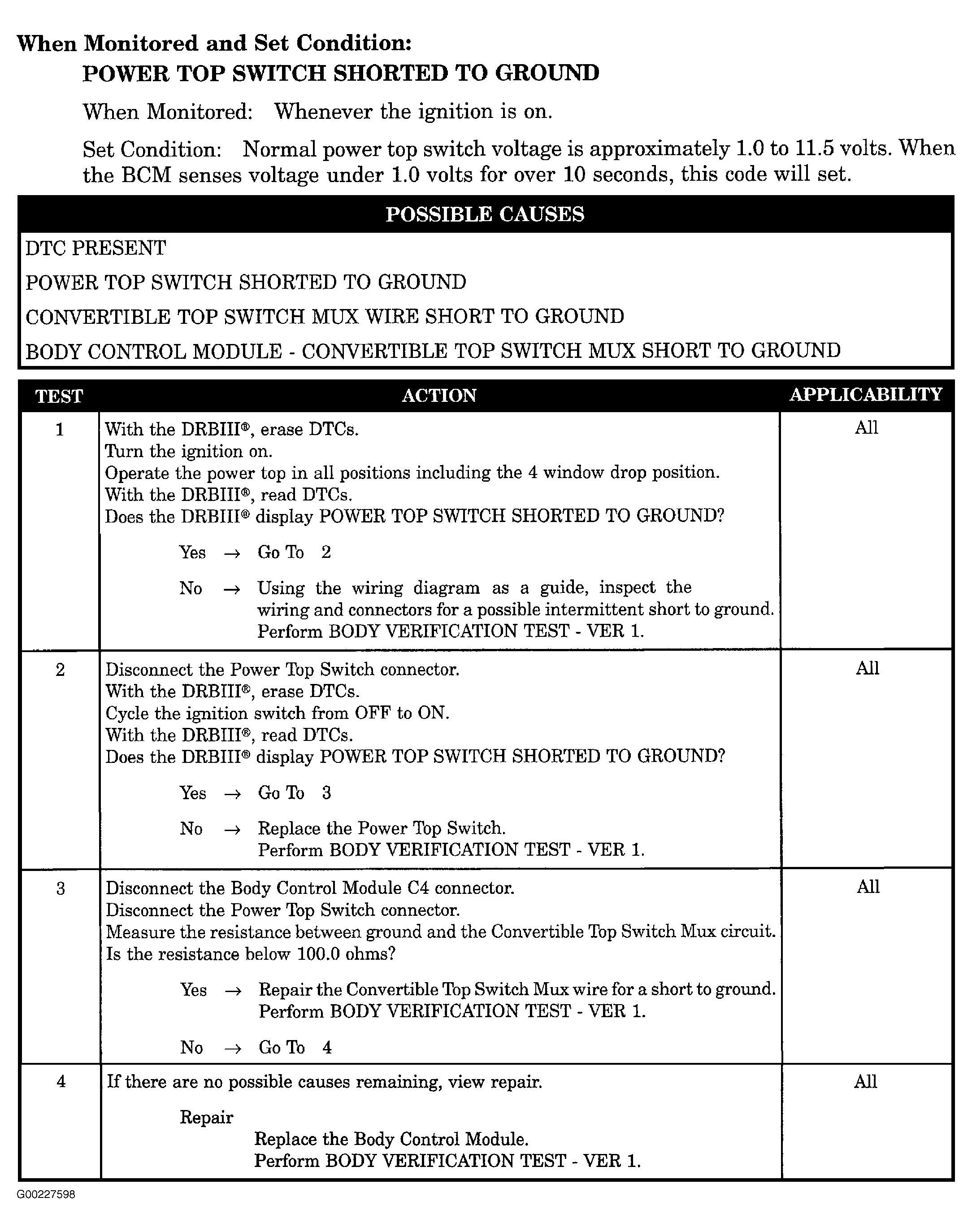

Fig 1: Power Top Switch Shorted To Ground
Courtesy of CHRYSLER CORP.
