A/C System Test

For testing procedures, see Fig 1 .

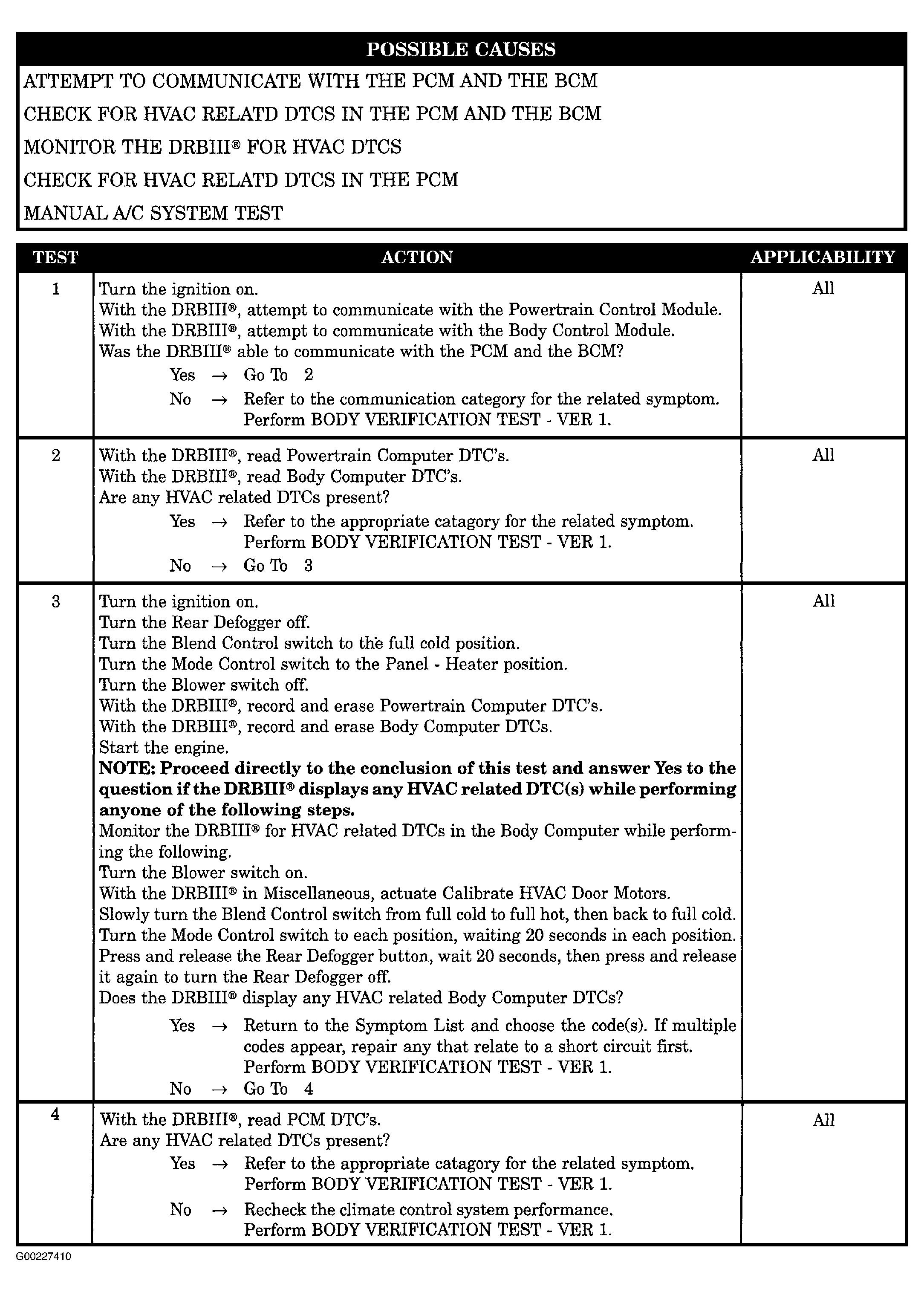

Fig 1: A/C System Test

G00227410

Courtesy of CHRYSLER CORP.
