No Antenna Connection

For testing procedures, see Fig 1 .

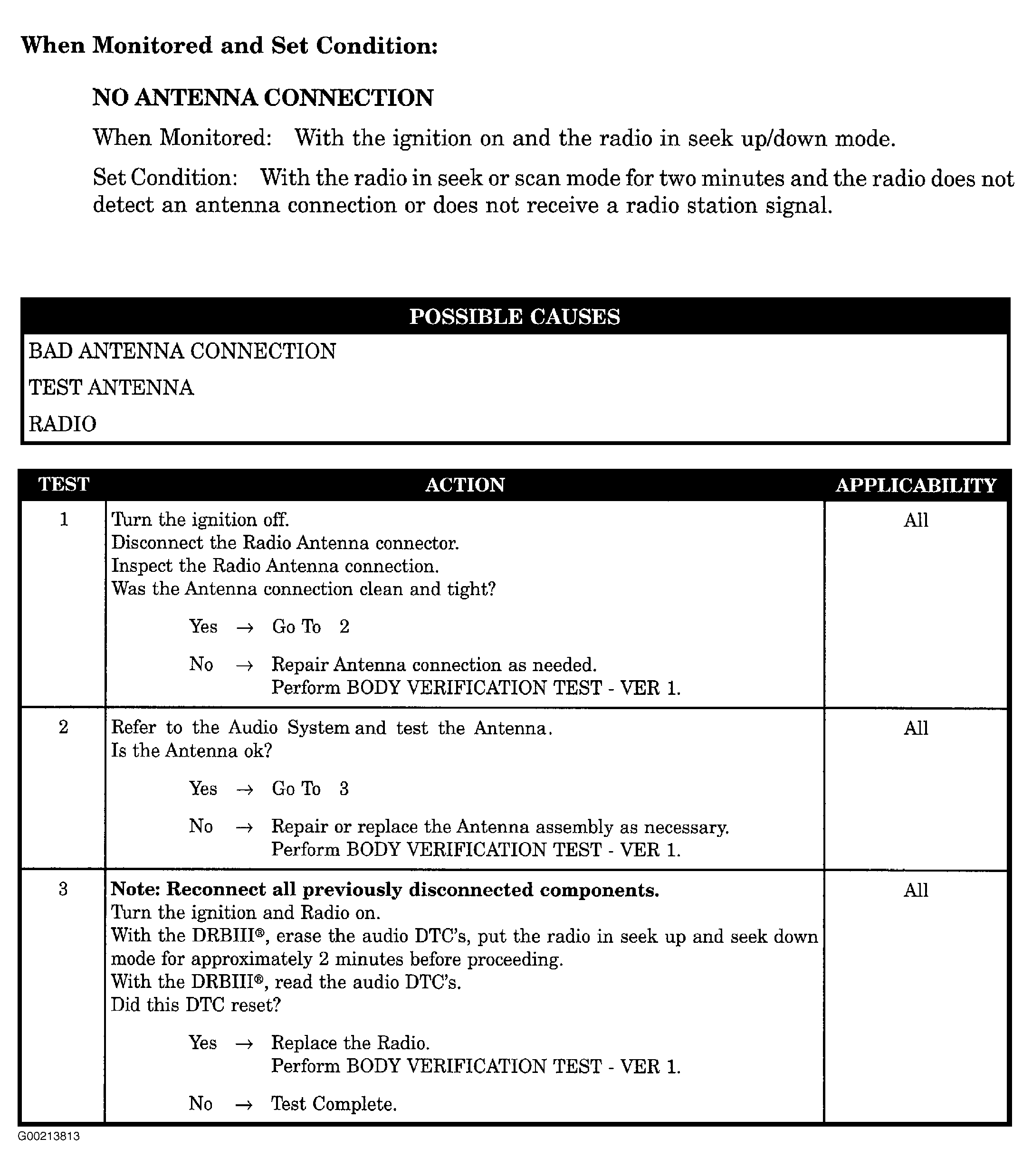

Fig 1: No Antenna Connection

G00213813

Courtesy of CHRYSLER CORP.
