High Beam Indicator Always On

For testing procedures, see Fig 1 and Fig 2 .

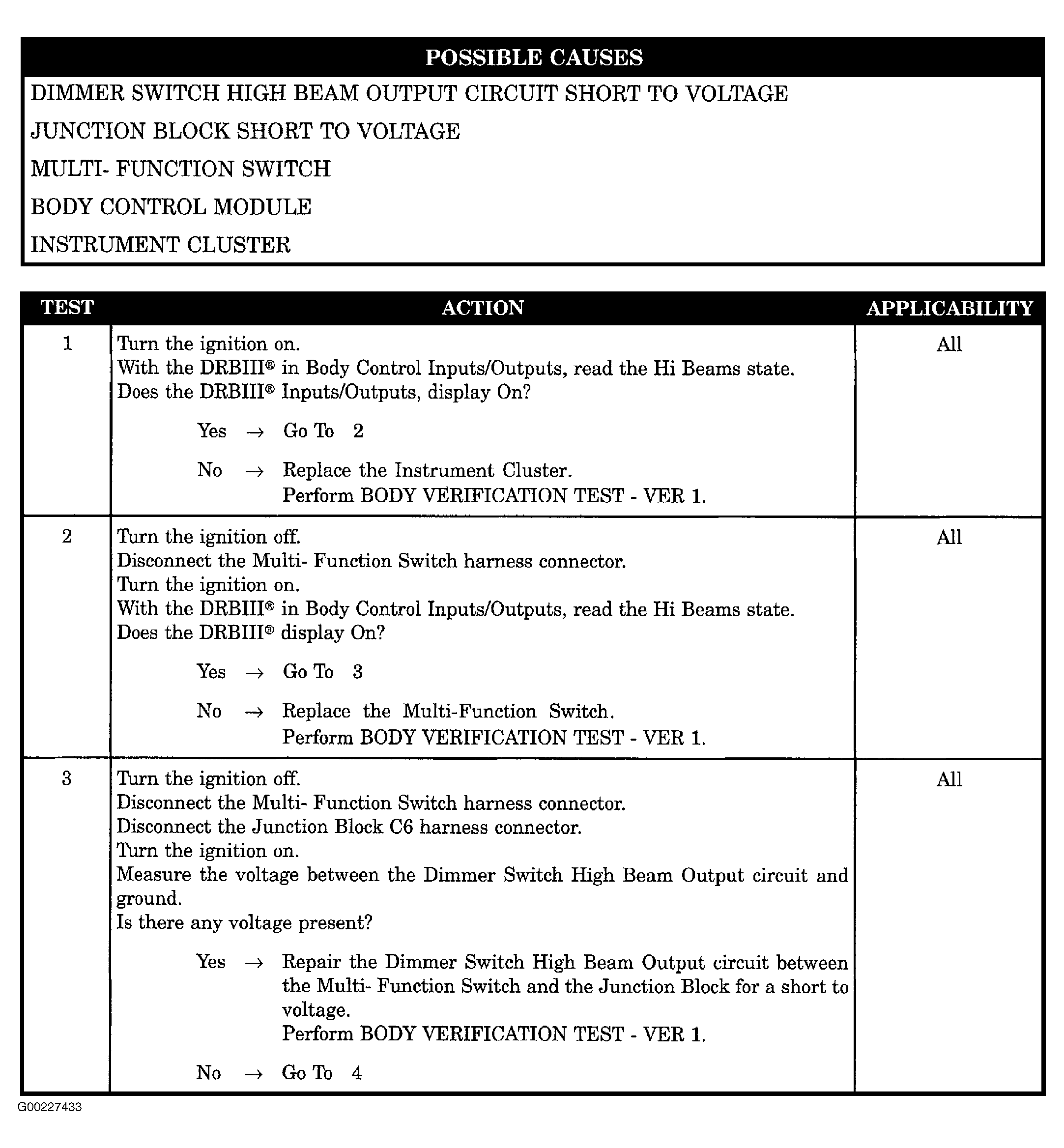

Fig 1: High Beam Indicator Always On - Steps 1-3 (1 Of 2)
G00227433Courtesy of CHRYSLER CORP.

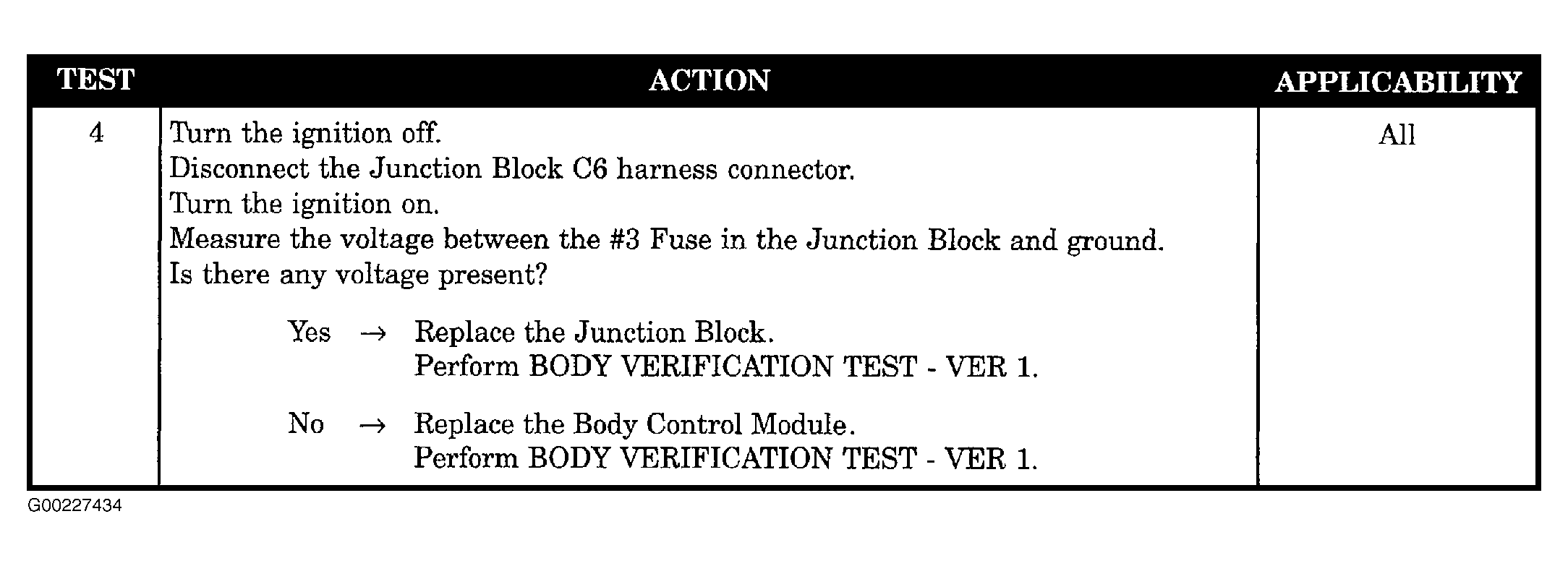

Fig 2: High Beam Indicator Always On - Step 4 (2 Of 2)
G00227434Courtesy of CHRYSLER CORP.
