Remote Keyless Entry Problem

For testing procedures, see Fig 1 .

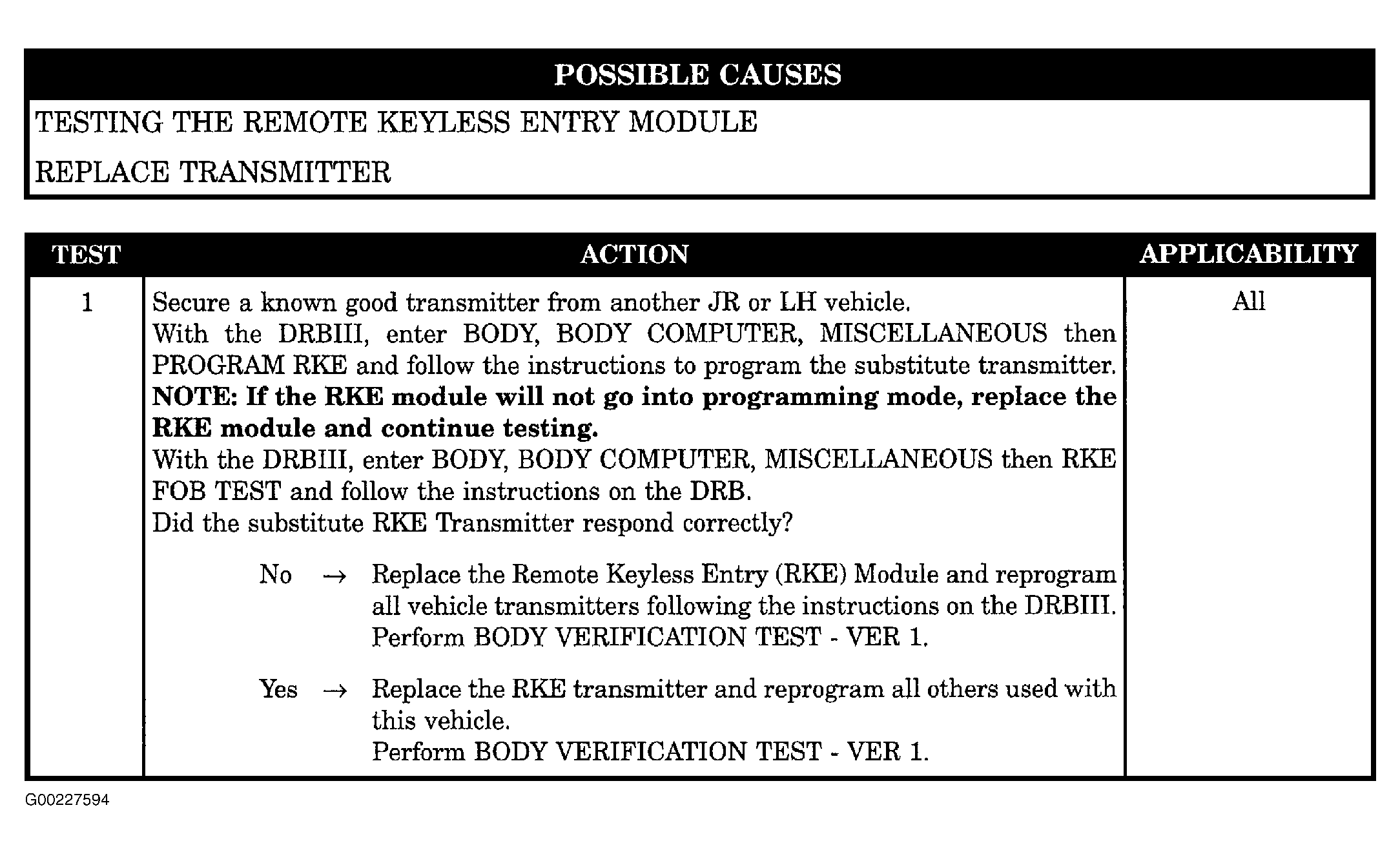

Fig 1: Remote Keyless Entry Problem

G00227594

Courtesy of CHRYSLER CORP.
