Courtesy Light Output Failure

For testing procedures, see Fig 1 .

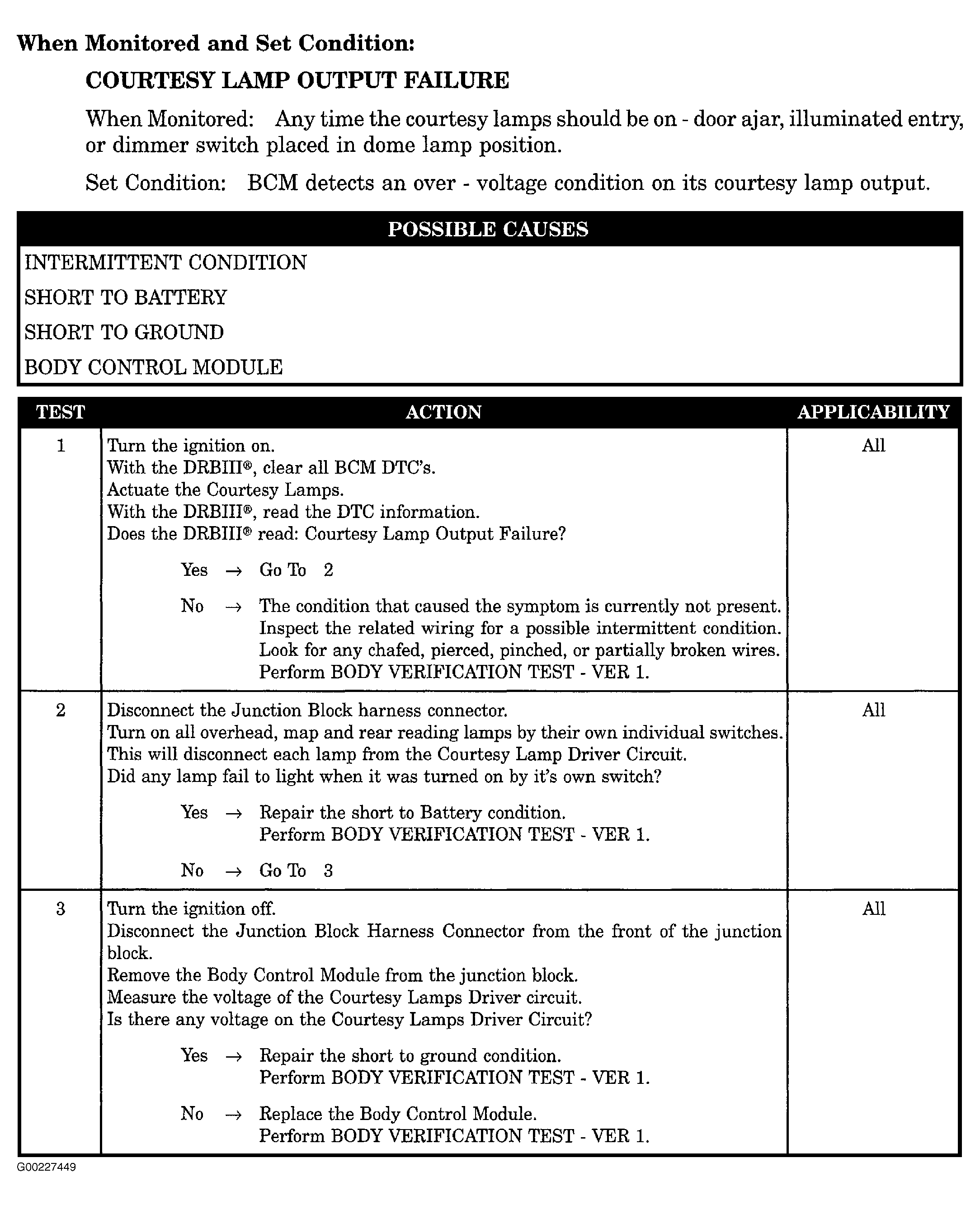

Fig 1: Courtesy Light Output Failure

G00227449

Courtesy of CHRYSLER CORP.
