Low Fuel Warning Indicator Not Operating Properly

For testing procedures, see Fig 1 .

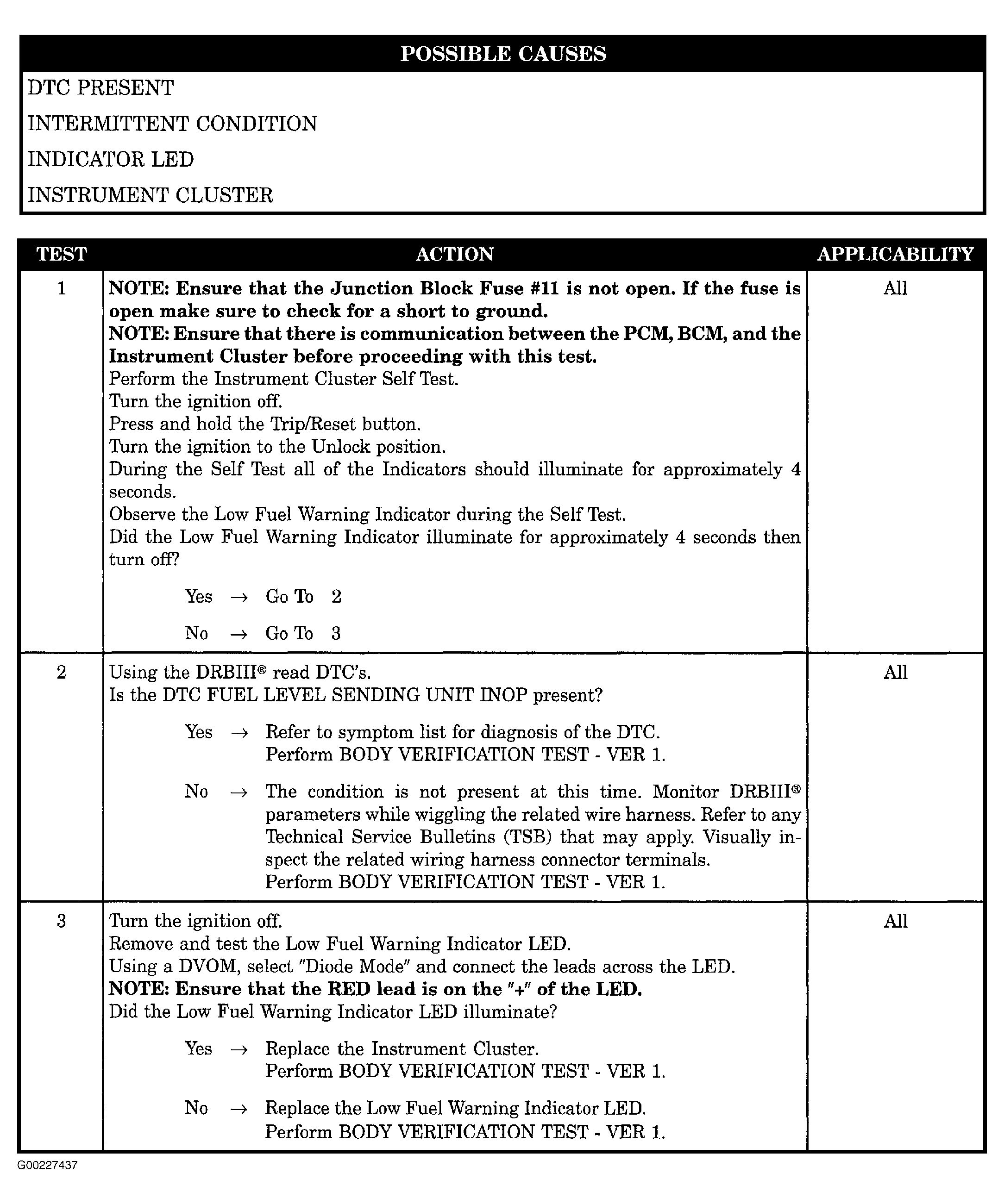

Fig 1: Low Fuel Warning Indicator Not Operating Properly

G00227437

Courtesy of CHRYSLER CORP.
