Fuel Level Sending Unit Failure

For testing procedures, see Fig 1 -Fig 3 .

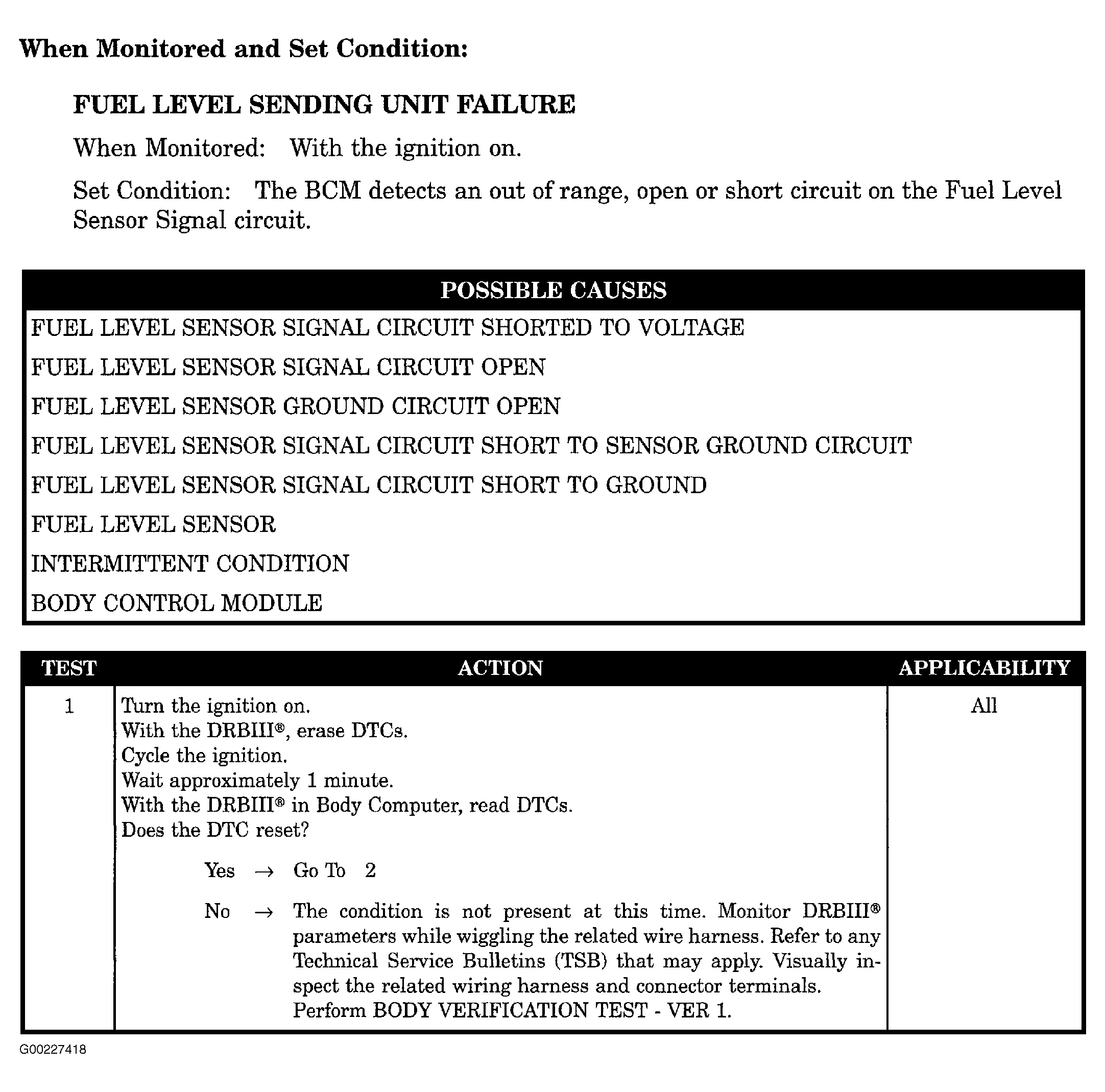

Fig 1: Fuel Level Sending Unit Failure - Step 1 (1 Of 3)
G00227418Courtesy of CHRYSLER CORP.

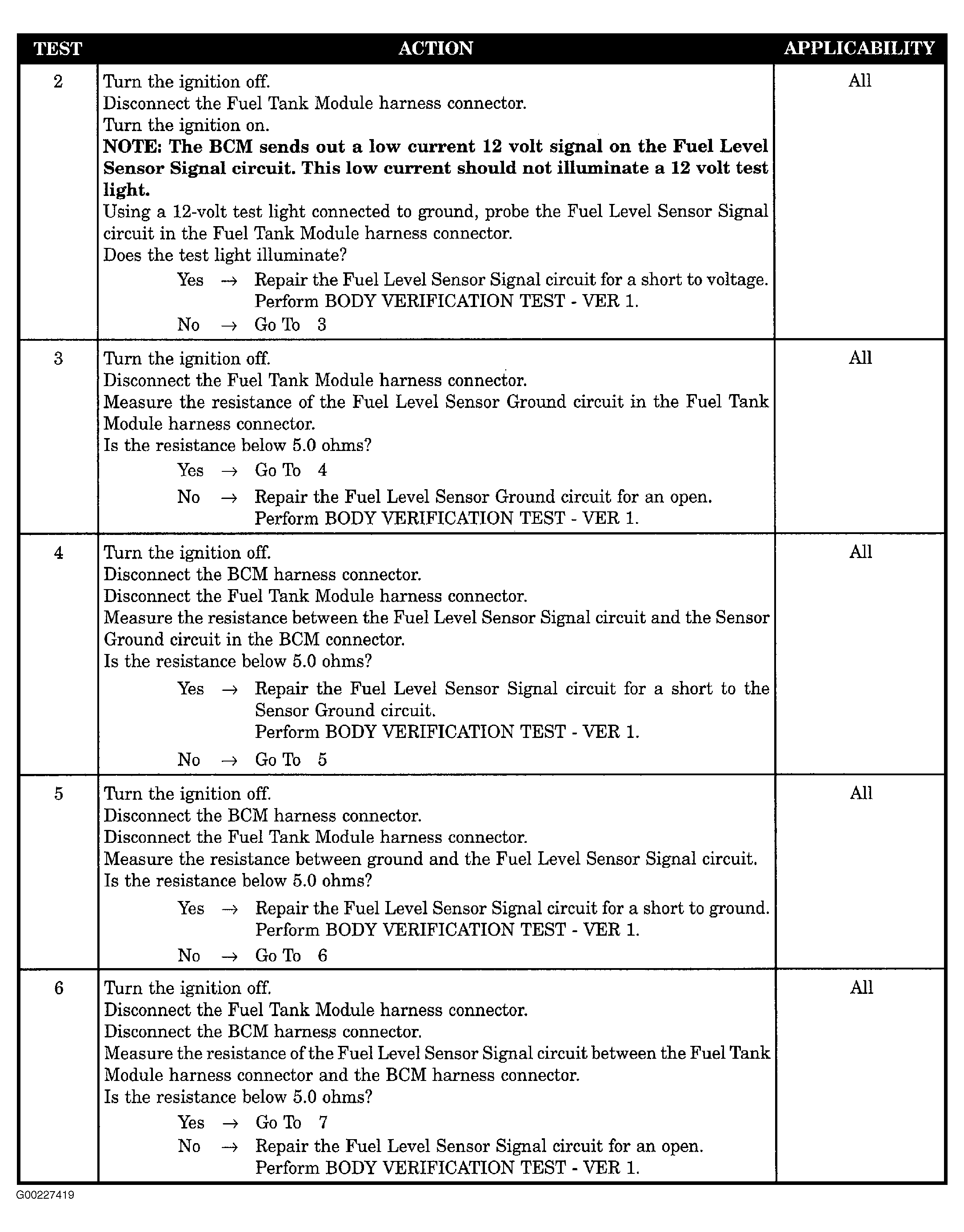

Fig 2: Fuel Level Sending Unit Failure - Steps 2-6 (2 Of 3)
G00227419Courtesy of CHRYSLER CORP.

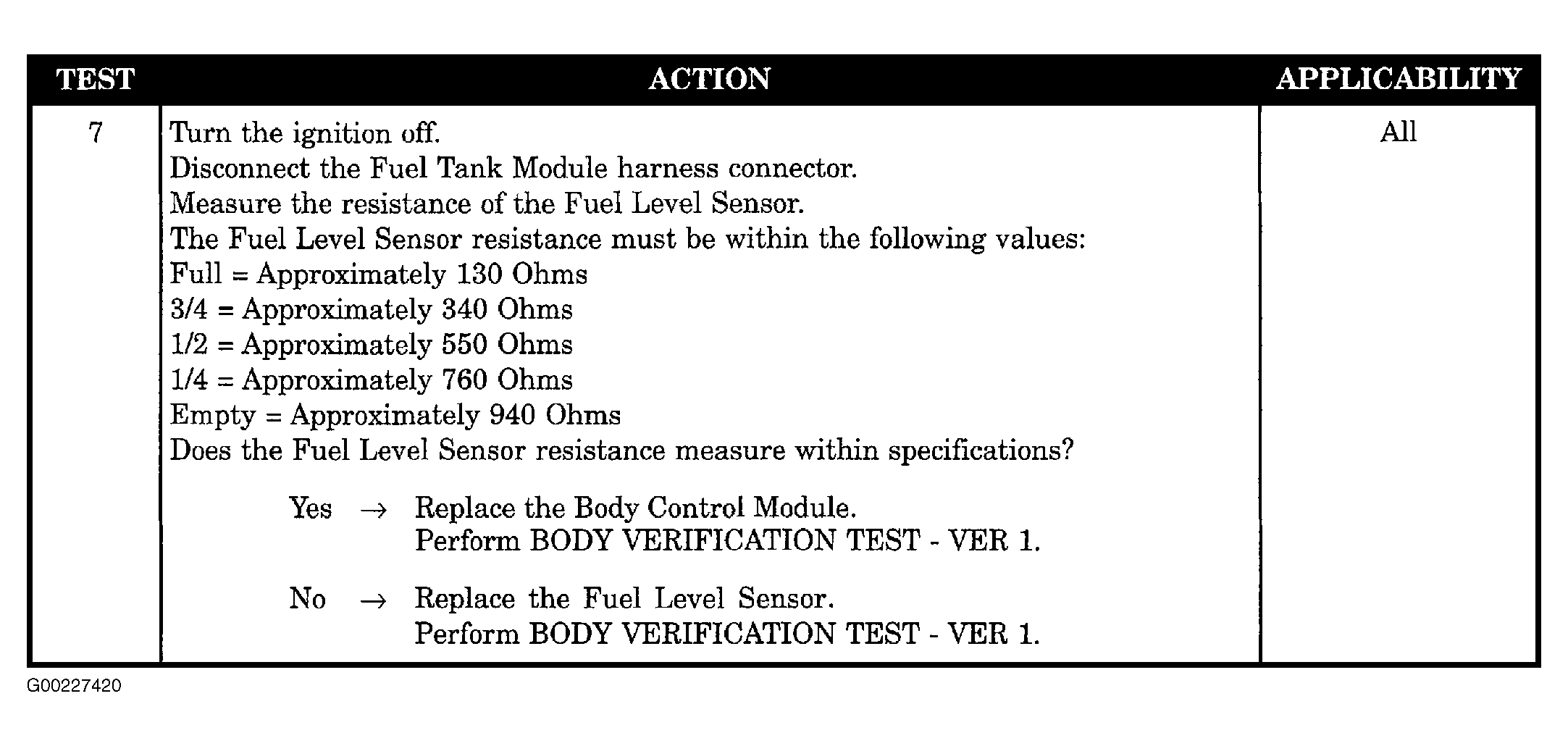

Fig 3: Fuel Level Sending Unit Failure - Step 7 (3 Of 3)
G00227420Courtesy of CHRYSLER CORP.
