ABS Light Circuit Open

For testing procedures, see Fig 1 and Fig 2 .

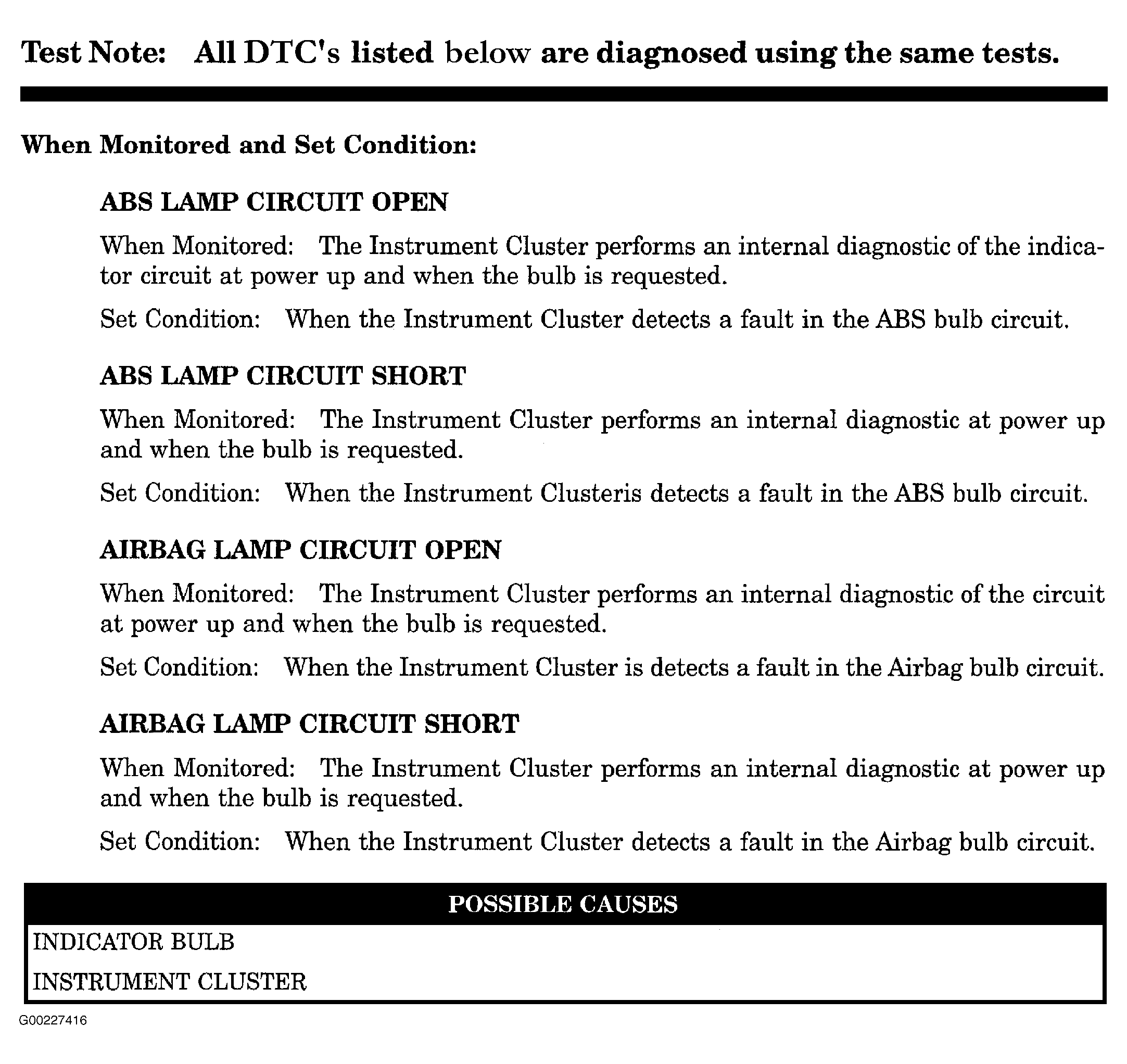

Fig 1: ABS Light Circuit Open (1 Of 2)
G00227416Courtesy of CHRYSLER CORP.

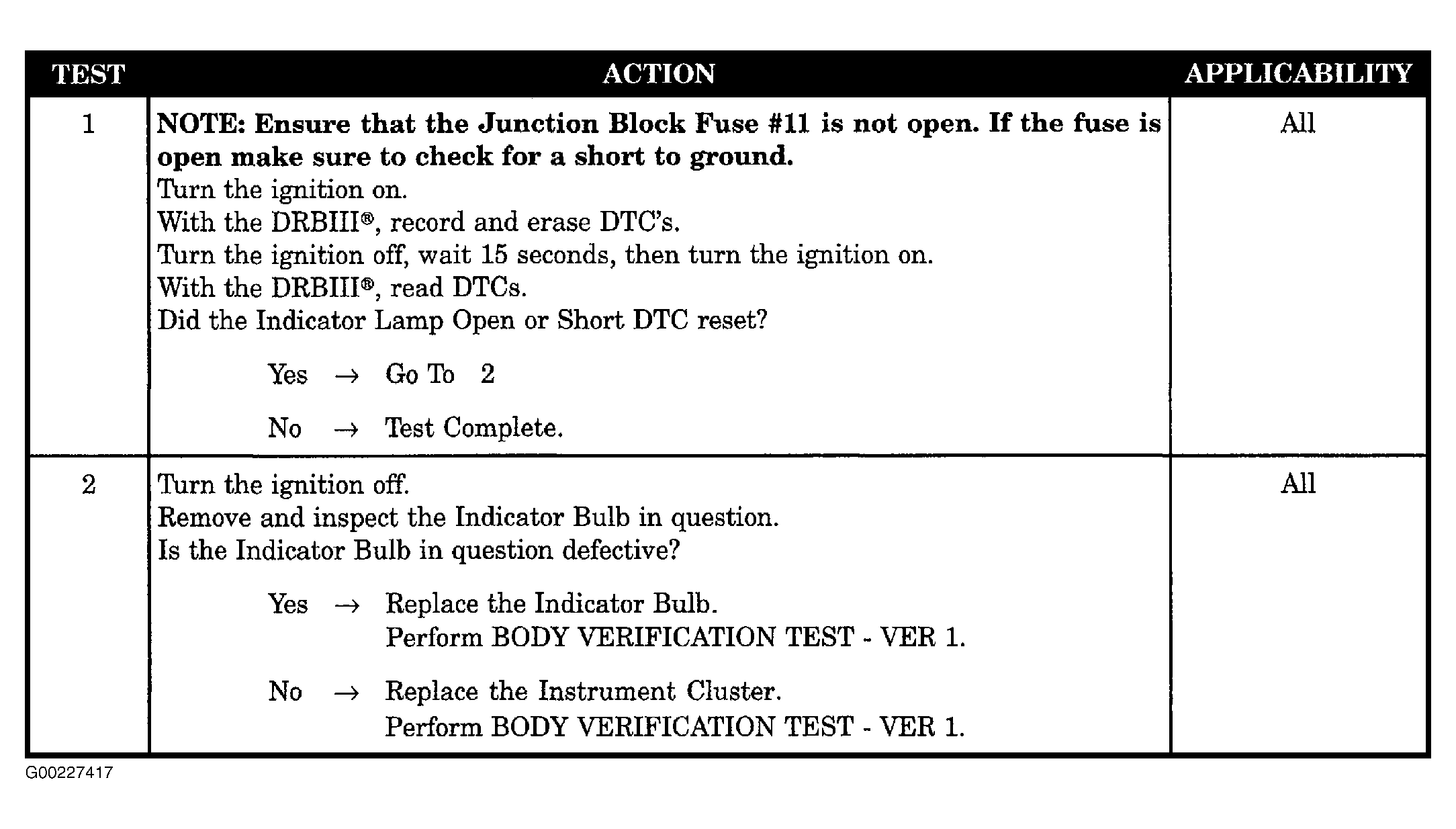

Fig 2: ABS Light Circuit Open - Steps 1 & 2 (2 Of 2)
G00227417Courtesy of CHRYSLER CORP.
