Outside Temperature Display Inaccurate Or Inoperative

For testing procedures, see Fig 1 .

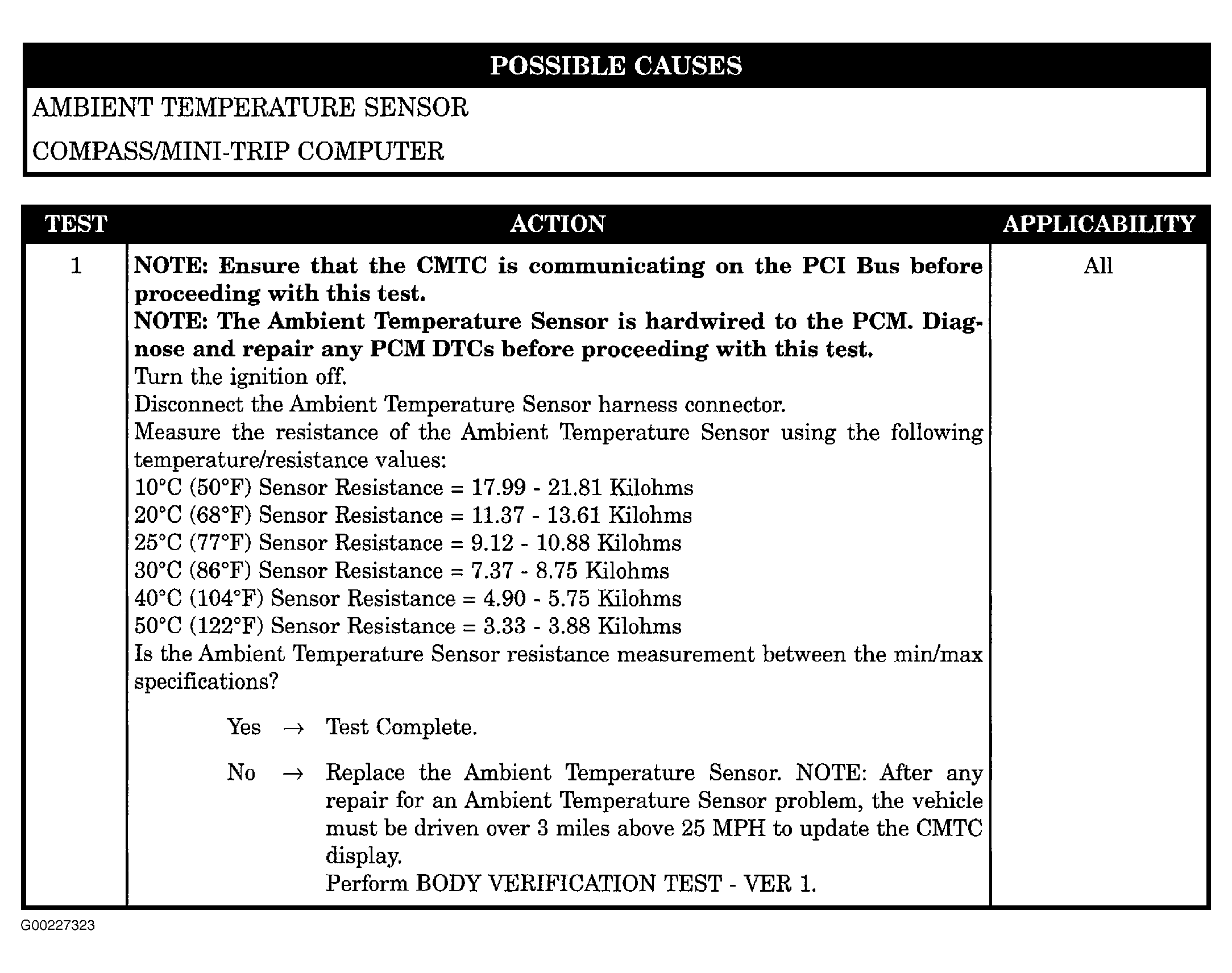

Fig 1: Outside Temperature Display Inaccurate Or Inoperative

G00227323

Courtesy of CHRYSLER CORP.
