Post Failure

For testing procedures, see Fig 1 .

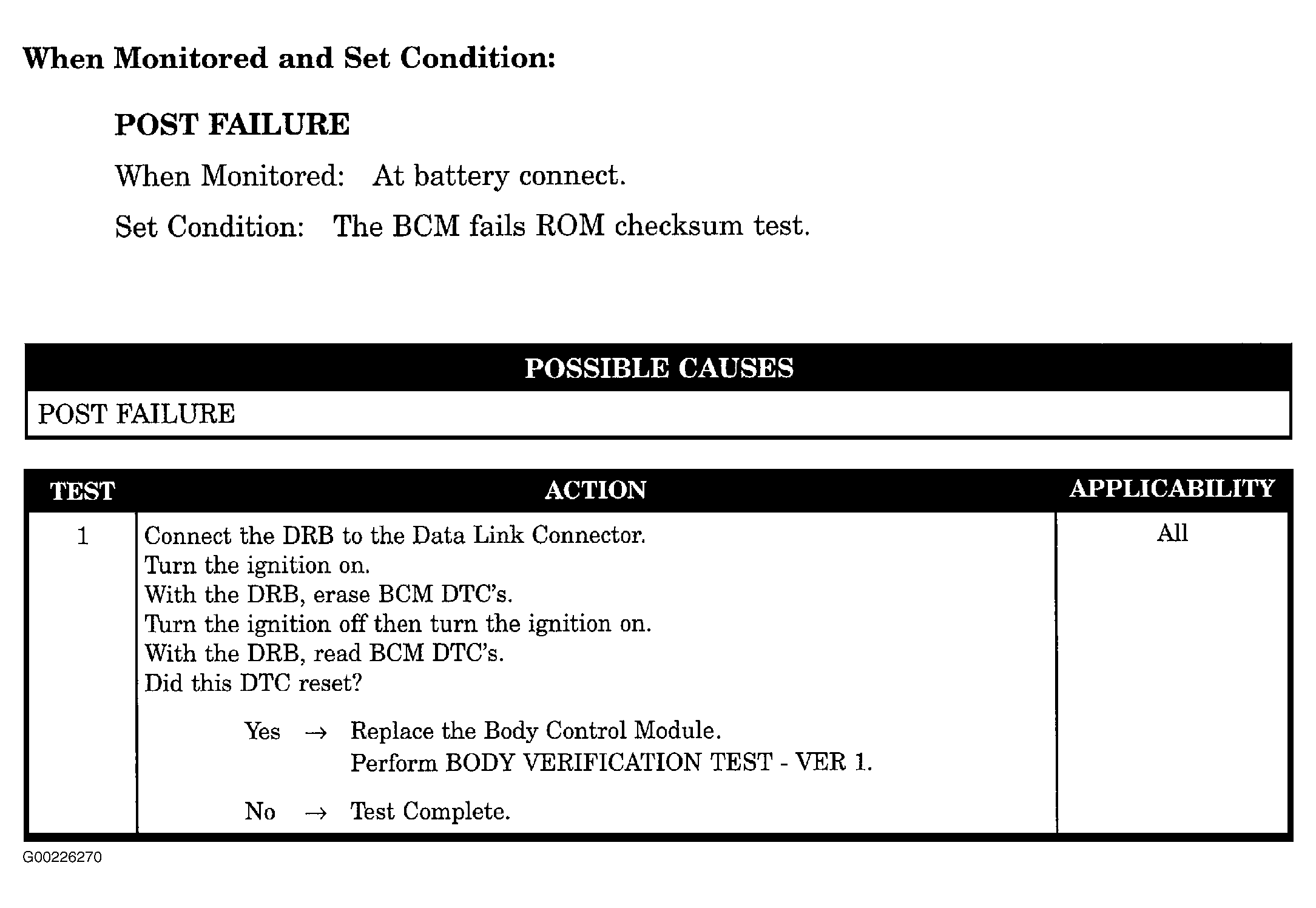

Fig 1: Post Failure

G00226270

Courtesy of CHRYSLER CORP.
